| Code | Name | Period | Specifications |
|---|---|---|---|
| 462B-009-01 | Brake Piping Control Front Piping | 2022 - 2022 |
BODY: 5DOOR
DRIVE: 4WD
|
No illustration for this section
The full parts list is available below

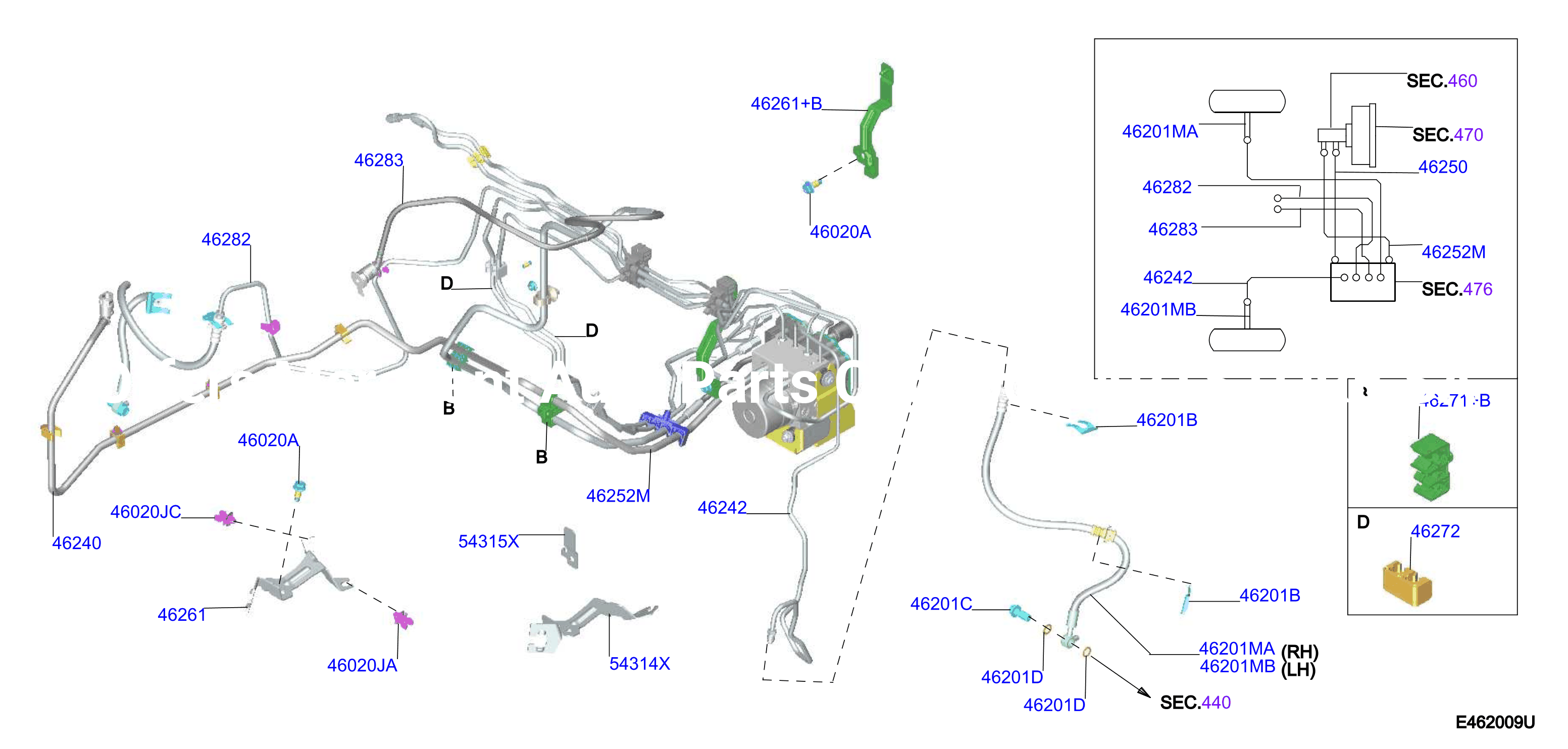

Parts in this diagram 21
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125A8031 | 46020A | BOLT | |||
| 462062J00A | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 462106UA0A | 46201MA | HOSE ASSY - BRAKE, FRONT | |||
| 462116UA0A | 46201MB | HOSE ASSY - BRAKE, FRONT | |||
| 46237A4600 | 46201D | GASKET - BRAKE HOSE | |||
| 462406UE2A | 46240 | TUBE ASSY - BRAKE, FRONT RH | |||
| 462426UE2A | 46242 | TUBE ASSY - BRAKE, FRONT LH | |||
| 462506UE2A | 46250 | TUBE ASSY - BRAKE, MASTER CYLINDER TO FRONT | |||
| 462526UE2A | 46252M | TUBE ASSY - BRAKE, MASTER CYLINDER TO REAR | |||
| 462616RA3A | 46261 | BRACKET - BRAKE TUBE |
