| Code | Name | Period | Specifications |
|---|---|---|---|

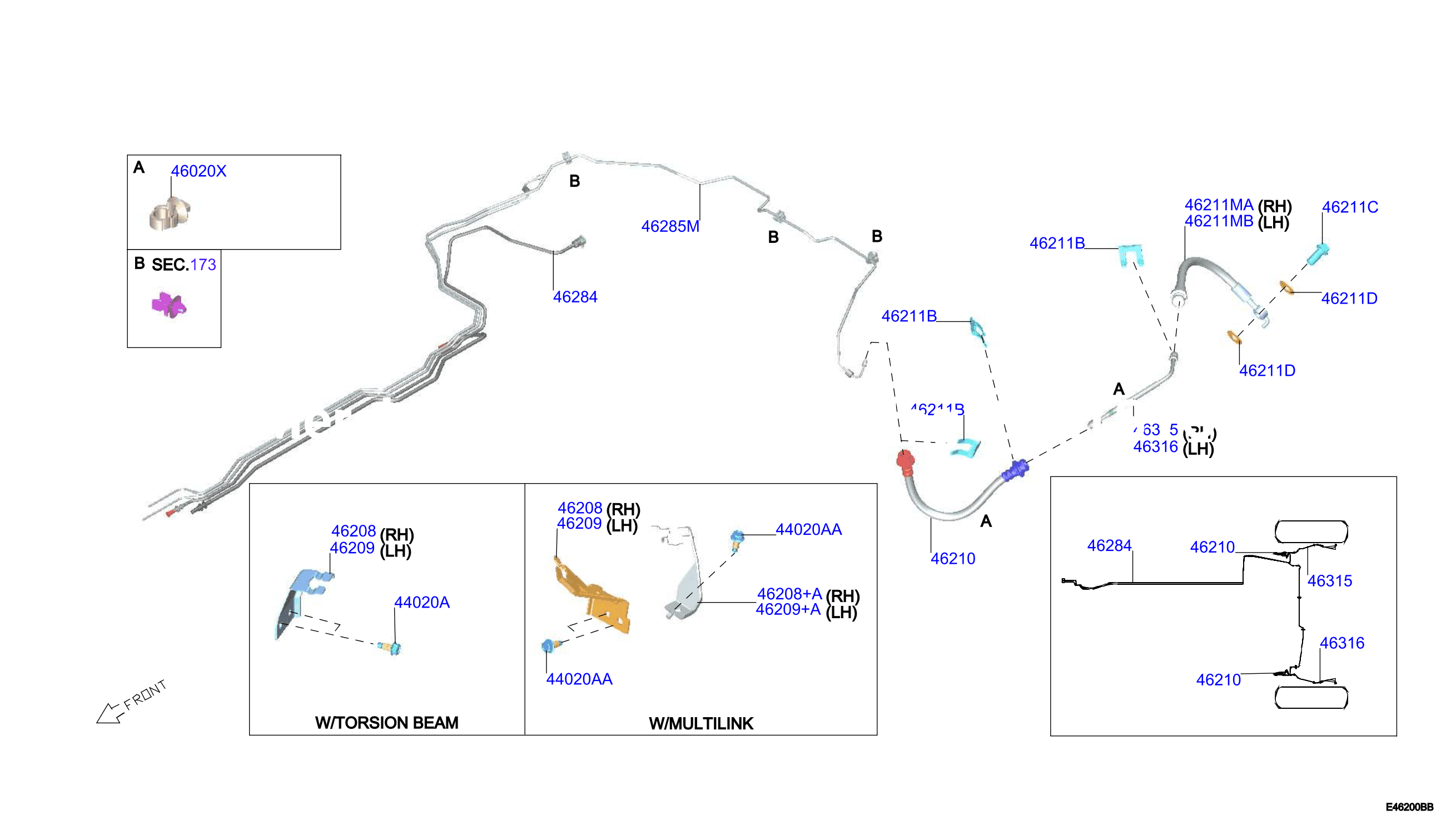

| 462B-003-01 | Brake Piping Control Rear Piping | 2024 - 2024 |
BODY: 5DOOR
DRIVE: 4WD
|
Parts in this diagram 22
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125A8031 | 44020A | BOLT | |||
| 01125A8041 | 44020AA | BOLT | |||
| 462062J00A | 46211B | SPRING - LOCK, BRAKE HOSE | |||
| 462086RS0A | 46208 | BRACKET - BRAKE HOSE, RH | |||
| 462086RS0B | 46208+A | BRACKET - BRAKE HOSE, RH | |||
| 462086RS0C | 46208+A | BRACKET - BRAKE HOSE, RH | |||
| 462096RS0A | 46209 | BRACKET - BRAKE HOSE, LH | |||
| 462096RS0B | 46209+A | BRACKET - BRAKE HOSE, LH | |||
| 462096RS0C | 46209+A | BRACKET - BRAKE HOSE, LH | |||
| 462106UA0C | 46211MA | HOSE ASSY - BRAKE, REAR | |||
| 462106UA0D | 46210 | HOSE ASSY - BRAKE, REAR | |||
| 462106UA3C | 46211MA | HOSE ASSY - BRAKE, REAR | |||
| 462106UA5D | 46210 | HOSE ASSY - BRAKE, REAR | |||
| 462116UA0C | 46211MB | HOSE ASSY - BRAKE, REAR | |||
| 462116UA3C | 46211MB | HOSE ASSY - BRAKE, REAR | |||
| 46237AV601 | 46211D | GASKET - BRAKE HOSE | |||
| 462717990A | 46020X | INSULATOR - TUBE | |||
| 462846UA1B | 46284 | TUBE ASSY - BRAKE, REAR | |||
| 462856UA1B | 46285M | TUBE ASSY - BRAKE, REAR | |||
| 463156UA0A | 46315 | TUBE ASSY - BRAKE REAR, RH | |||
| 463166UA0A | 46316 | TUBE ASSY - BRAKE REAR, LH | |||
| 463560E00A | 46211C | BOLT - UNION, REAR BRAKE HOSE |
