| Code | Name | Period | Specifications |
|---|---|---|---|

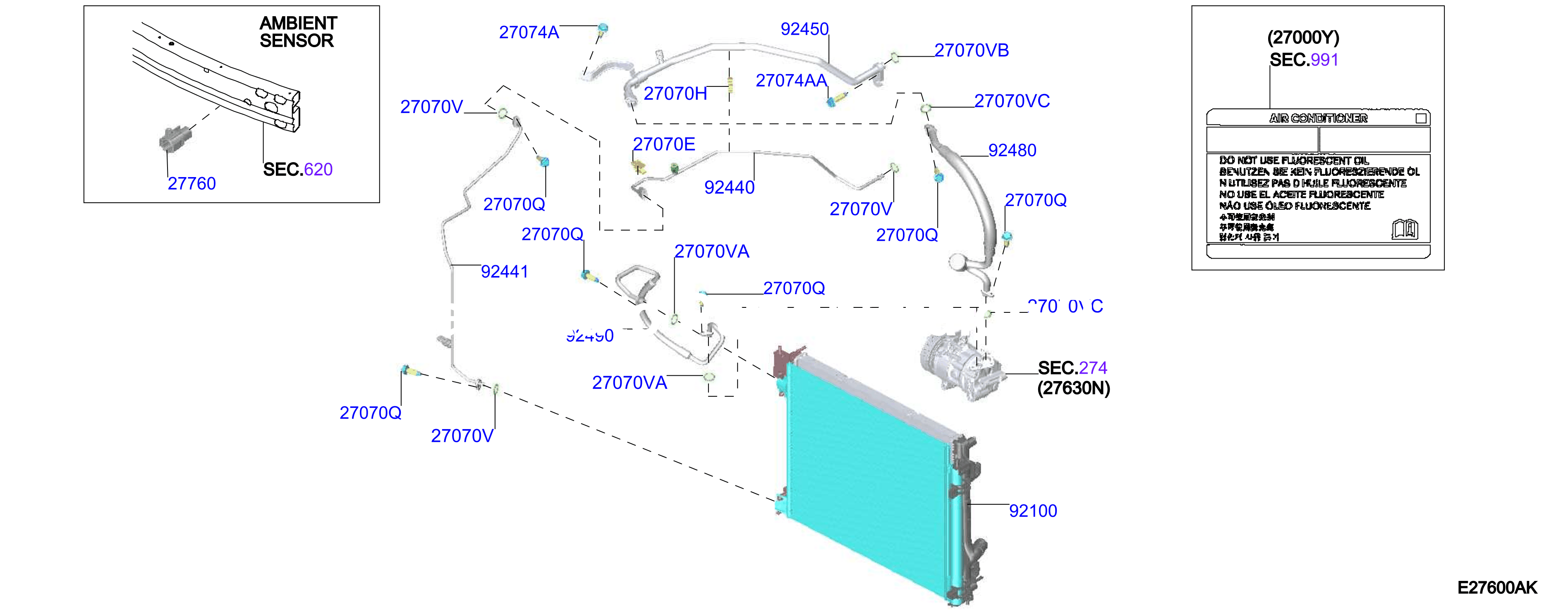

| 276B-002-01 | Condenser Liquid Tank Piping Mr15 E Pwr Hfc | 2022 - 2022 |
AREA: GOMB
BODY: 5DOOR
ENGINE: KR15
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 01125A6021 | 27074A | BOLT | ||
| 01125A6051 | 27070Q | BOLT | ||
| 01125A6081 | 27074AA | BOLT | ||
| 277226RF0A | 27760 | SENSOR ASSY - AMBIENT | ||
| 46271EW00A | 27070E | CLIP | ||
| 921006UM0A | 92100 | CONDENSER & LIQUID TANK ASSY | ||
| 924406UB3A | 92440 | PIPE ASSY - FRONT COOLER, HIGH | ||
| 924406UM0C | 92440 | PIPE ASSY - FRONT COOLER, HIGH | ||
| 924416UB3A | 92441 | PIPE - FRONT COOLER, HIGH A | ||
| 924416UM1C | 92441 | PIPE - FRONT COOLER, HIGH A | ||
| 924506UB3A | 92450 | PIPE - FRONT COOLER, LOW | ||
| 924506UM1A | 92450 | PIPE - FRONT COOLER, LOW | ||
| 924506UM1B | 92450 | PIPE - FRONT COOLER, LOW | ||
| 92471N823A | 27070V | SEAL - O RING | ||
| 92472N823A | 27070VA | SEAL - O RING | ||
| 92473N823A | 27070VB | SEAL - O RING | ||
| 92474N823A | 27070VC | SEAL - O RING | ||
| 924806UB0A | 92480 | HOSE - FLEXIBLE, LOW | ||
| 924806UM0A | 92480 | HOSE - FLEXIBLE, LOW | ||
| 924806UM0D | 92480 | HOSE - FLEXIBLE, LOW | ||
| 924906UB3A | 92490 | HOSE - FLEXIBLE, HIGH | ||
| 924906UM0A | 92490 | HOSE - FLEXIBLE, HIGH | ||
| 924906UM0D | 92490 | HOSE - FLEXIBLE, HIGH | ||
| 9255164Y10 | 27070H | CLAMP |
