| Code | Name | Period | Specifications |
|---|---|---|---|

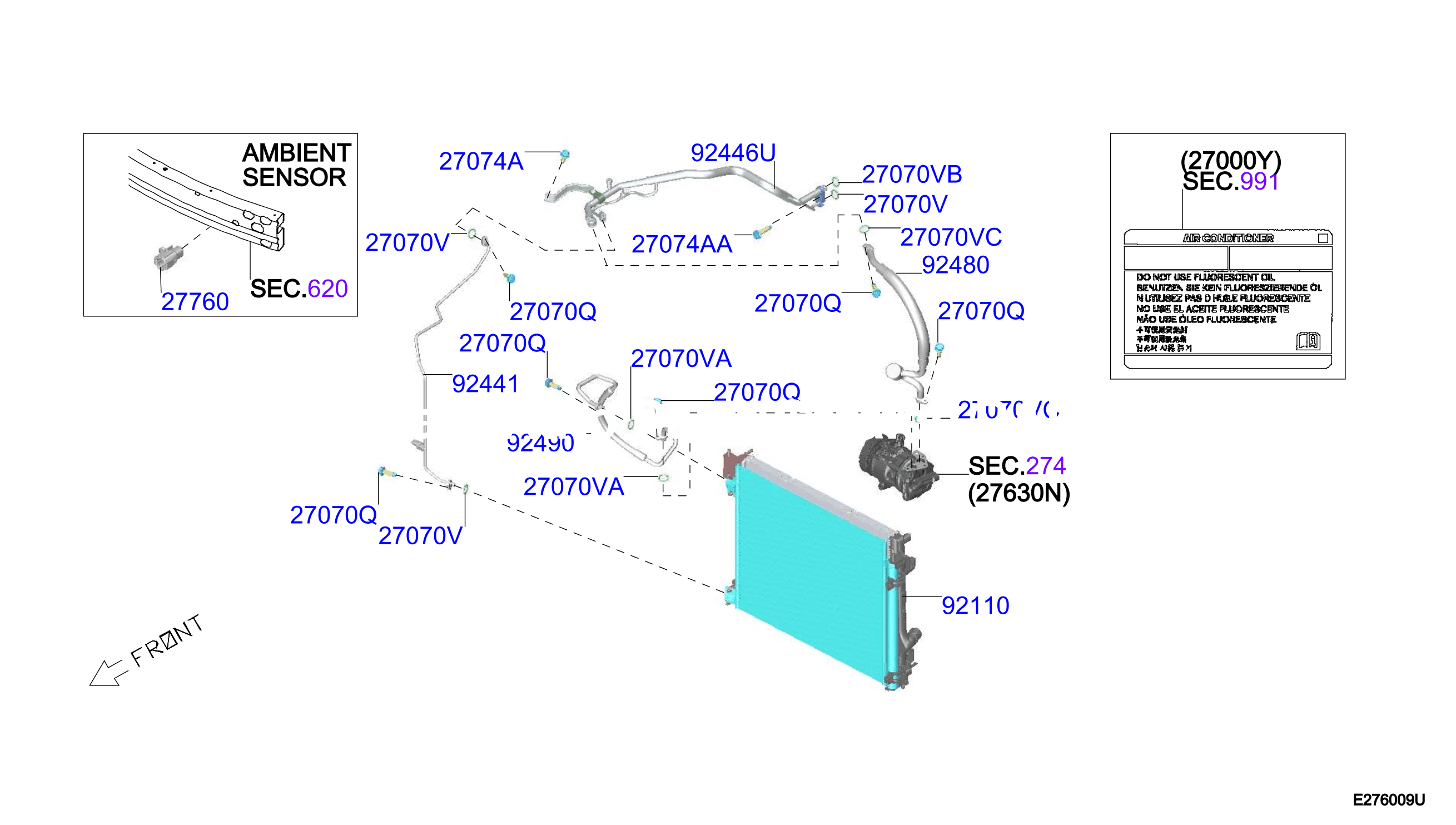

| 276A-010-01 | Condenser Liquid Tank Piping W / Ihx Tky | 2021 - 2022 |
AREA: TKY
BODY: 5DOOR
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 01125A6021 | 27074A | BOLT | ||
| 01125A6051 | 27070Q | BOLT | ||
| 01125A6081 | 27074AA | BOLT | ||
| 277226RF0A | 27760 | SENSOR ASSY - AMBIENT | ||
| 9211000Q0E | 92110 | CONDENSER ASSY - AIR CONDITIONER | ||
| 924416UB0A | 92441 | PIPE - FRONT COOLER, HIGH A | ||
| 924466UB0A | 92446U | HEAT EXCHANGER - INTERNAL | ||
| 92471N823A | 27070V | SEAL - O RING | ||
| 92472N823A | 27070VA | SEAL - O RING | ||
| 92473N823A | 27070VB | SEAL - O RING | ||
| 92474N823A | 27070VC | SEAL - O RING | ||
| 924806UB0A | 92480 | HOSE - FLEXIBLE, LOW | ||
| 924906UB0A | 92490 | HOSE - FLEXIBLE, HIGH |
