| Code | Name | Period | Specifications |
|---|---|---|---|

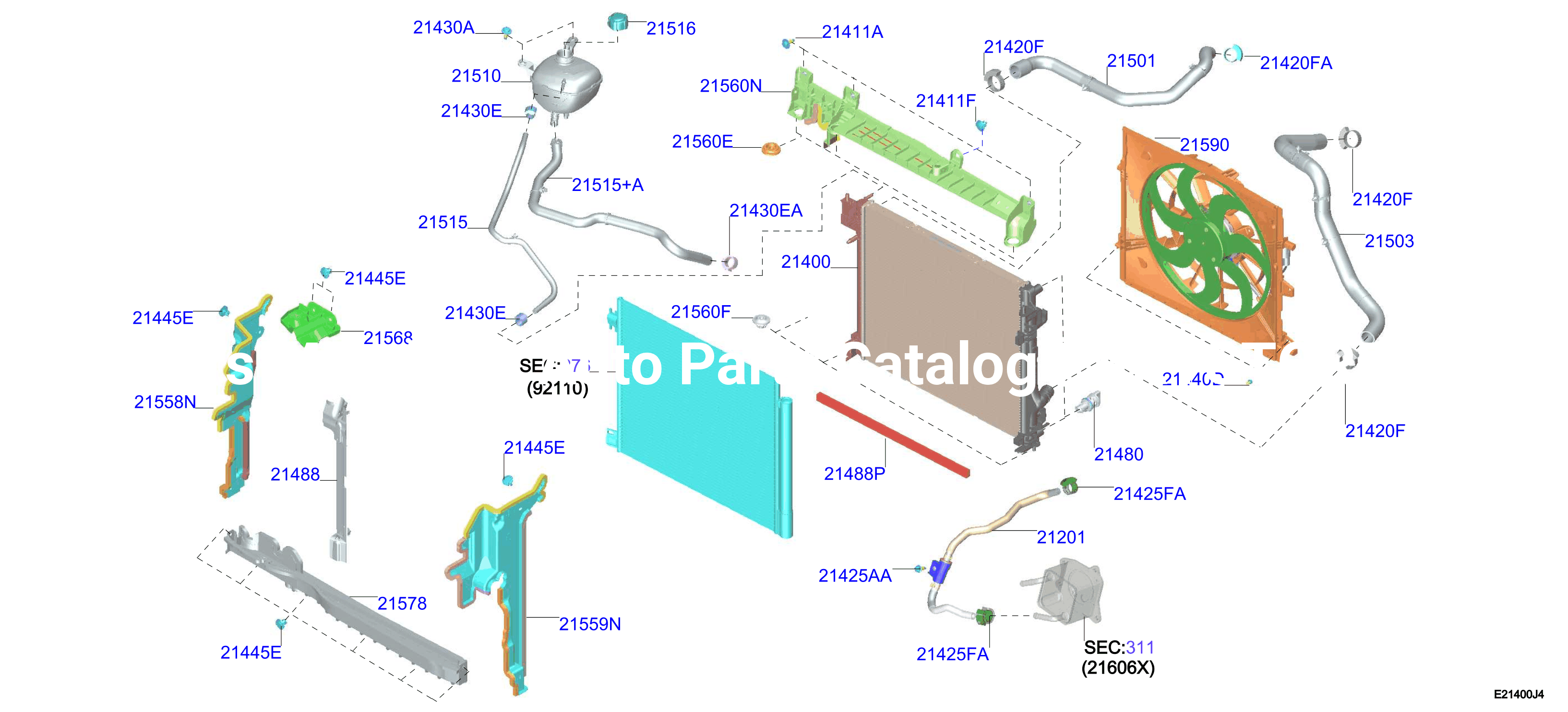

| 214B-004-01 | Radiator Shroud Inverter Cooling Radiator | 2022 - 2024 |
ENGINE: HR13
TRANSMISSION: 6MT
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 01121A6031 | 21411A | BOLT | ||
| 01125A6021 | 21425AA | BOLT | ||
| 0145600451 | 21440D | SCREW | ||
| 0155305933 | 21411F | CLIP | ||
| 0155800741 | 21420FA | CLAMP | ||
| 1643956S0A | 21430E | CLAMP | ||
| 164397S02A | 21425FA | CLAMP | ||
| 212006UB0A | 21201 | SENSOR ASSY - THERMOMETER | ||
| 214106UB0B | 21400 | RADIATOR ASSY | ||
| 21410HV70A | 21400 | RADIATOR ASSY | ||
| 21430AX30A | 21516 | CAP - RESERVOIR TANK | ||
| 214404EB0A | 21480 | COCK - WATER DRAIN | ||
| 214816UB1A | 21590 | MOTOR & FAN ASSY - W / SHROUD | ||
| 214976UB0A | 21488P | SEAL - RADIATOR, LOWER | ||
| 214976UM0A | 21488P | SEAL - RADIATOR, LOWER | ||
| 21498HV70A | 21488 | SEAL - RADIATOR SIDE | ||
| 215016UB3A | 21501 | HOSE - RADIATOR, UPPER | ||
| 215016UB5A | 21501 | HOSE - RADIATOR, UPPER | ||
| 21506AX300 | 21560E | MOUNTING - RUBBER, RADIATOR UPPER | ||
| 215074EB0A | 21560F | MOUNTING - RUBBER, RADIATOR LOWER | ||
| 215147990B | 21420F | CLAMP | ||
| 215306UB3A | 21503 | HOSE - RADIATOR, LOWER | ||
| 215306UB5A | 21503 | HOSE - RADIATOR, LOWER | ||
| 215426UB0A | 21560N | BRACKET - RADIATOR MOUNTING, UPPER | ||
| 215426UB0B | 21560N | BRACKET - RADIATOR MOUNTING, UPPER | ||
| 21542HN20A | 21560N | BRACKET - RADIATOR MOUNTING, UPPER | ||
| 215586UB0A | 21558N | AIR GUIDE - RADIATOR SIDE, RH | ||
| 21558HN20A | 21558N | AIR GUIDE - RADIATOR SIDE, RH | ||
| 215596UB0A | 21559N | AIR GUIDE - RADIATOR SIDE, LH | ||
| 21559HN20A | 21559N | AIR GUIDE - RADIATOR SIDE, LH | ||
| 215686UB0A | 21568 | BAFFLE PLATE - RADIATOR, RH | ||
| 215686UB1A | 21568 | BAFFLE PLATE - RADIATOR, RH | ||
| 21568HN20A | 21568 | BAFFLE PLATE - RADIATOR, RH | ||
| 215796UB0A | 21578 | AIR GUIDE - RADIATOR | ||
| 217106RN0A | 21510 | TANK ASSY - RADIATOR RESERVOIR | ||
| 217416UB0A | 21515 | HOSE - RESERVOIR TANK | ||
| 217426UB0B | 21515+A | HOSE - RESERVOIR TANK | ||
| 925277990B | 21430EA | CLAMP |
