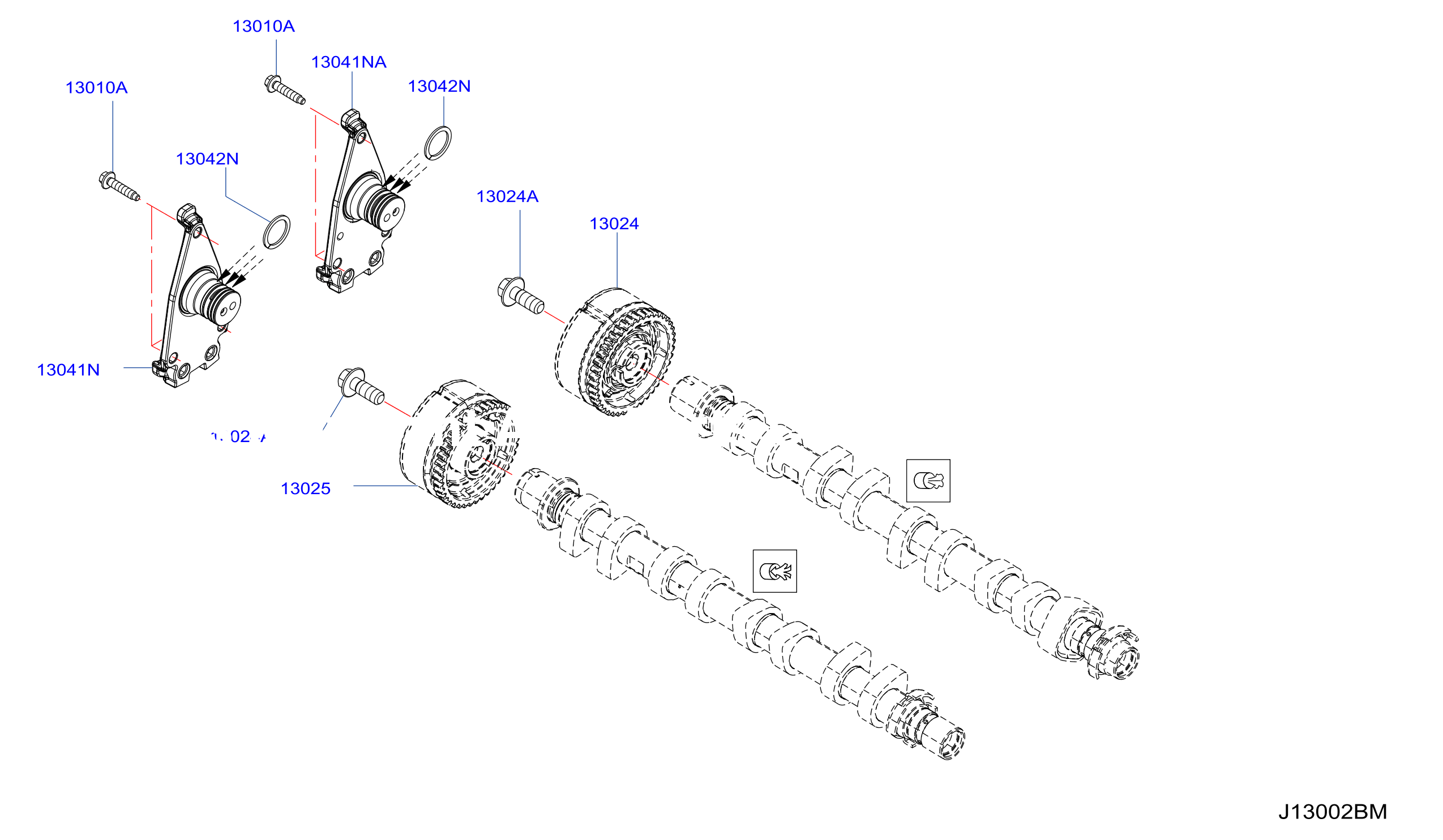

Camshaft Valve Mechanism Sprocket Camshaft
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 130R-003-01 | Camshaft Valve Mechanism Sprocket Camshaft | 2015 - 2019 |
ENGINE: HRA2DDT
|
No illustration for this section
The full parts list is available below
Parts in this diagram 8
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 1231500Q1G | 13010A | BOLT | |||
| 130121KC0A | 13024A | BOLT - SPROCKET, CAMSHAFT | |||
| 1302500Q0D | 13025 | SPROCKET - CAMSHAFT, INTAKE | |||
| 1302500Q0E | 13024 | SPROCKET - CAMSHAFT | |||
| 1304100Q0A | 13041NA | COVER ASSY - CAM SPROCKET, VTC | |||
| 1304100Q0B | 13041N | COVER ASSY - CAM SPROCKET, VTC | |||
| 130423HD0A | 13042N | SEAL - OIL, CAMSHAFT | |||
| 2107800Q0E | 13010A | BOLT |
