| Code | Name | Period | Specifications |
|---|---|---|---|

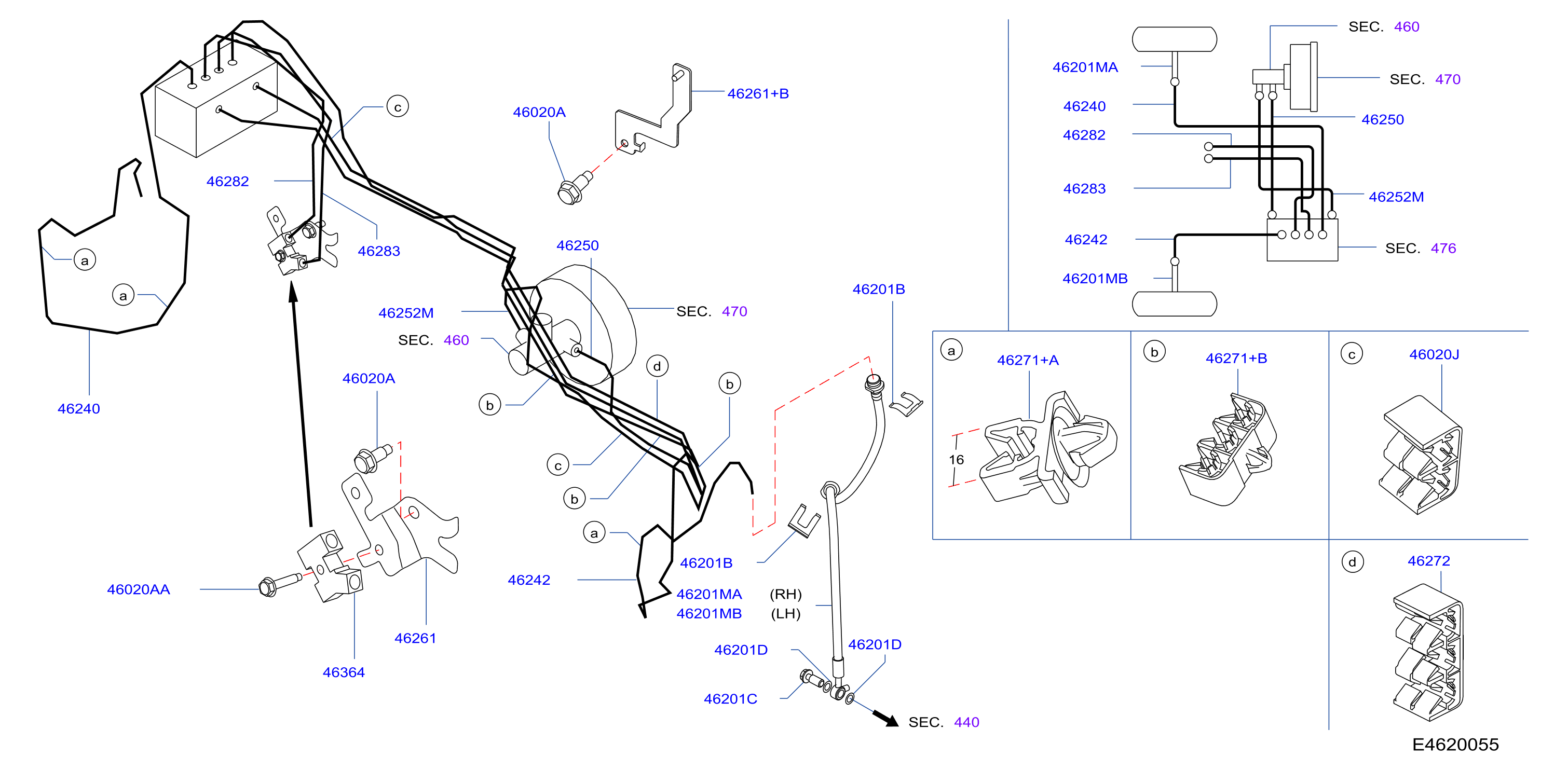

| 462A-002-01 | Brake Piping Control Piping | 2014 - 2017 |
BODY: 5HB
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 01125N6041 | 46020AA | BOLT | ||
| 01125N8021 | 46020A | BOLT | ||
| 462062J00A | 46201B | SPRING - LOCK, BRAKE HOSE | ||
| 462104EA0A | 46201MA | HOSE ASSY - BRAKE, FRONT | ||
| 462104EA0B | 46201MB | HOSE ASSY - BRAKE, FRONT | ||
| 462104EA2A | 46201MA | HOSE ASSY - BRAKE, FRONT | ||
| 462104EA2B | 46201MB | HOSE ASSY - BRAKE, FRONT | ||
| 46237A4600 | 46201D | GASKET - BRAKE HOSE | ||
| 462404EH0A | 46240 | TUBE ASSY - BRAKE, FRONT RH | ||
| 462424EH0A | 46242 | TUBE ASSY - BRAKE, FRONT LH | ||
| 462504EH0A | 46250 | TUBE ASSY - BRAKE, MASTER CYLINDER TO FRONT | ||
| 462524EH0A | 46252M | TUBE ASSY - BRAKE, MASTER CYLINDER TO REAR | ||
| 462614CL1A | 46261+B | BRACKET - BRAKE TUBE | ||
| 462714BA0A | 46271+B | CLIP - TUBE, BRAKE | ||
| 46271JG00A | 46271+A | CLIP - TUBE, BRAKE | ||
| 46272JG00B | 46272 | CLIP - TUBE, BRAKE | ||
| 46272JG41B | 46020J | CLIP | ||
| 462824EH0A | 46282 | TUBE ASSY - BRAKE, REAR | ||
| 462834EH0A | 46283 | TUBE ASSY - BRAKE, REAR | ||
| 463560E00A | 46201C | BOLT - UNION, FRONT BRAKE HOSE | ||
| 4636470J00 | 46364 | CONNECTOR - BRAKE TUBE |
