| Code | Name | Period | Specifications |
|---|---|---|---|

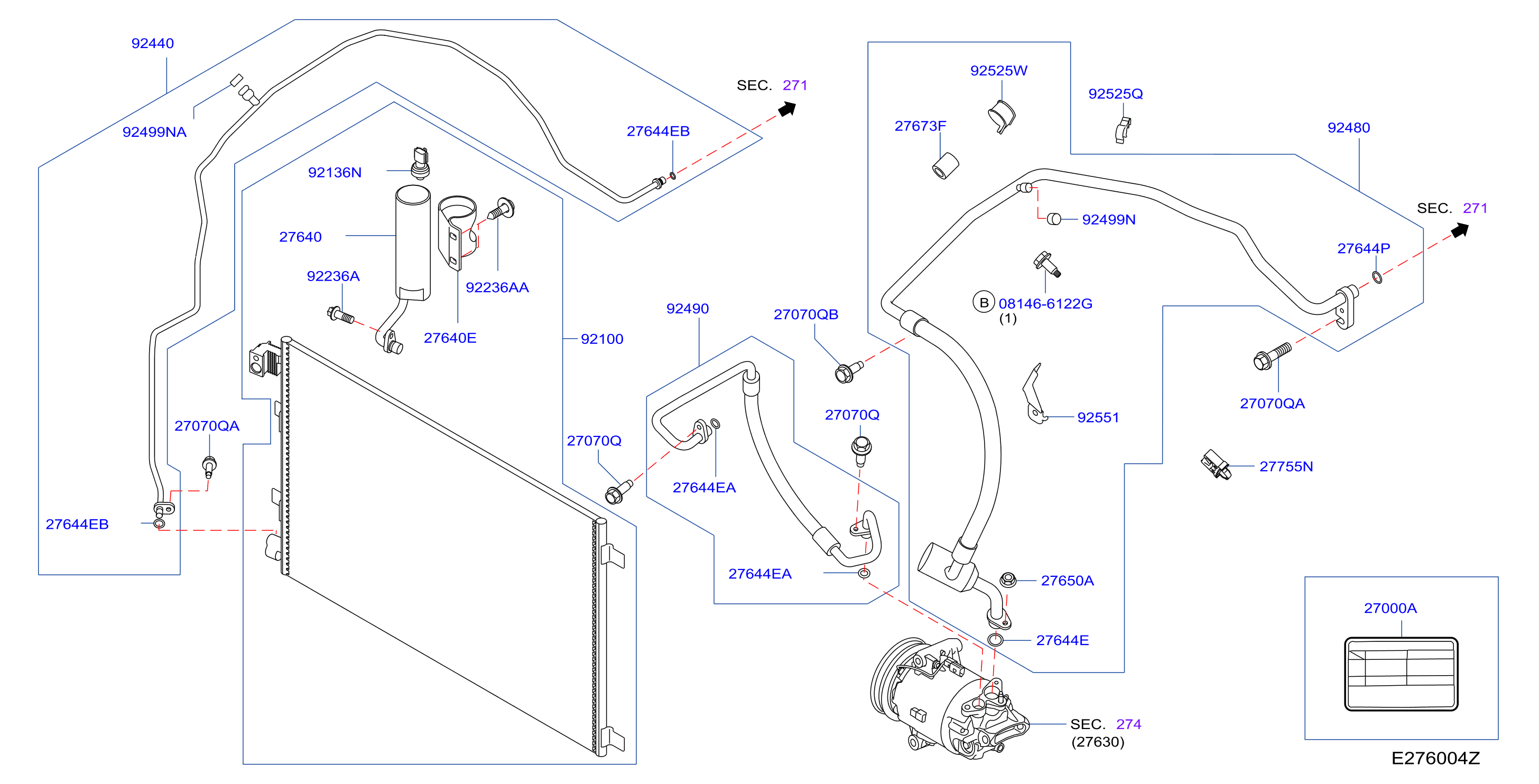

| 276A-002-01 | Condenser Liquid Tank Piping Petrol | 2010 - ... |
BODY: 5H/B
ENGINE: HR16DE
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 01125N6011 | 27070QB | BOLT | ||
| 01125N6021 | 27070Q | BOLT | ||
| 01125N6031 | 27070Q | BOLT | ||
| 01225N6011 | 27650A | NUT | ||
| 081466122G | 081466122G | BOLT - HEX | ||
| 2709079923 | 27000A | LABEL - AIR CONDITIONER | ||
| 2709079924 | 27000A | LABEL - AIR CONDITIONER | ||
| 2709079964 | 27000A | LABEL - AIR CONDITIONER | ||
| 4627160U05 | 27755N | INSULATOR | ||
| 92100JD000 | 92100 | CONDENSER & LIQUID TANK ASSY | ||
| 92100JD00A | 92100 | CONDENSER & LIQUID TANK ASSY | ||
| 92100JD200 | 92100 | CONDENSER & LIQUID TANK ASSY | ||
| 92100JD20A | 92100 | CONDENSER & LIQUID TANK ASSY | ||
| 92131JD00A | 27640 | TANK ASSY - LIQUID | ||
| 92131JD20A | 27640 | TANK ASSY - LIQUID | ||
| 92135JD00A | 27640E | BRACKET - LIQUID TANK | ||
| 92135JD20A | 27640E | BRACKET - LIQUID TANK | ||
| 92136JD20A | 92136N | SENSOR ASSY - PRESSURE | ||
| 92440JD010 | 92440 | PIPE ASSY - FRONT COOLER, HIGH | ||
| 92440JD01A | 92440 | PIPE ASSY - FRONT COOLER, HIGH | ||
| 92471N8210 | 27644EB | SEAL - O RING | ||
| 92472N8210 | 27644EA | SEAL - O RING | ||
| 92473N8210 | 27644P | SEAL - O RING | ||
| 92474N8210 | 27644E | SEAL - O RING | ||
| 92480JD010 | 92480 | HOSE - FLEXIBLE, LOW | ||
| 92480JD05A | 92480 | HOSE - FLEXIBLE, LOW | ||
| 92480JD23A | 92480 | HOSE - FLEXIBLE, LOW | ||
| 92490JD000 | 92490 | HOSE - FLEXIBLE, HIGH | ||
| 92490JD20A | 92490 | HOSE - FLEXIBLE, HIGH | ||
| 9249989920 | 92499NA | CAP - CHARGE VALVE | ||
| 9249989921 | 92499N | CAP - CHARGE VALVE | ||
| 924999U10A | 92499NA | CAP - CHARGE VALVE | ||
| 924999U11A | 92499N | CAP - CHARGE VALVE | ||
| 9255164Y01 | 92525Q | CLIP | ||
| 9255164Y10 | 92525Q | CLIP | ||
| 92551JD00A | 92551 | BRACKET - PIPE | ||
| 925556P000 | 92525W | CLIP | ||
| 925572J000 | 27673F | PROTECTOR - CLAMP TUBE | ||
| 92557JD22A | 27673F | PROTECTOR - CLAMP TUBE | ||
| 92796JD00A | 92236A | BOLT | ||
| 92796JD20A | 92236AA | BOLT |
