| Code | Name | Period | Specifications |
|---|---|---|---|

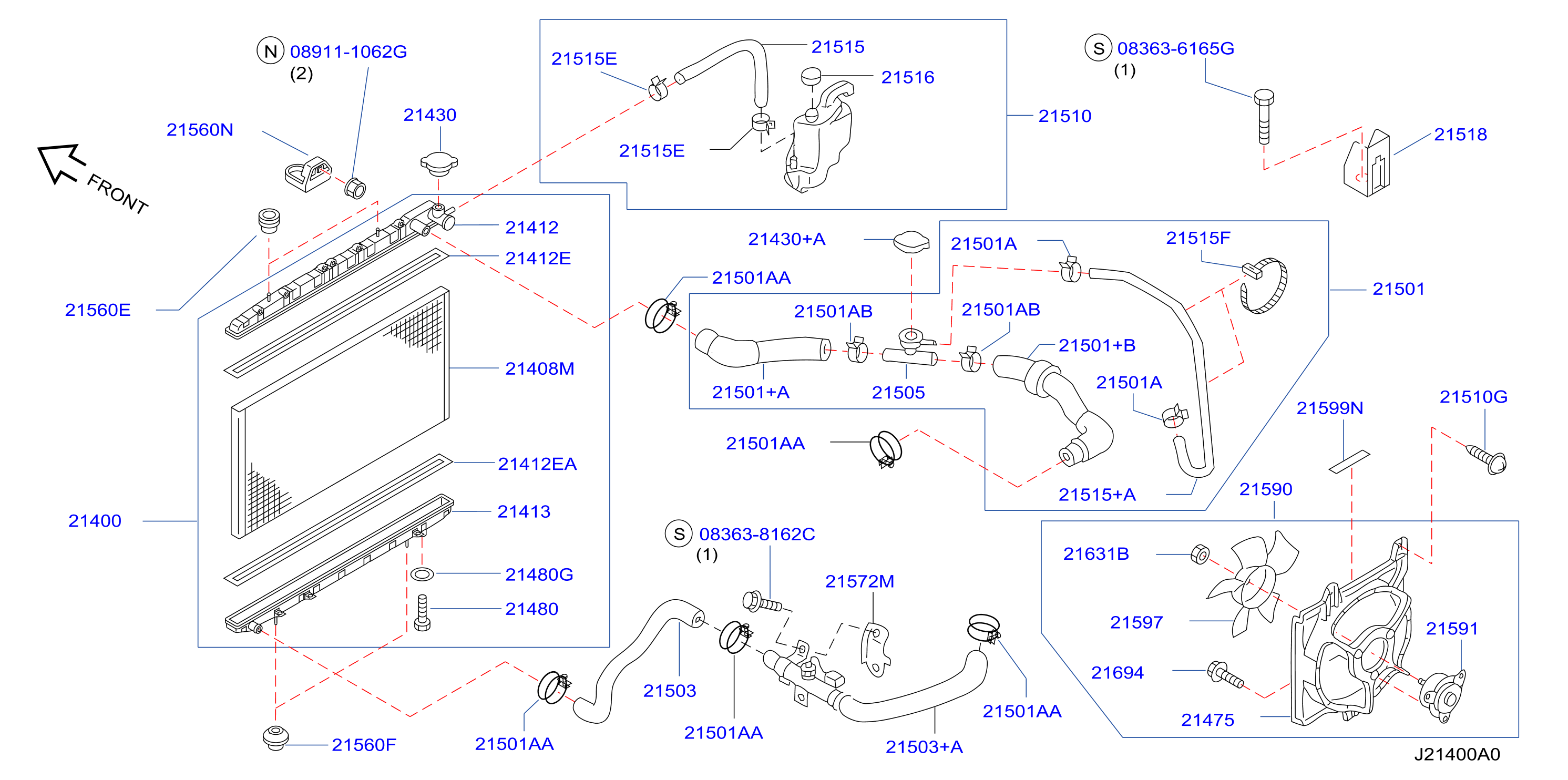

| 214B-001-01 | Radiator Shroud Inverter Cooling Radiator | 1999 - ... |
ENGINE: CD20
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 0145600621 | 21510G | SCREW | ||
| 0155200043 | 21515F | CLIP | ||
| 0155800181 | 21501A | CLAMP - HOSE | ||
| 0155800261 | 21501AA | CLAMP - HOSE | ||
| 0155800311 | 21501AB | CLAMP - HOSE | ||
| 083636165G | 083636165G | SCREW - MACHINE | ||
| 083638162C | 083638162C | SCREW - MACHINE | ||
| 089111062G | 089111062G | NUT - HEX | ||
| 214100M400 | 21400 | RADIATOR ASSY | ||
| 214110M511 | 21408M | CORE ASSY - RADIATOR | ||
| 2141259Y00 | 21412 | TANK - RADIATOR, UPPER | ||
| 2141359Y00 | 21413 | TANK - RADIATOR, LOWER | ||
| 2141459Y00 | 21412E | SEAL - PACKING, RADIATOR | ||
| 214300M900 | 21430+A | CAP ASSY - RADIATOR | ||
| 2143054P00 | 21430 | CAP ASSY - RADIATOR | ||
| 2144050Y00 | 21480 | COCK - WATER DRAIN | ||
| 2148118000 | 21480G | PACKING - DRAIN COCK | ||
| 2148179R00 | 21590 | MOTOR & FAN ASSY - W / SHROUD | ||
| 2148359Y00 | 21475 | SHROUD ASSY - RADIATOR | ||
| 2148660R05 | 21597 | FAN - MOTOR | ||
| 2148760R15 | 21591 | MOTOR ASSY - FAN | ||
| 215010M910 | 21501 | HOSE - RADIATOR, UPPER | ||
| 215020M910 | 21501+A | HOSE - RADIATOR, UPPER | ||
| 215020M911 | 21501+B | HOSE - RADIATOR, UPPER | ||
| 2150366R00 | 21503 | HOSE - RADIATOR, LOWER | ||
| 2150479R00 | 21503+A | HOSE - RADIATOR, LOWER | ||
| 2150650J00 | 21560E | MOUNTING - RUBBER, RADIATOR UPPER | ||
| 2150751Y10 | 21560F | MOUNTING - RUBBER, RADIATOR LOWER | ||
| 2151459Y00 | 21572M | BRACKET - WATER PIPE | ||
| 215161M900 | 21505 | CONNECTOR - RADIATOR HOSE | ||
| 2154350Y10 | 21560N | BRACKET - RADIATOR MOUNTING, UPPER | ||
| 2159989911 | 21599N | LABEL - CAUTION, MOTOR FAN | ||
| 216940M300 | 21694 | BOLT - SPECIAL | ||
| 2171069Y11 | 21510 | TANK ASSY - RADIATOR RESERVOIR | ||
| 2171250M01 | 21516 | CAP - RESERVOIR TANK | ||
| 217410M910 | 21515+A | HOSE - RESERVOIR TANK | ||
| 2174150Y01 | 21515 | HOSE - RESERVOIR TANK | ||
| 2174550Y00 | 21518 | BRACKET ASSY - RESERVOIR TANK | ||
| 2175001E00 | 21515E | CLIP | ||
| 925940M300 | 21631B | NUT |
