| Code | Name | Period | Specifications |
|---|---|---|---|

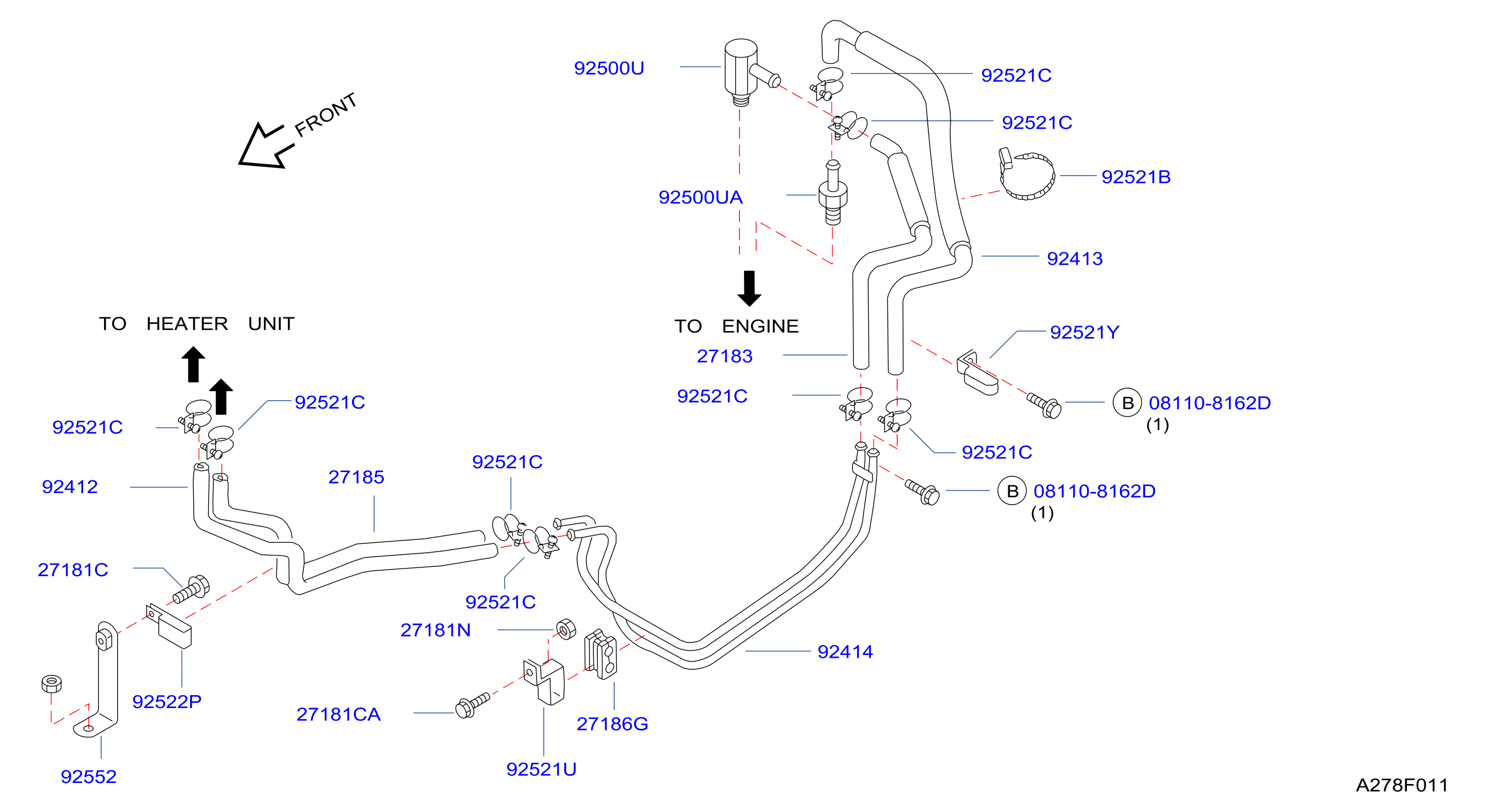

| 278F-001-01 | Heater Piping Front Heater Piping | 1992 - ... |
BODY: T
ENGINE: BD30
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 0112501524 | 27181C | BOLT | ||
| 0112501564 | 27181CA | BOLT | ||
| 0122500331 | 27181N | NUT | ||
| 0155200224 | 92521B | CLIP | ||
| 0155500231 | 92521C | CLIP | ||
| 0193513064 | 92552 | BRACKET - TUBE CLIP | ||
| 081108162D | 081108162D | BOLT - HEX | ||
| 922800T001 | 92521U | CLIP | ||
| 922900T001 | 27186G | GROMMET - RUBBER | ||
| 924011T502 | 27185 | HOSE - FRONT HEATER, 3 | ||
| 924020T601 | 27183 | HOSE - FRONT HEATER | ||
| 924020T610 | 27183 | HOSE - FRONT HEATER | ||
| 924021T500 | 27183 | HOSE - FRONT HEATER | ||
| 924080T602 | 92414 | HOSE ASSY - HEATER | ||
| 924080T612 | 92414 | HOSE ASSY - HEATER | ||
| 92409T8002 | 92521Y | CLIP | ||
| 924121T501 | 92412 | HOSE - HEATER, OUTLET | ||
| 924130T601 | 92413 | HOSE - HEATER, OUTLET | ||
| 924130T610 | 92413 | HOSE - HEATER, OUTLET | ||
| 924131T500 | 92413 | HOSE - HEATER, OUTLET | ||
| 9250001G00 | 92500U | CONNECTOR - HEATER HOSE | ||
| 9250010G10 | 92500UA | CONNECTOR - HEATER HOSE | ||
| 925552T300 | 92522P | CLIP |
