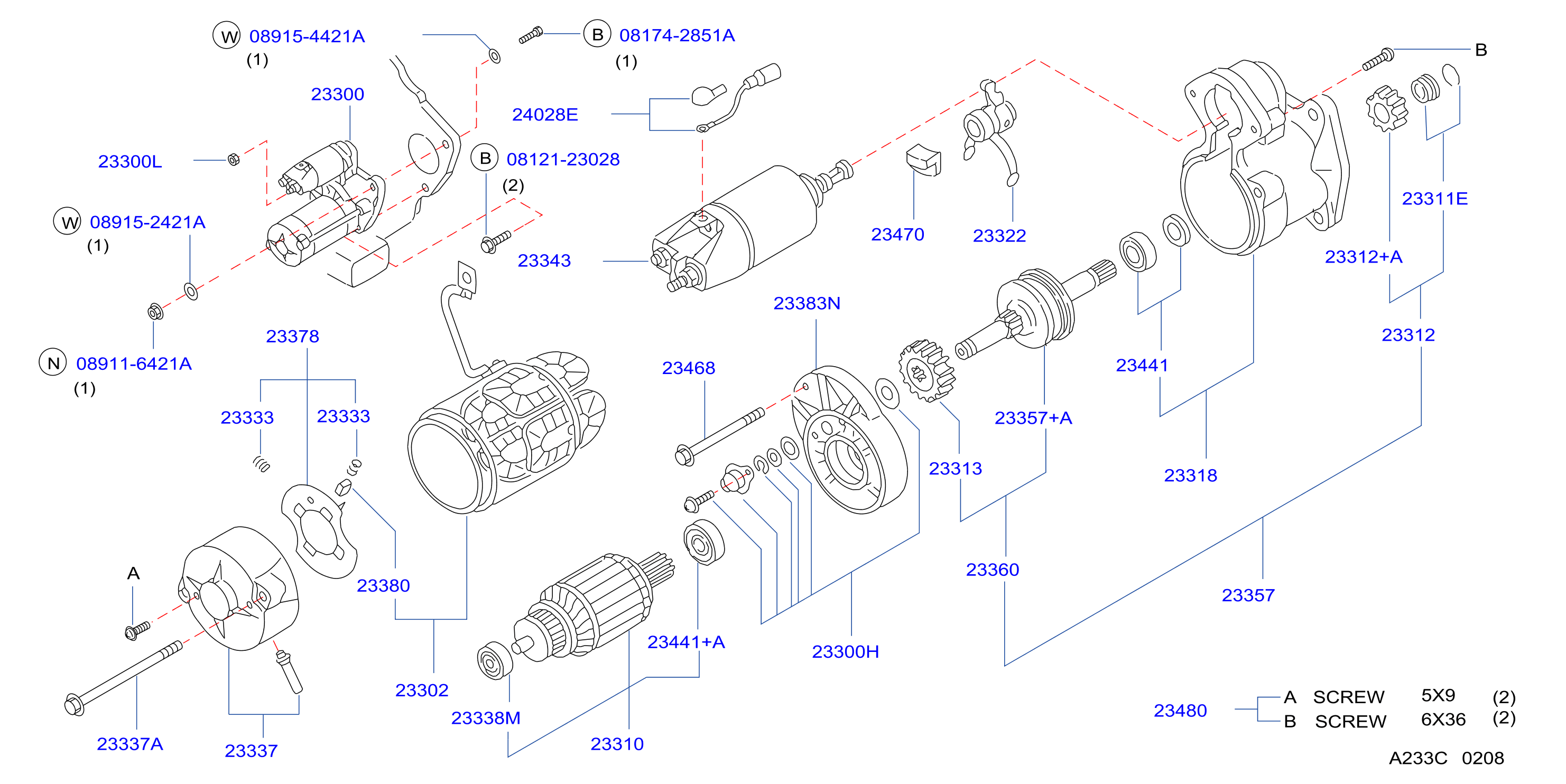

Parts in this diagram 33
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0122500331 | 23300L | NUT | |||
| 0812123028 | 0812123028 | BOLT - HEX | |||
| 081742851A | 081742851A | BOLT - HEX | |||
| 089116421A | 089116421A | NUT - HEX | |||
| 089152421A | 089152421A | WASHER - SPRING | |||
| 089154421A | 089154421A | WASHER - PLAIN | |||
| 233000T003 | 23300 | MOTOR ASSY - STARTER | |||
| 233020T000 | 23302 | YOKE ASSY | |||
| 233070T000 | 23357 | SHAFT - PINION | |||
| 233100T003 | 23310 | ARMATURE ASSY | |||
| 233120T000 | 23312 | PINION ASSY | |||
| 233130T000 | 23312+A | PINION ASSY | |||
| 23313T9000 | 23313 | GEAR | |||
| 233180T000 | 23318 | CASE ASSY - GEAR | |||
| 233220T000 | 23322 | LEVER SET - SHIFT | |||
| 23333T9000 | 23333 | SPRING - BRUSH | |||
| 233370T000 | 23337 | COVER ASSY - REAR | |||
| 23338T9002 | 23338M | BEARING - REAR COVER | |||
| 23340T9000 | 23337A | BOLT - THROUGH | |||
| 233430T000 | 23343 | SWITCH ASSY - MAGNETIC | |||
| 233570T000 | 23357+A | SHAFT - PINION | |||
| 233600T000 | 23360 | GEAR & SHAFT SET | |||
| 233650T000 | 23441+A | METAL - CENTER BEARING | |||
| 23378T9001 | 23378 | HOLDER ASSY - BRUSH | |||
| 233800T000 | 23380 | BRUSH - PLUS | |||
| 233830T000 | 23383N | BRACKET ASSY - CENTER | |||
| 233960T000 | 23300H | COVER - STARTER MOTOR | |||
| 23441T9000 | 23441 | METAL - CENTER BEARING | |||
| 23462T9000 | 23311E | RING - SNAP | |||
| 234680T000 | 23480 | SCREW SET | |||
| 23468T9000 | 23468 | BOLT | |||
| 234700T000 | 23470 | COVER SET - DUST | |||
| 240280T002 | 24028E | WIRE ASSY - LEAD |
