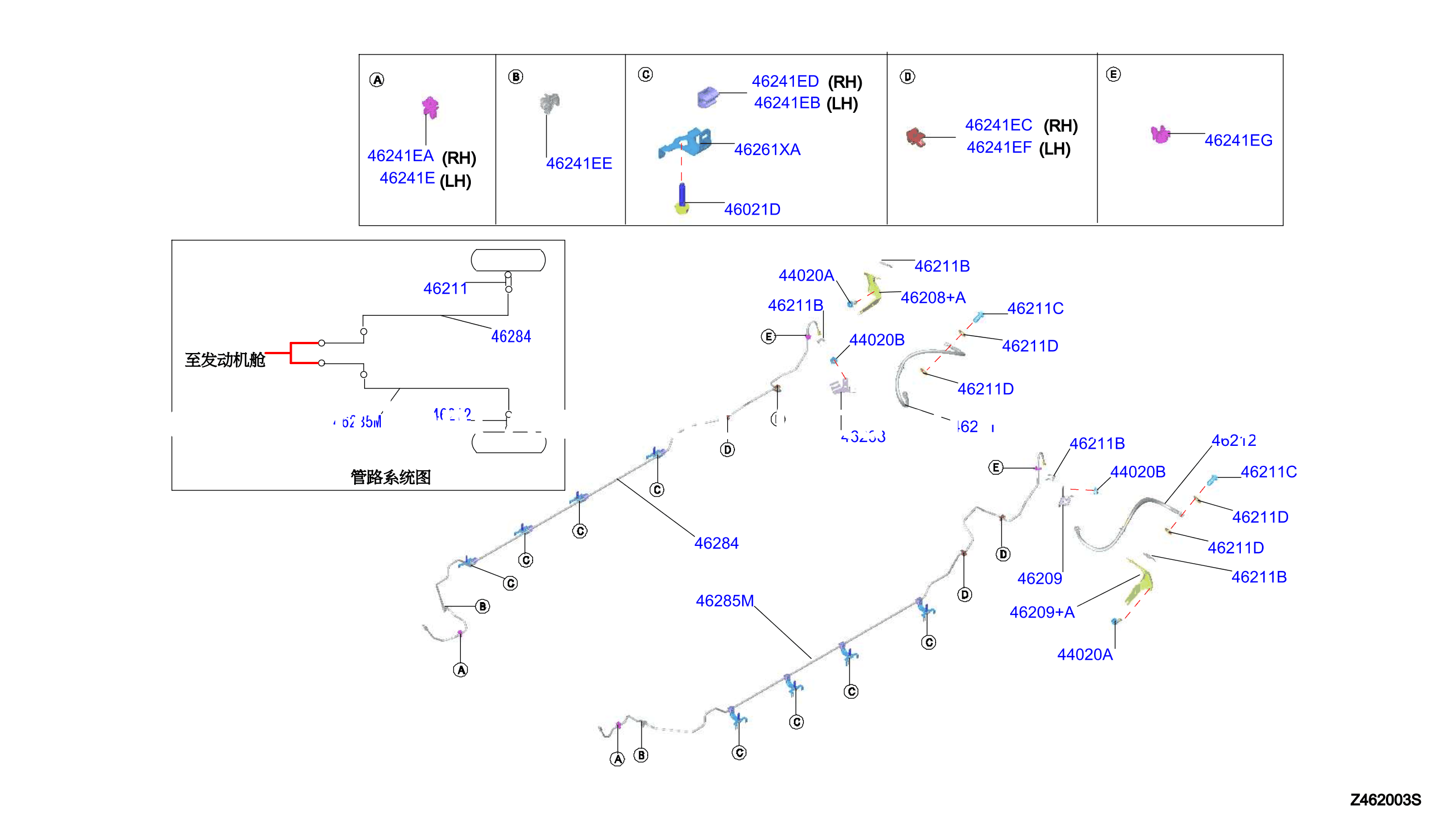

Brake Piping Control Rear Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462B-002-01 | Brake Piping Control Rear Piping | 2022 - ... |
AXLE RATIO: 4WD
BODY: WIDE
|
Parts in this diagram 19
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125A8041 | 44020A | BOLT | |||
| 01225A8031 | 44020B | NUT | |||
| 462063DA0A | 46211B | SPRING - LOCK, BRAKE HOSE | |||
| 462085MP0A | 46208 | BRACKET - BRAKE HOSE, RH | |||
| 462085MP1A | 46208+A | BRACKET - BRAKE HOSE, RH | |||
| 462095MP0A | 46209 | BRACKET - BRAKE HOSE, LH | |||
| 462095MP1A | 46209+A | BRACKET - BRAKE HOSE, LH | |||
| 462105MT5A | 46211 | HOSE ASSY - BRAKE, REAR RH | |||
| 462115MT5A | 46212 | HOSE ASSY - BRAKE, REAR LH | |||
| 46237AV601 | 46211D | GASKET - BRAKE HOSE |
