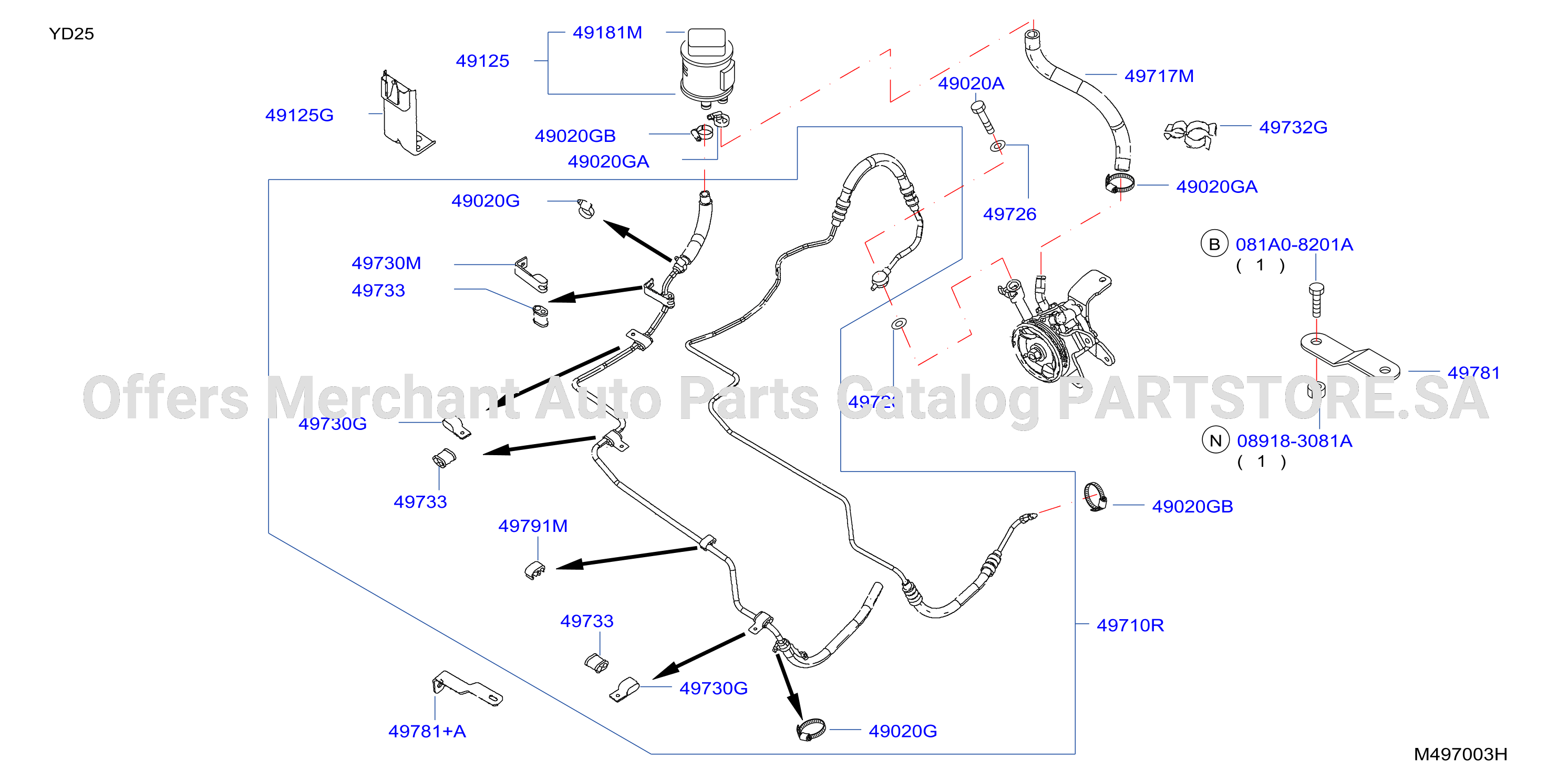

Power Steering Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 497A-001-01 | Power Steering Piping | 2012 - 2013 |
ENGINE: YD25DDTI
|
No illustration for this section
The full parts list is available below
Parts in this diagram 21
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 015562203M | 49020GB | CLAMP | |||
| 0161900011 | 49020A | BOLT | |||
| 081A08201A | 081A08201A | BOLT - FLANGE | |||
| 089183081A | 089183081A | NUT - FLANGE, HEX | |||
| 16439LA30C | 49020G | CLAMP | |||
| 16439MD00B | 49020GA | CLAMP | |||
| 49181AA000 | 49181M | CAP ASSY - POWER STEERING RESERVOIR TANK | |||
| 49190MB400 | 49125G | BRACKET - RESERVOIR TANK | |||
| 49192AA000 | 49125 | TANK ASSY - RESERVOIR, POWER STEERING | |||
| 49710LC10A | 49710R | HOSE & TUBE SET - POWER STEERING |
