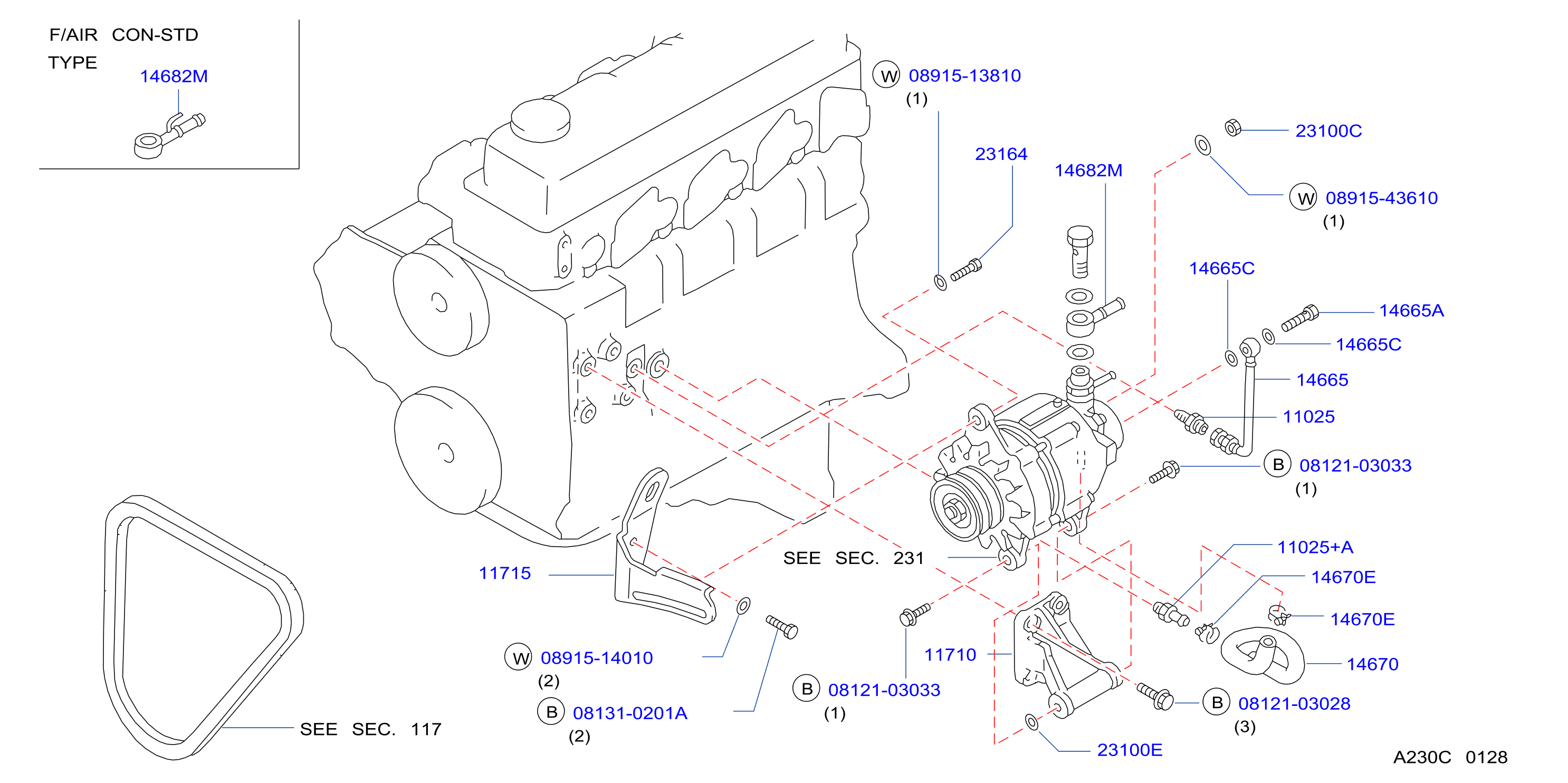

Parts in this diagram 24
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0122100241 | 23100C | NUT | |||
| 0122100381 | 23100C | NUT | |||
| 0135100104 | 14665C | GASKET | |||
| 0155500221 | 14670E | CLAMP - HOSE | |||
| 0161900444 | 14665A | EYEBOLT | |||
| 0812103028 | 0812103028 | BOLT - HEX | |||
| 0812103033 | 0812103033 | BOLT - HEX | |||
| 081310201A | 081310201A | BOLT - HEX | |||
| 0891513810 | 0891513810 | WASHER - SPRING | |||
| 0891514010 | 0891514010 | WASHER - SPRING | |||
| 0891543610 | 0891543610 | WASHER - PLAIN | |||
| 1102561501 | 11025 | CONNECTOR | |||
| 1171002N01 | 11710 | BRACKET - ALTERNATOR | |||
| 1171502N03 | 11715 | BAR - ADJUSTING, ALTERNATOR | |||
| 117155T100 | 11715 | BAR - ADJUSTING, ALTERNATOR | |||
| 1171644G00 | 23164 | BOLT - SETTING | |||
| 117166T000 | 23164 | BOLT - SETTING | |||
| 117166T00A | 23164 | BOLT - SETTING | |||
| 1466543G00 | 14665 | TUBE ASSY - OIL | |||
| 1467021N00 | 14670 | HOSE - OIL RETURN | |||
| 1467161500 | 11025+A | CONNECTOR | |||
| 1468231W00 | 14682M | CONNECTOR | |||
| 14682Y7505 | 14682M | CONNECTOR | |||
| 3329643G00 | 23100E | WASHER - LOCK |
