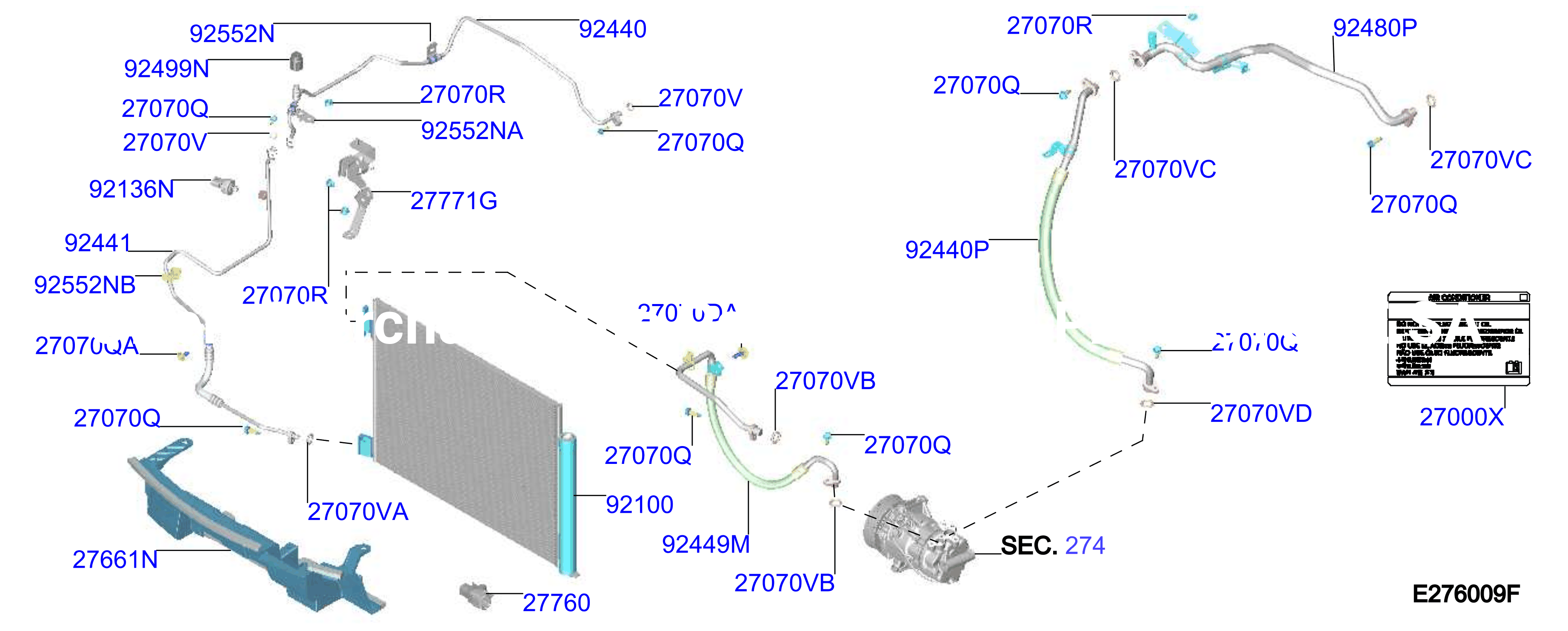

Condenser Liquid Tank Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 276A-003-01 | Condenser Liquid Tank Piping | 2019 - 2022 |
BODY: 5DOOR
|
No illustration for this section
The full parts list is available below
Parts in this diagram 26
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0111100Q0F | 27070QA | BOLT | |||
| 0112500Q3C | 27070DA | SCREW | |||
| 01125A6051 | 27070Q | BOLT | |||
| 01125N6121 | 27070Q | BOLT | |||
| 01225A6011 | 27070R | NUT | |||
| 01225N6011 | 27070R | NUT | |||
| 27090E946C | 27000X | LABEL - CAUTION, AIR CONDITIONER | |||
| 2768900Q0F | 27771G | BRACKET | |||
| 277223VA0A | 27760 | SENSOR ASSY - AMBIENT | |||
| 277226RF0A | 27760 | SENSOR ASSY - AMBIENT |
of
3
