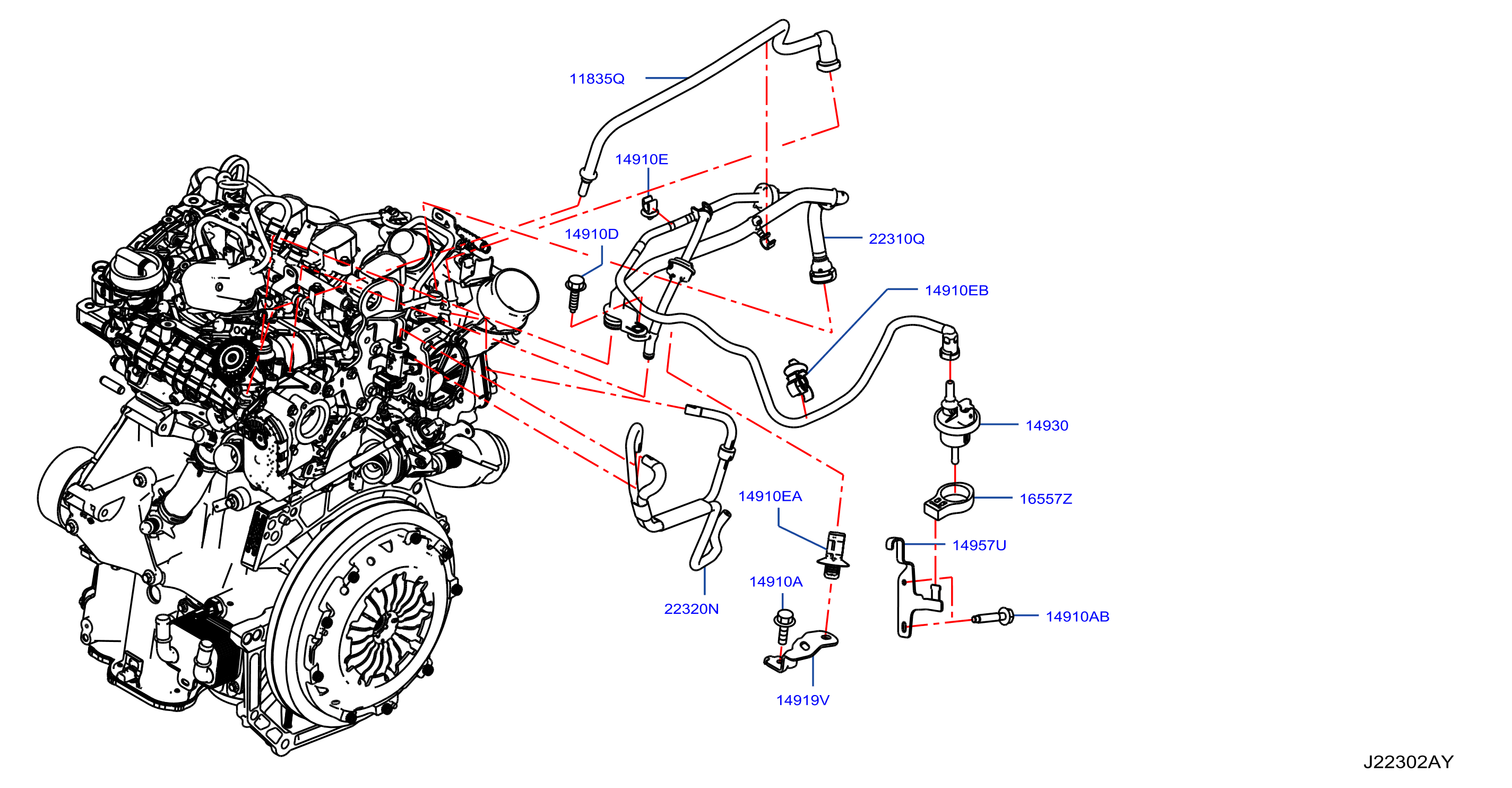

Engine Control Vacuum Piping Abs Gas Vapor 1
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 223R-002-01 | Engine Control Vacuum Piping Abs Gas Vapor 1 | 2020 - 2022 |
ENGINE: HR10DDT
|
No illustration for this section
The full parts list is available below
Parts in this diagram 13
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125A6021 | 14910A | BOLT | |||
| 01125N6041 | 14910AB | BOLT | |||
| 0145600Q1E | 14910D | SCREW | |||
| 1183500Q0C | 11835Q | PIPE ASSY - BLOWBY GAS | |||
| 1491900Q0B | 14919V | BRACKET - HOSE | |||
| 1493000QAA | 14930 | EVAP CANISTER PURGE VALVE | |||
| 1495700Q1G | 14957U | BRACKET - VALVE | |||
| 1643900Q0B | 14910E | CLIP | |||
| 16557AZ71A | 16557Z | MOUNTING - RUBBER | |||
| 1757400QAA | 14910EA | CLIP |
of
2
