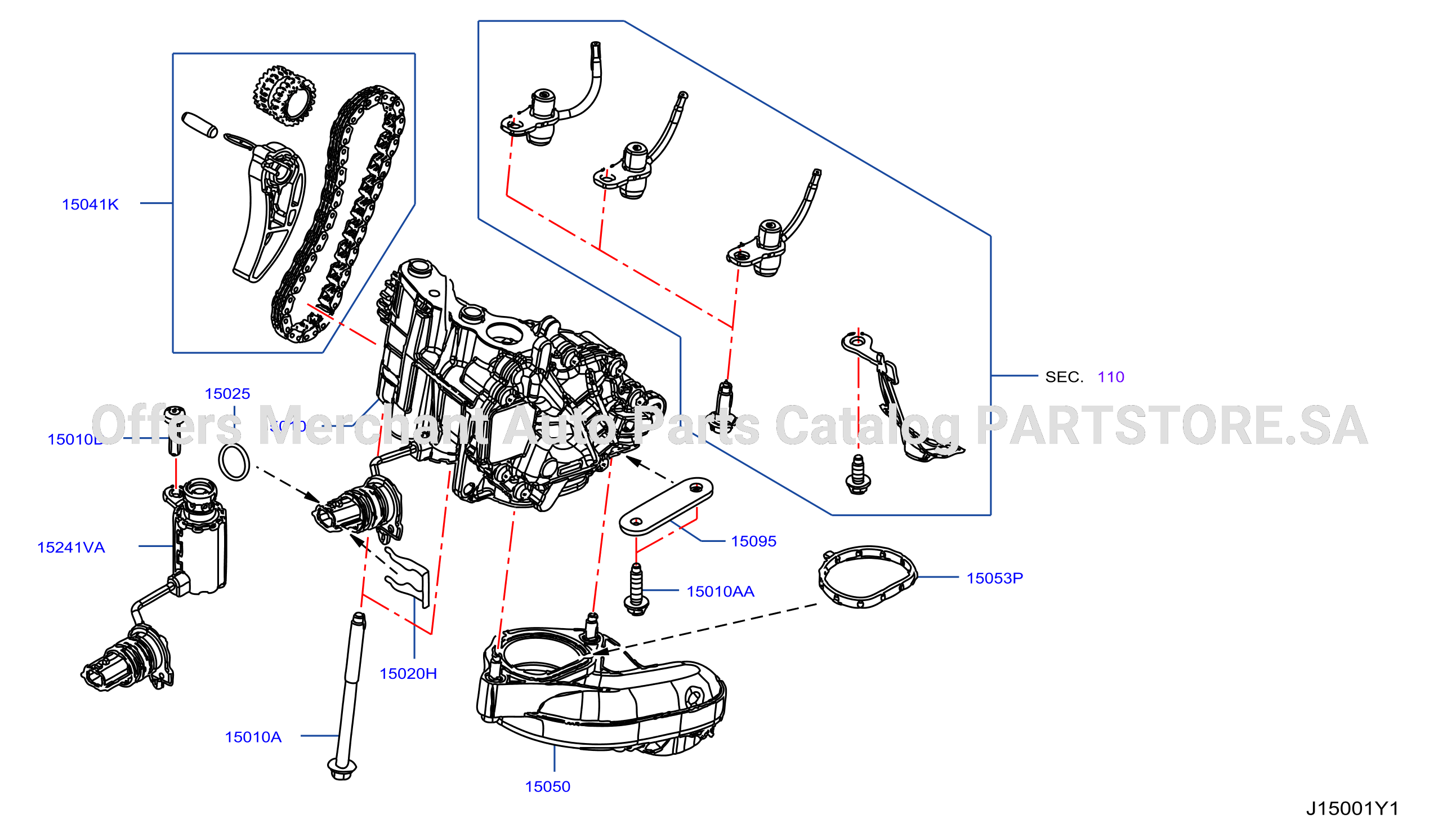

Lubricating System Oil Pump Assy
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 150R-001-01 | Lubricating System Oil Pump Assy | 2019 - 2022 |
ENGINE: HR10DDT
|
No illustration for this section
The full parts list is available below
Parts in this diagram 11
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0155200Q1E | 15020H | CLIP | |||
| 1103500Q0B | 15010AA | BOLT - OIL PUMP | |||
| 1407100QAB | 15010D | SCREW | |||
| 1500000QAB | 15010 | OIL PUMP ASSY | |||
| 1501000Q4G | 15010 | OIL PUMP ASSY | |||
| 1502500QAA | 15025 | GASKET - OIL PUMP | |||
| 1505000Q0C | 15050 | STRAINER ASSY - OIL | |||
| 1505300Q0C | 15053P | GASKET | |||
| 1509500Q0A | 15095 | BRACKET - OIL PUMP | |||
| 1524100Q0D | 15241VA | VALVE ASSY - RELIEF |
