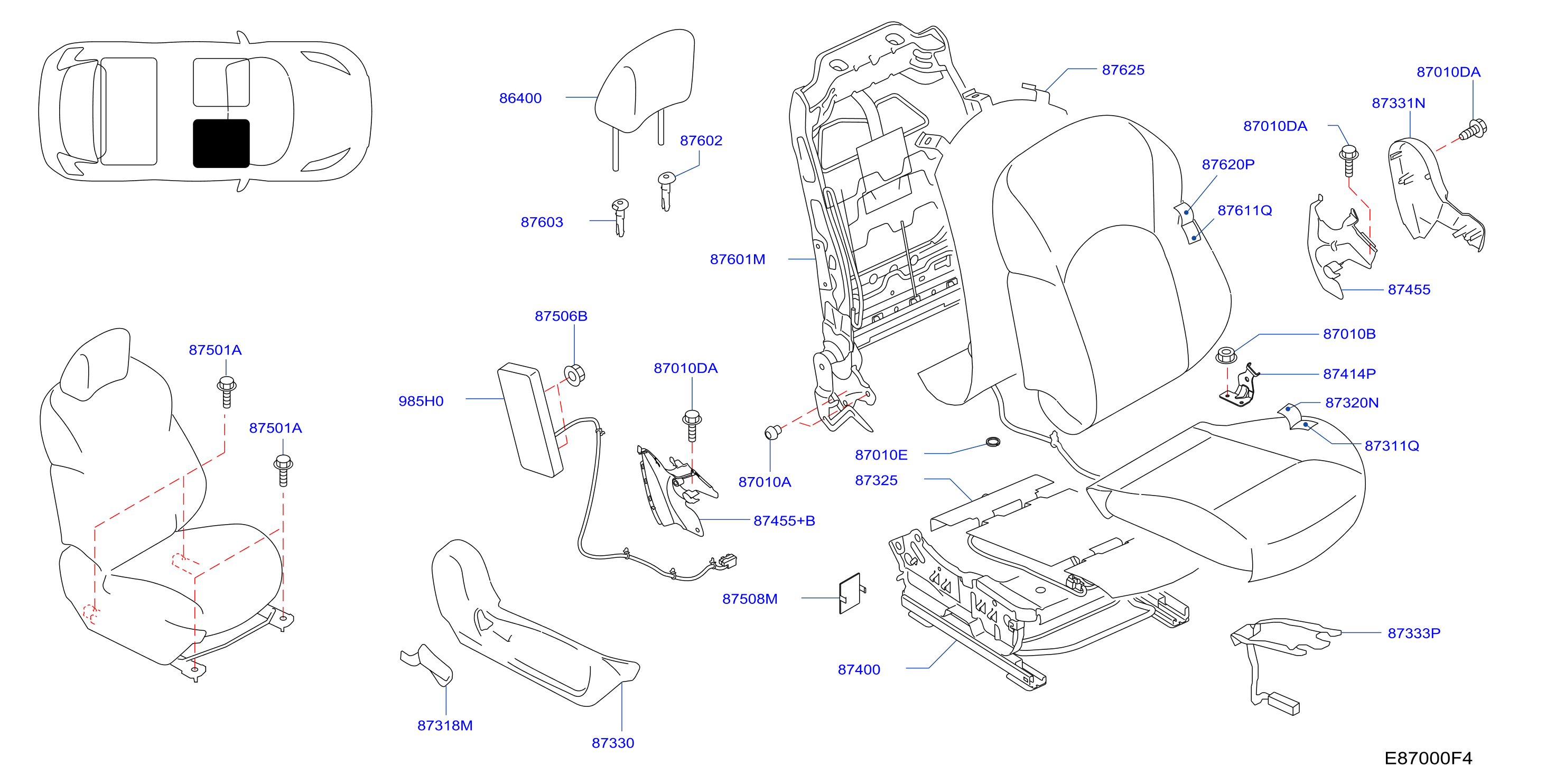

Front Seat Rh Seat
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 870A-003-01 | Front Seat Rh Seat | 2018 - ... |
BODY: 5HB
|
No illustration for this section
The full parts list is available below
Parts in this diagram 22
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 868991KA0A | 87501A | BOLT | |||
| 8689979910 | 87501A | BOLT | |||
| 8690132200 | 87010E | CLIP | |||
| 873181KK0A | 87318M | LEVER ASSY - FRONT SEAT CUSHION, RH | |||
| 873301KK0A | 87330 | FINISHER ASSY - CUSHION, FRONT SEAT RH | |||
| 873311KK0A | 87331N | FINISHER - CUSHION, FRONT SEAT INNER RH | |||
| 873321KK0A | 87010DA | SCREW | |||
| 87332BM703 | 87506B | NUT | |||
| 874001KK0D | 87400 | ADJUSTER ASSY - FRONT SEAT, RH | |||
| 874141KK0A | 87414P | REINFORCE ASSY - SLIDE |
of
3
