| Code | Name | Period | Specifications |
|---|---|---|---|

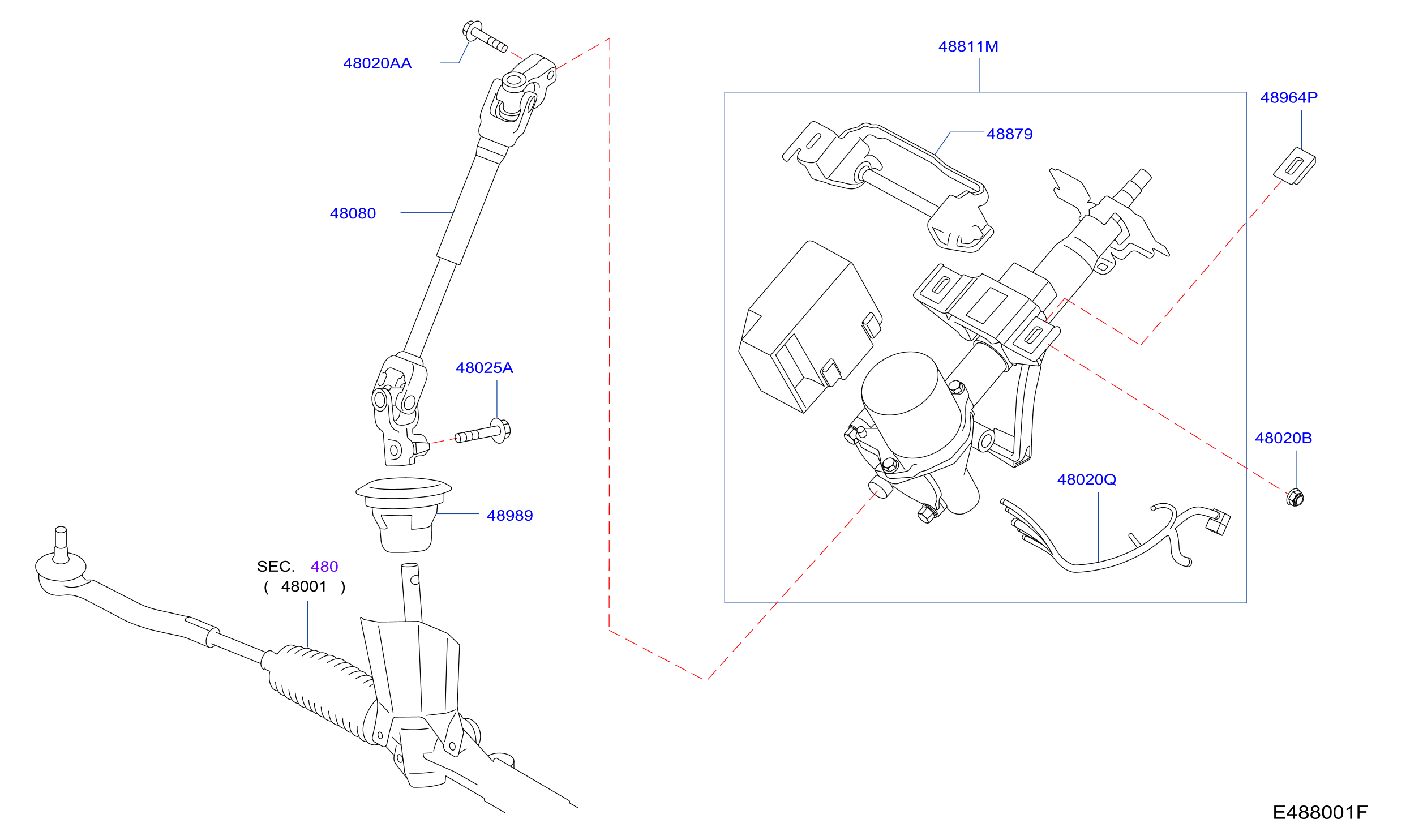

| 488A-001-01 | Steering Column | 2012 - 2014 |
ENGINE: HR16DE
|
Parts in this diagram 12
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125N0141 | 48025A | BOLT | |||
| 0122500481 | 48020B | NUT | |||
| 241683NL0A | 48020Q | HARNESS - SUB | |||
| 48080BA66A | 48080 | JOINT ASSY - STEERING COLUMN, LOWER | |||
| 480913NL0A | 48879 | BRACKET - HARNESS | |||
| 48811BA61A | 48811M | CONTROL UNIT ASSY - EPS W / MOTOR | |||
| 48811BA61B | 48811M | CONTROL UNIT ASSY - EPS W / MOTOR | |||
| 48811BA64A | 48811M | CONTROL UNIT ASSY - EPS W / MOTOR | |||
| 48811BV81A | 48811M | CONTROL UNIT ASSY - EPS W / MOTOR | |||
| 489353NL0B | 48020AA | BOLT | |||
| 48964JK71A | 48964P | BLOCK - SLIDE | |||
| 48989JD02C | 48989 | SEAL - LOWER COVER, STERRING COLUMN |
