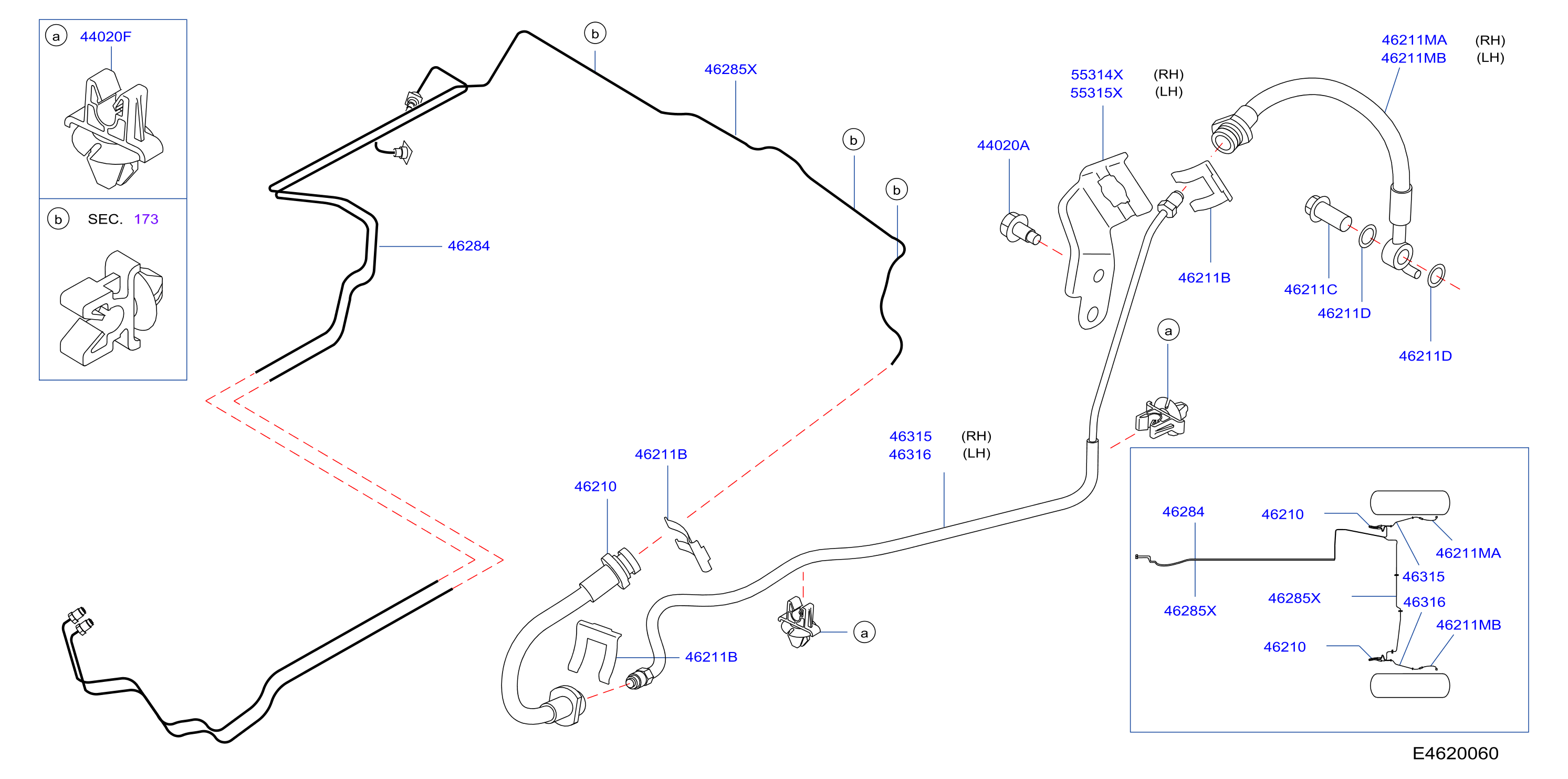

Parts in this diagram 19
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125N8031 | 44020A | BOLT | |||
| 462062J00A | 46211B | SPRING - LOCK, BRAKE HOSE | |||
| 462101KA0B | 46211MA | HOSE ASSY - BRAKE, REAR | |||
| 462101KA0C | 46211MB | HOSE ASSY - BRAKE, REAR | |||
| 462101KA1B | 46211MA | HOSE ASSY - BRAKE, REAR | |||
| 462101KA1C | 46211MB | HOSE ASSY - BRAKE, REAR | |||
| 462141KA0B | 46210 | HOSE ASSY - BRAKE, REAR | |||
| 462141KA1B | 46210 | HOSE ASSY - BRAKE, REAR | |||
| 46237A4600 | 46211D | GASKET - BRAKE HOSE | |||
| 462841KA0A | 46284 | TUBE ASSY - BRAKE, REAR | |||
| 462841KA0B | 46284 | TUBE ASSY - BRAKE, REAR | |||
| 462851KA0A | 46285X | TUBE ASSY - BRAKE, REAR | |||
| 462851KA0B | 46285X | TUBE ASSY - BRAKE, REAR | |||
| 462893U801 | 44020F | CLAMP | |||
| 463151KK0A | 46315 | TUBE ASSY - BRAKE REAR, RH | |||
| 463161KK0A | 46316 | TUBE ASSY - BRAKE REAR, LH | |||
| 463560E00A | 46211C | BOLT - UNION, REAR BRAKE HOSE | |||
| 55314CY00A | 55314X | BRACKET - BRAKE HOSE, REAR RH | |||
| 55315CY00A | 55315X | BRACKET - BRAKE HOSE, REAR LH |
