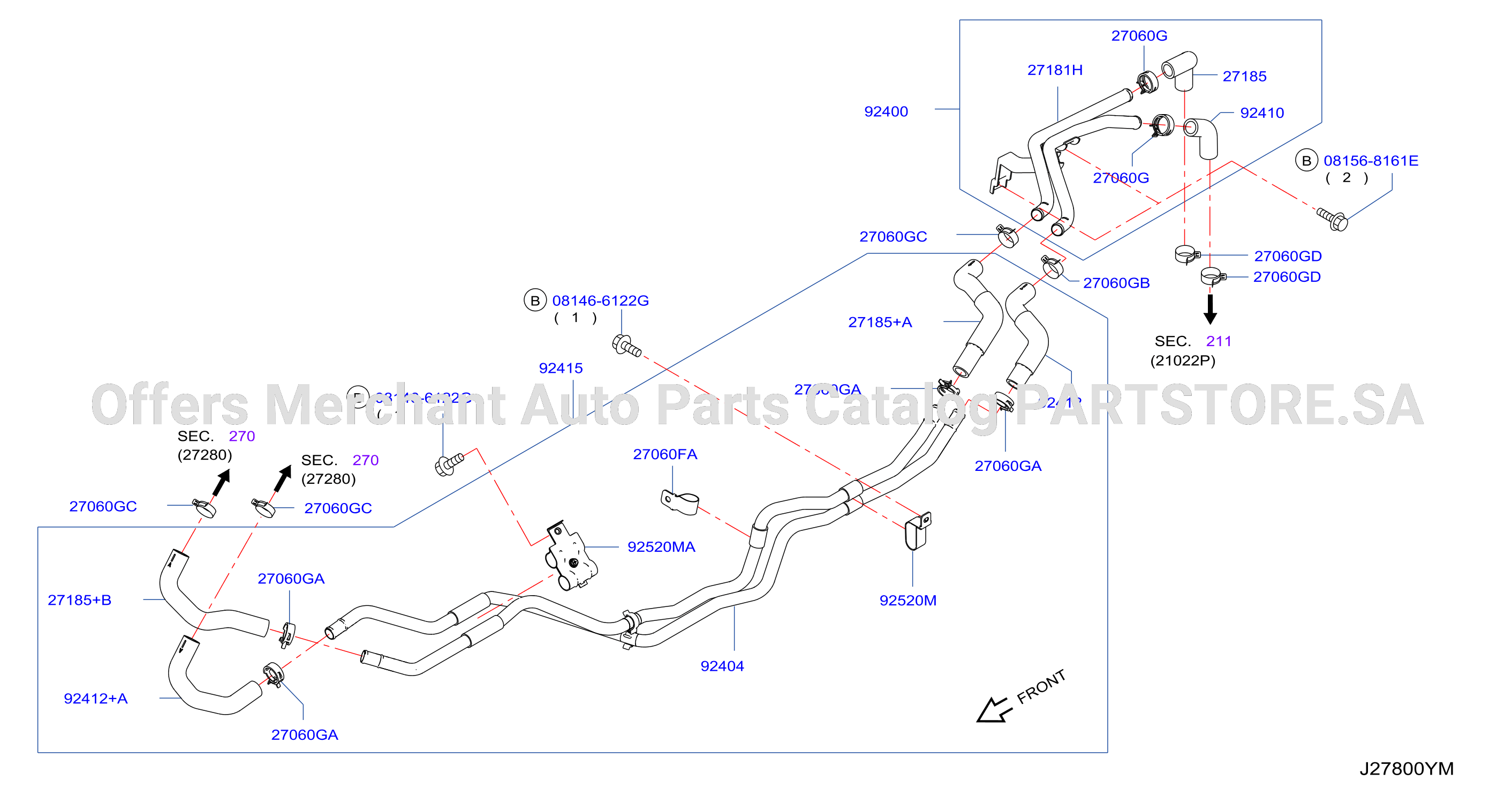

Heater Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 278B-001-01 | Heater Piping | 2012 - 2017 |
BODY: VAN
ENGINE: QR25DE
|
No illustration for this section
The full parts list is available below
Parts in this diagram 13
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0155800521 | 27060G | CLAMP | |||
| 081466122G | 081466122G | BOLT - HEX | |||
| 081568161E | 081568161E | BOLT - HEX, PP W / W | |||
| 924003XA0A | 92400 | HOSE - HEATER, INLET | |||
| 924005YE1A | 92400 | HOSE - HEATER, INLET | |||
| 924013XA0A | 27185 | HOSE - FRONT HEATER, 3 | |||
| 924023XA0A | 27181H | TUBE - WATER HEATER | |||
| 924025YE1A | 27181H | TUBE - WATER HEATER | |||
| 924113XA0A | 92410 | HOSE - HEATER, OUTLET | |||
| 925203XA2A | 92520MA | BRACKET - HEATER PIPE |
