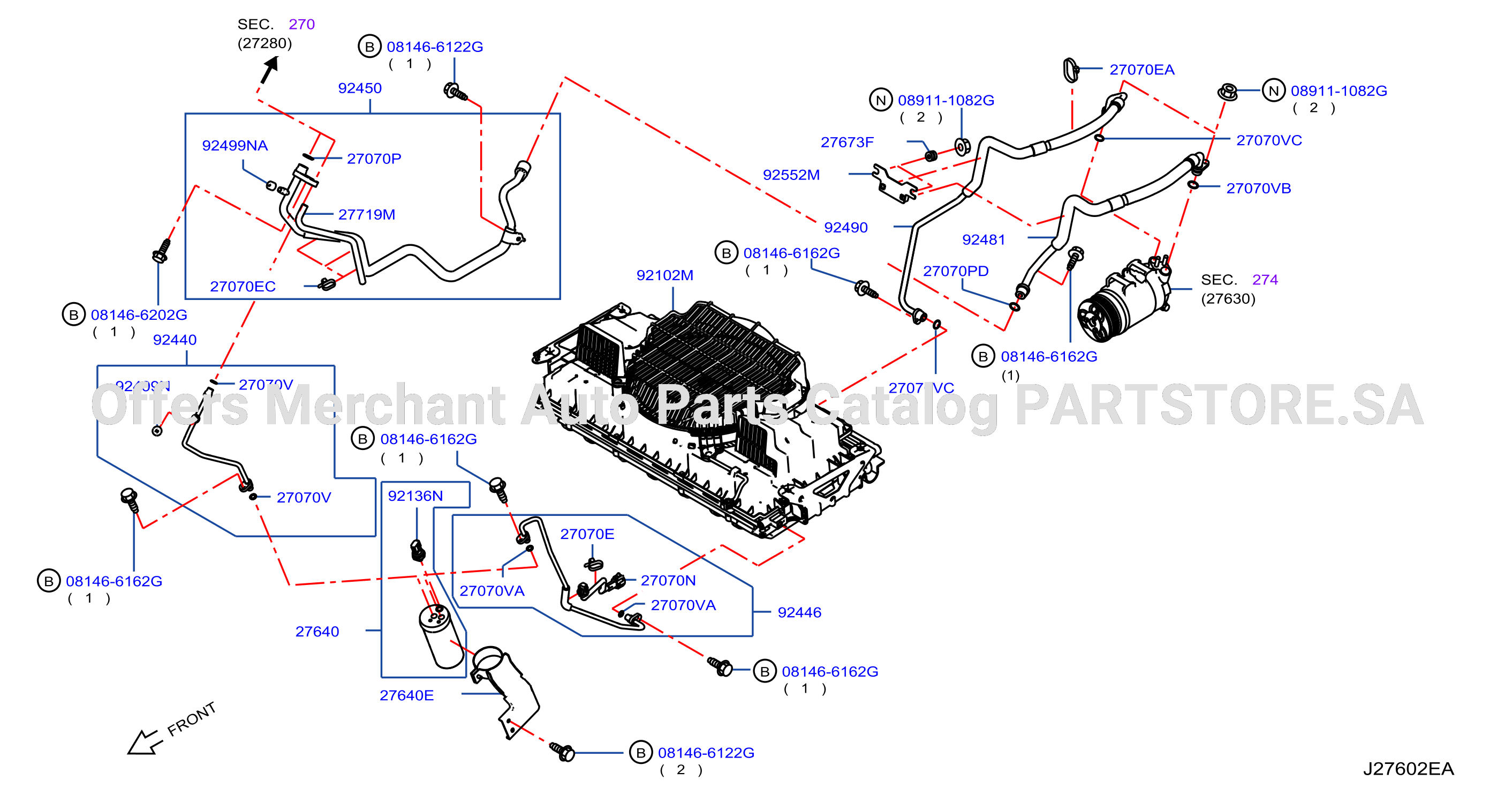

Condenser Liquid Tank Piping Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 276B-005-04 | Condenser Liquid Tank Piping Piping | 2022 - 2023 |
BODY: VAN
ENGINE: QR25DE
|
Parts in this diagram 20
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 081466122G | 081466122G | BOLT - HEX | |||
| 081466162G | 081466162G | BOLT - HEX | |||
| 081466202G | 081466202G | BOLT - HEX | |||
| 089111082G | 089111082G | NUT - HEX | |||
| 243463XA0A | 27070E | CLIP | |||
| 275803XA0A | 27070N | HARNESS - SUB, AIR CONDENSER | |||
| 921313XA0A | 27640 | TANK ASSY - LIQUID | |||
| 921313XC0A | 27640 | TANK ASSY - LIQUID | |||
| 921353XA0A | 27640E | BRACKET - LIQUID TANK | |||
| 921361FA0A | 92136N | SENSOR ASSY - PRESSURE |
of
2
