| Code | Name | Period | Specifications |
|---|---|---|---|

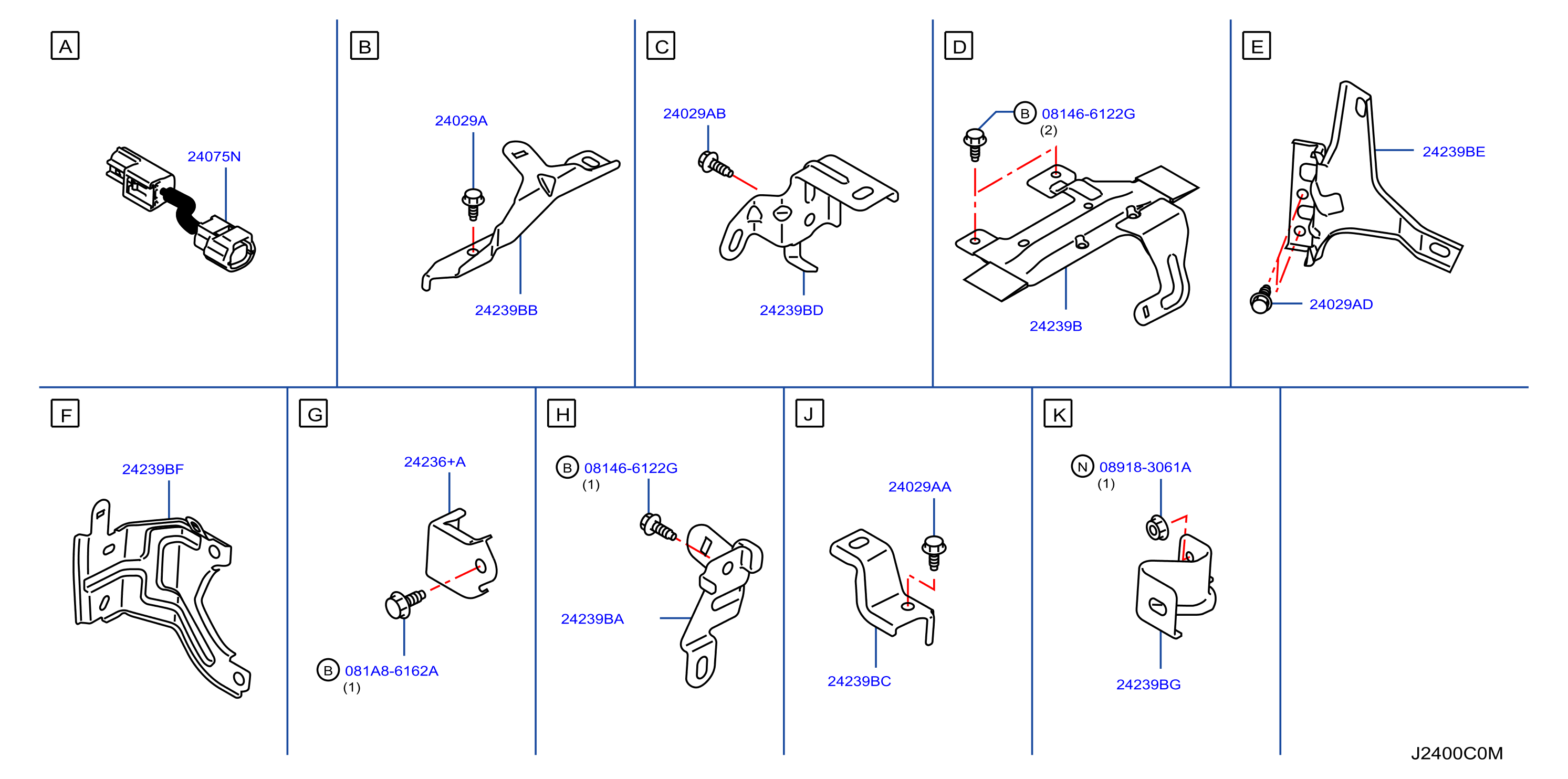

| 240C-012-04 | Wiring Egi Harn | 2023 - 2023 |
AREA: GCC
BODY: VAN
BODY LENGTH: LONG
DOOR: SR/5D
ENGINE: QR25DE
GRADE: DX
SIZE: 3
TRANSMISSION: 5MT
|
Parts in this diagram 24
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125N6011 | 24029A | BOLT | |||
| 01225N6011 | 24029A | BOLT | |||
| 081466122G | 081466122G | BOLT - HEX | |||
| 081A86162A | 081A86162A | BOLT | |||
| 089183061A | 089183061A | NUT - FLANGE, HEX | |||
| 240753XA0A | 24075N | HARNESS - SUB, ENGINE | |||
| 240795YE1A | 24075N | HARNESS - SUB, ENGINE | |||
| 24079MA00A | 24075N | HARNESS - SUB, ENGINE | |||
| 242363XA0A | 24239BE | BRACKET - ENGINE HARNESS | |||
| 242363XA0C | 24239BA | BRACKET - ENGINE HARNESS | |||
| 242363XB0A | 24239B | BRACKET - ENGINE HARNESS | |||
| 242363XB0B | 24239BA | BRACKET - ENGINE HARNESS | |||
| 242363XB0C | 24239BB | BRACKET - ENGINE HARNESS | |||
| 242363XB0D | 24239BC | BRACKET - ENGINE HARNESS | |||
| 242363XB0E | 24239BD | BRACKET - ENGINE HARNESS | |||
| 242363XB1B | 24239BE | BRACKET - ENGINE HARNESS | |||
| 242363XB1D | 24239BF | BRACKET - ENGINE HARNESS | |||
| 242363XB1E | 24239BG | BRACKET - ENGINE HARNESS | |||
| 242363XB2A | 24236+A | BRACKET - HARNESS CONNECTOR | |||
| 24236VZ01B | 24239BC | BRACKET - ENGINE HARNESS | |||
| 24236VZ01E | 24239BF | BRACKET - ENGINE HARNESS | |||
| 24236VZ02A | 24239B | BRACKET - ENGINE HARNESS | |||
| 24236VZ02B | 24239BB | BRACKET - ENGINE HARNESS | |||
| 24236VZ02D | 24239BD | BRACKET - ENGINE HARNESS |
