Camshaft Valve Mechanism Select Camshaft
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 130D-002-01 | Camshaft Valve Mechanism Select Camshaft | 2017 - 2020 |
AREA: GCC
BODY: VAN
BODY LENGTH: W/S/LONG
ENGINE: QR25DE
TRANSMISSION: 5MT
|

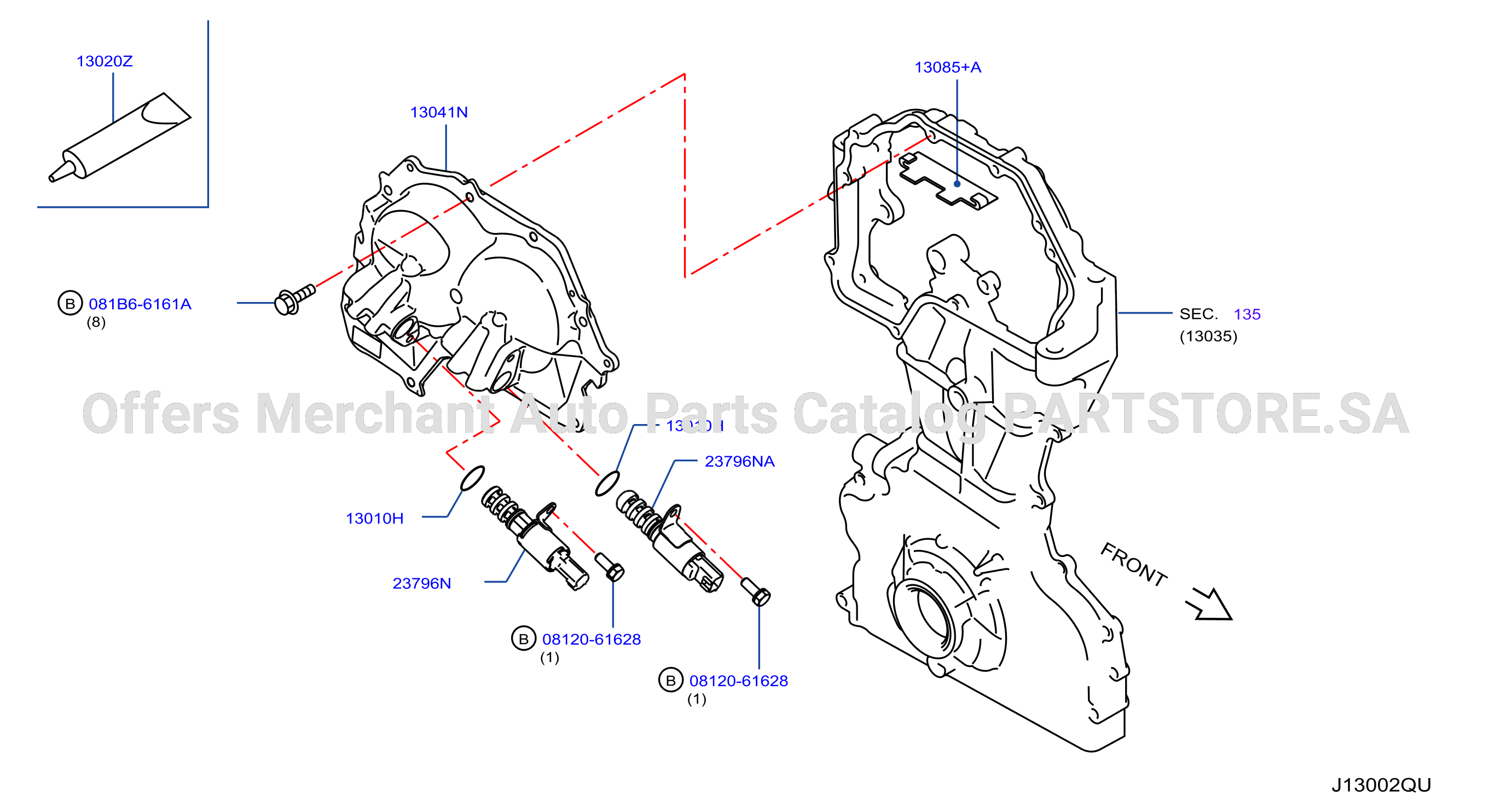

Parts in this diagram 11
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0812061628 | 0812061628 | BOLT - HEX | |||
| 081B66161A | 081B66161A | BOLT - HEX | |||
| 130415YE0A | 13041N | COVER ASSY - CAM SPROCKET, VTC | |||
| 130416N20A | 13041N | COVER ASSY - CAM SPROCKET, VTC | |||
| 130853TU1A | 13085+A | GUIDE - CHAIN, TENSION SIDE | |||
| 130856N210 | 13085+A | GUIDE - CHAIN, TENSION SIDE | |||
| 150663RC6A | 13010H | SEAL - O RING | |||
| 150663RC6B | 13010H | SEAL - O RING | |||
| 237963JV0A | 23796NA | VALVE ASSY - VTC OIL CONTROL | |||
| 237963RC0A | 23796N | VALVE ASSY - VTC OIL CONTROL |
of
2
