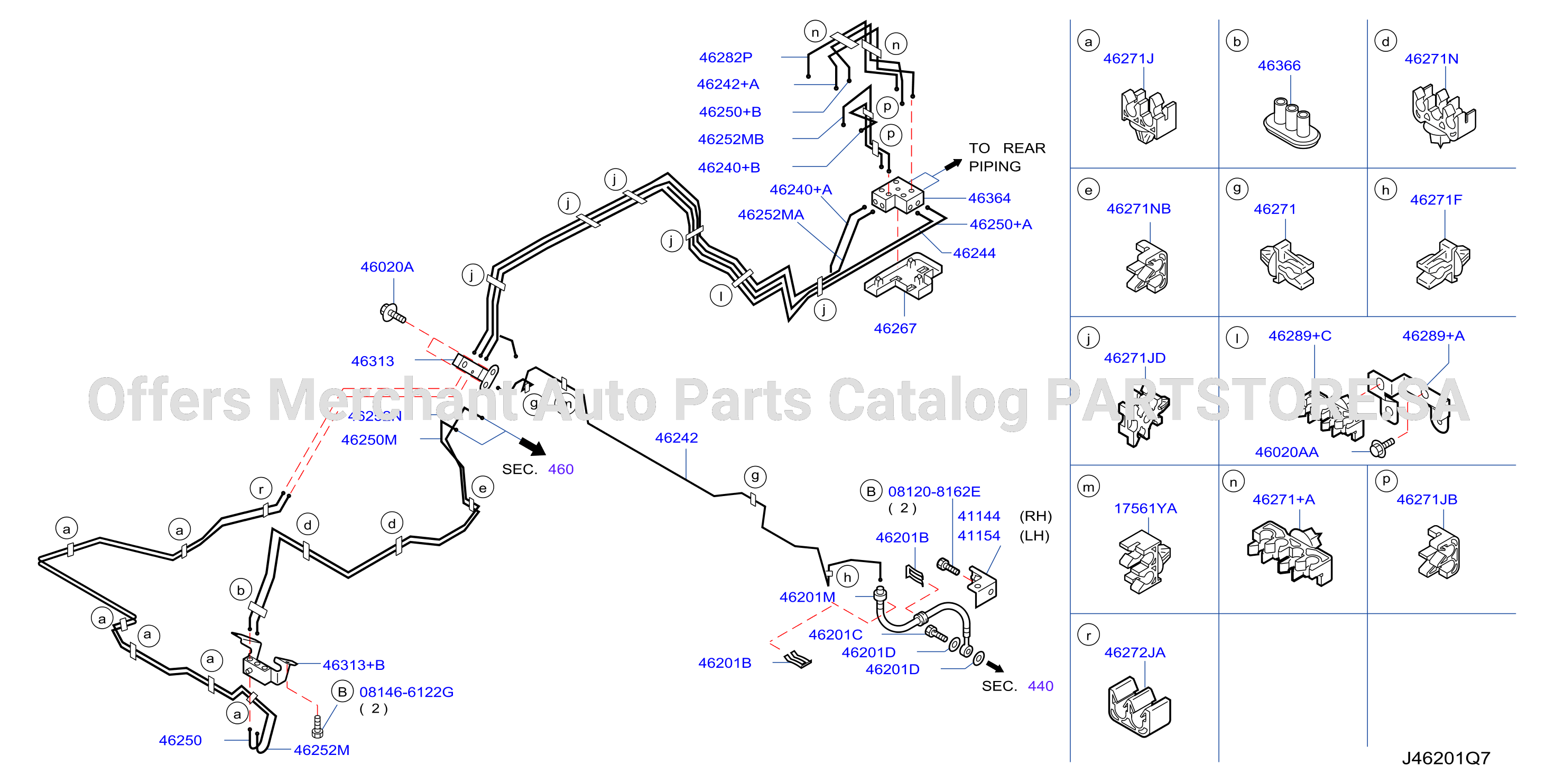

Brake Piping Control Front Piping F / Common Rail
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462B-014-01 | Brake Piping Control Front Piping F / Common Rail | 2007 - ... |
BODY: PNL
ENGINE: ZD30DDTI
|
Parts in this diagram 73
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125N6021 | 46020A | BOLT | |||
| 081208162E | 081208162E | BOLT - HEX | |||
| 081466122G | 081466122G | BOLT - HEX | |||
| 175612U500 | 17561YA | INSULATOR - TUBE | |||
| 41144VW000 | 41144 | BRACKET - FRONT HOSE, RH | |||
| 41154VW000 | 41154 | BRACKET - FRONT HOSE, LH | |||
| 462062J000 | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 462062J00A | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 46210VW000 | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 46210VW00A | 46201M | HOSE ASSY - BRAKE, FRONT |
of
8
