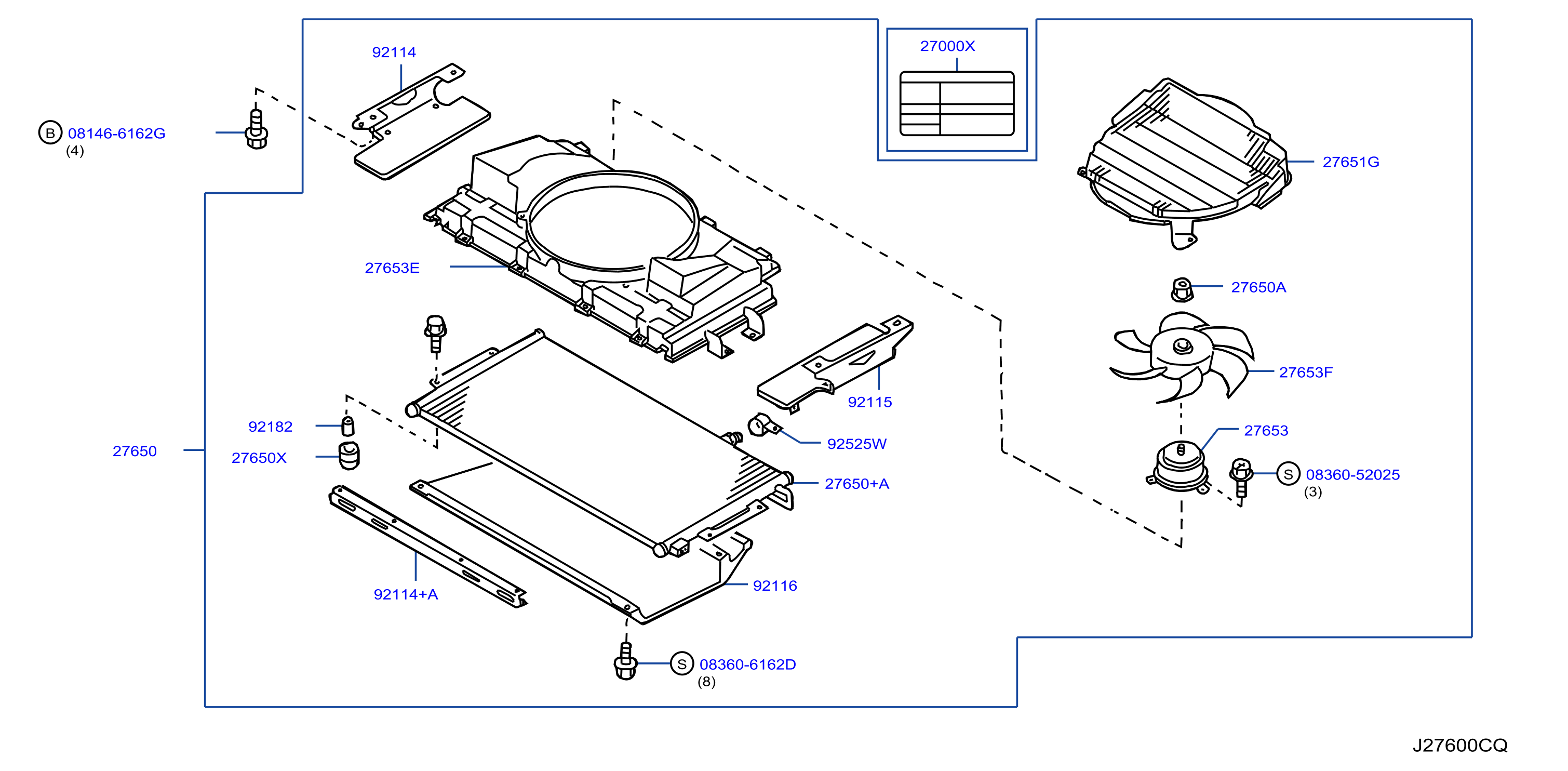

Condenser Liquid Tank Piping Condensor
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 276C-001-04 | Condenser Liquid Tank Piping Condensor | 2006 - 2007 |
BODY: PNL
ENGINE: ZD30DD
|
No illustration for this section
The full parts list is available below
Parts in this diagram 20
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 081466162G | 081466162G | BOLT - HEX | |||
| 0836052025 | 0836052025 | SCREW - MACHINE | |||
| 083606162D | 083606162D | SCREW - MACHINE | |||
| 27090VW700 | 27000X | LABEL - CAUTION, AIR CONDITIONER | |||
| 92100VW000 | 27650 | CONDENSER ASSY | |||
| 92100VX200 | 27650 | CONDENSER ASSY | |||
| 92100VZ00A | 27650 | CONDENSER ASSY | |||
| 92110VW000 | 27650+A | CONDENSER ASSY | |||
| 92114VW000 | 92114 | BRACKET - CONDENSER | |||
| 92114VW010 | 92114+A | BRACKET - CONDENSER |
