Condenser Liquid Tank Piping Piping Rear
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|

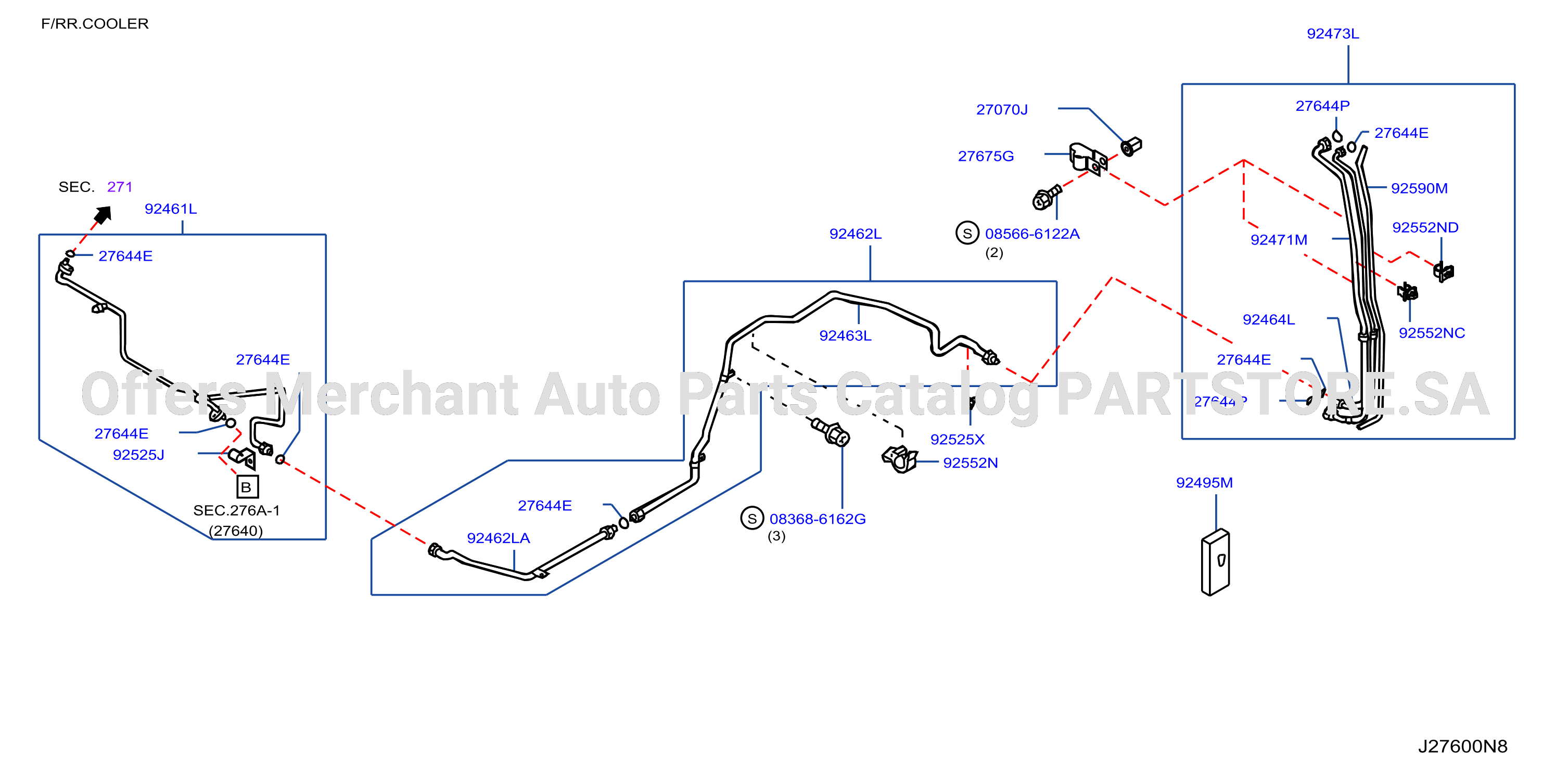

| 276A-005-01 | Condenser Liquid Tank Piping Piping Rear | 2003 - 2006 |
BODY: PNL
ENGINE: KA24DE
|
Parts in this diagram 29
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 083686162G | 083686162G | SCR - HEX HD, PP W | |||
| 085666122A | 085666122A | SCREW - TAPPING | |||
| 90394H9300 | 27070J | GROMMET | |||
| 92461VW600 | 92461L | PIPE ASSY - REAR COOLER, HIGH A | |||
| 92461VX220 | 92461L | PIPE ASSY - REAR COOLER, HIGH A | |||
| 92461VX22B | 92461L | PIPE ASSY - REAR COOLER, HIGH A | |||
| 92461VX22C | 92461L | PIPE ASSY - REAR COOLER, HIGH A | |||
| 92462VW000 | 92462L | PIPE ASSY - REAR COOLER, HIGH B | |||
| 92462VW010 | 92462LA | PIPE ASSY - REAR COOLER, HIGH B | |||
| 92462VW020 | 92462L | PIPE ASSY - REAR COOLER, HIGH B |
of
3
