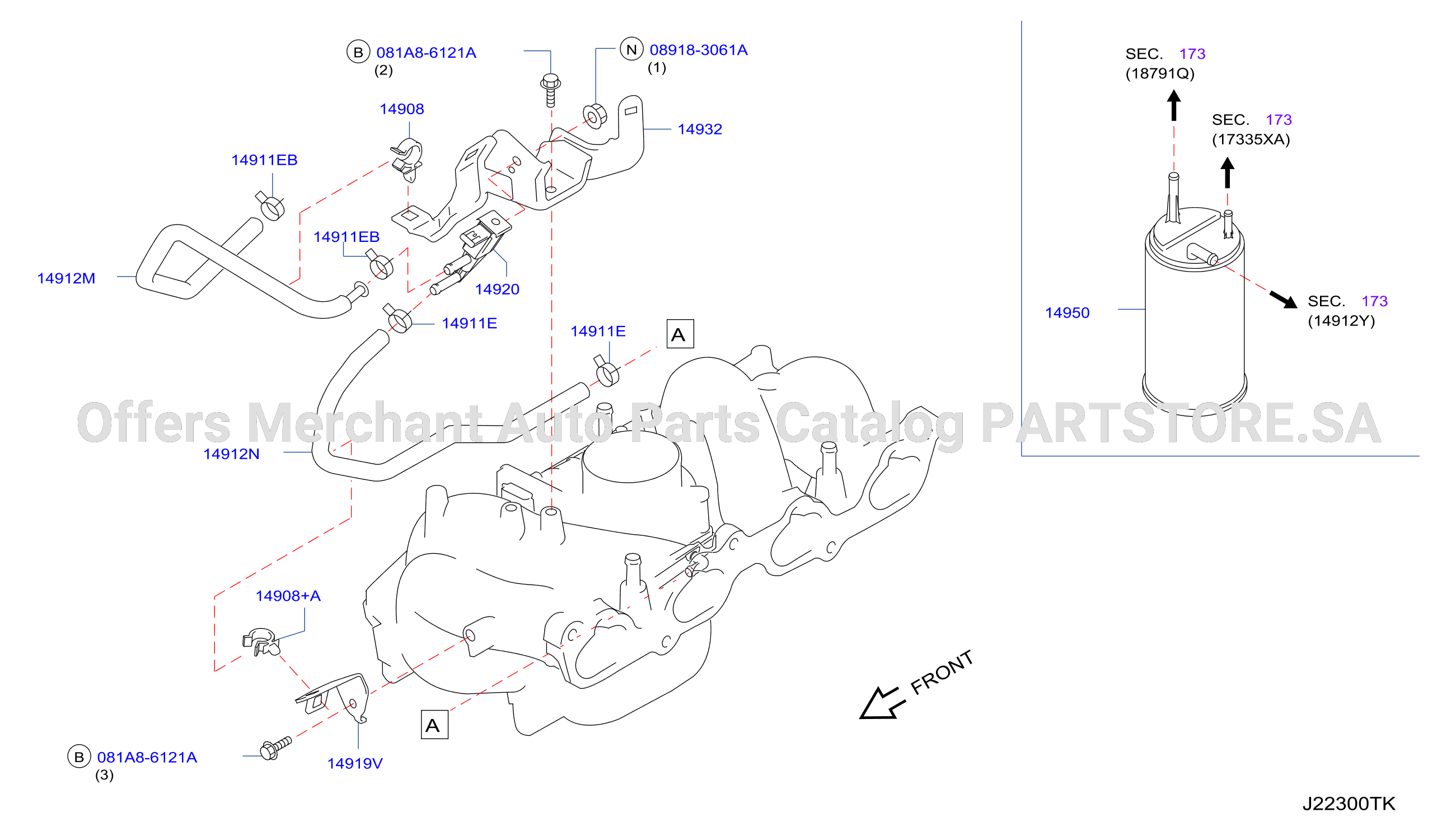

Engine Control Vacuum Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 223H-001-01 | Engine Control Vacuum Piping | 2007 - ... |
ENGINE: QR25DE
|
No illustration for this section
The full parts list is available below
Parts in this diagram 10
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 081A86121A | 081A86121A | BOLT | |||
| 089183061A | 089183061A | NUT - FLANGE, HEX | |||
| 14912MA00A | 14912N | TUBE - ANTI EVAPORATION CONTROL | |||
| 14912VZ00A | 14912M | HOSE - FUEL EVAPORATION CONTROL | |||
| 14919MA00A | 14919V | BRACKET - HOSE | |||
| 14930AX00A | 14920 | VALVE ASSY - CONTROL | |||
| 149503Y508 | 14950 | EVAPORATIVE EMISSION CANISTER | |||
| 14957MA00A | 14932 | BRACKET - PURGE CONTROL VALVE | |||
| 16439N210A | 14911E | CLAMP - HOSE | |||
| 24220CR900 | 14908 | CLIP - HOSE |
