| Code | Name | Period | Specifications |
|---|---|---|---|

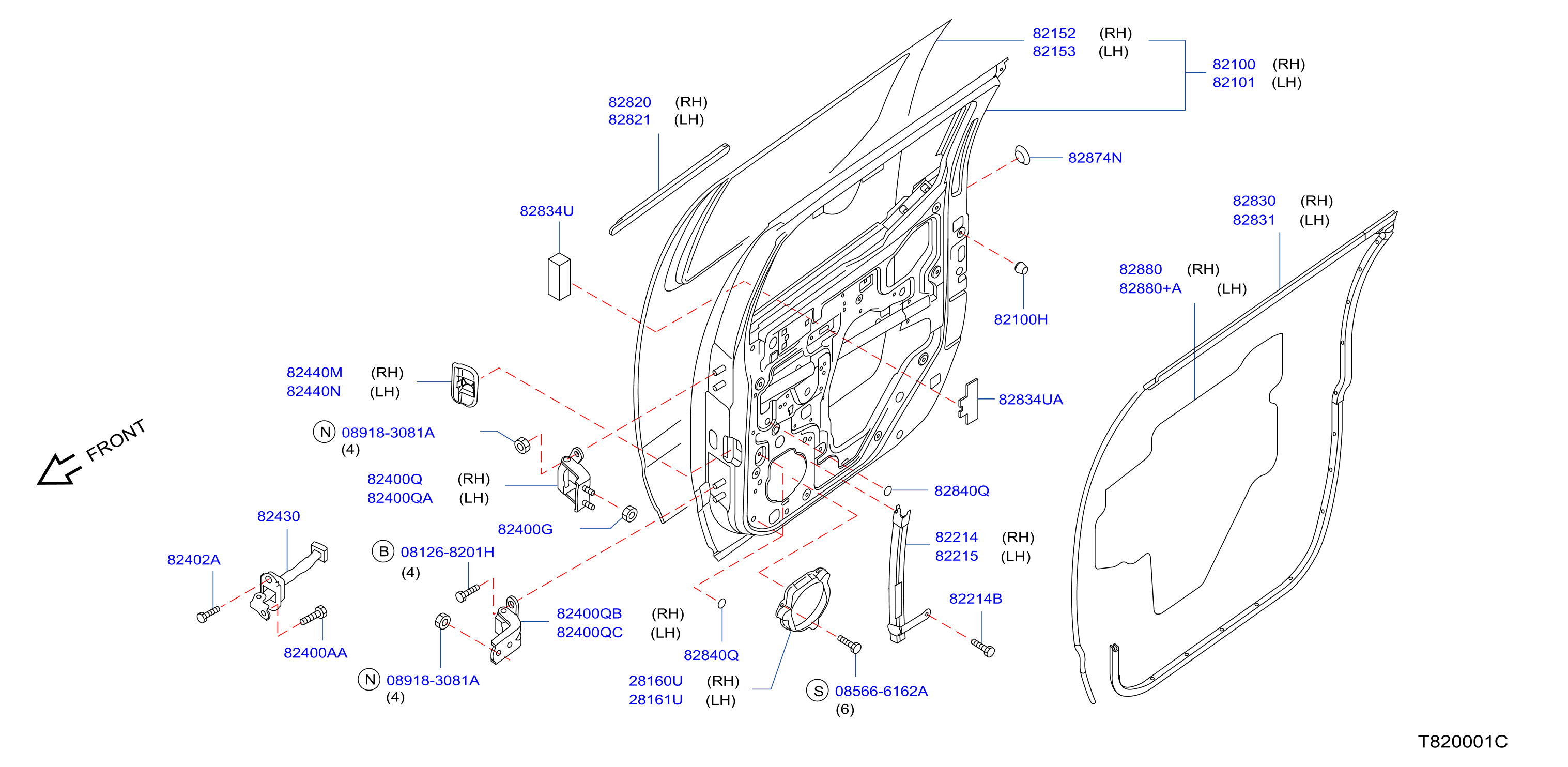

| 820C-001-01 | Rear Door Panel Fitting | 2012 - 2012 |
BODY: DC
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 0112107261 | 82402A | SCREW | ||
| 0143601871 | 82214B | SCREW | ||
| 081268201H | 081268201H | BOLT - HEX | ||
| 085666162A | 085666162A | SCREW - TAPPING | ||
| 089183081A | 089183081A | NUT - FLANGE, HEX | ||
| 28160JR200 | 28160U | BRACKET - SPEAKER, REAR DOOR RH | ||
| 28161JR200 | 28161U | BRACKET - SPEAKER, REAR DOOR LH | ||
| 64899EB70A | 82840Q | COVER - HOLE | ||
| 8049740U0A | 82400G | NUT - SPRING | ||
| 8049840U0A | 82400AA | BOLT | ||
| 8049840U0B | 82400AA | BOLT | ||
| 80872W1011 | 82100H | BUMPER - RUBBER, REAR DOOR | ||
| 80874EB70A | 82874N | GROMMET | ||
| 81843JR20A | 82834U | SEAL - REAR DOOR INSIDE | ||
| 82100JR230 | 82100 | DOOR ASSY - REAR, RH | ||
| 82101JR230 | 82101 | DOOR ASSY - REAR, LH | ||
| 82152JR230 | 82152 | PANEL - REAR DOOR, OUTER RH | ||
| 82153JR230 | 82153 | PANEL - REAR DOOR, OUTER LH | ||
| 82214JR200 | 82214 | SASH ASSY - REAR DOOR, FRONT RH | ||
| 82215JR200 | 82215 | SASH ASSY - REAR DOOR, FRONT LH | ||
| 82430JR200 | 82430 | LINK - CHECK, REAR DOOR | ||
| 82440JT30A | 82440M | COVER - CHECK LINK, RH | ||
| 82441JT30A | 82440N | COVER - CHECK LINK, LH | ||
| 82740JR20A | 82834UA | SEAL - REAR DOOR INSIDE | ||
| 82820JR200 | 82820 | MOULDING - REAR DOOR OUTSIDE, RH | ||
| 82821JR200 | 82821 | MOULDING - REAR DOOR OUTSIDE, LH | ||
| 82830JR200 | 82830 | WEATHERSTRIP - REAR DOOR, RH | ||
| 82831JR200 | 82831 | WEATHERSTRIP - REAR DOOR, LH | ||
| 82860JR200 | 82880 | SCREEN - SEALING, REAR DOOR | ||
| 82861JR200 | 82880+A | SCREEN - SEALING, REAR DOOR | ||
| H2400JR2MA | 82400Q | HINGE ASSY - REAR DOOR | ||
| H2401JR2MA | 82400QA | HINGE ASSY - REAR DOOR | ||
| H2420JR2MA | 82400QB | HINGE ASSY - REAR DOOR | ||
| H2421JR2MA | 82400QC | HINGE ASSY - REAR DOOR |
