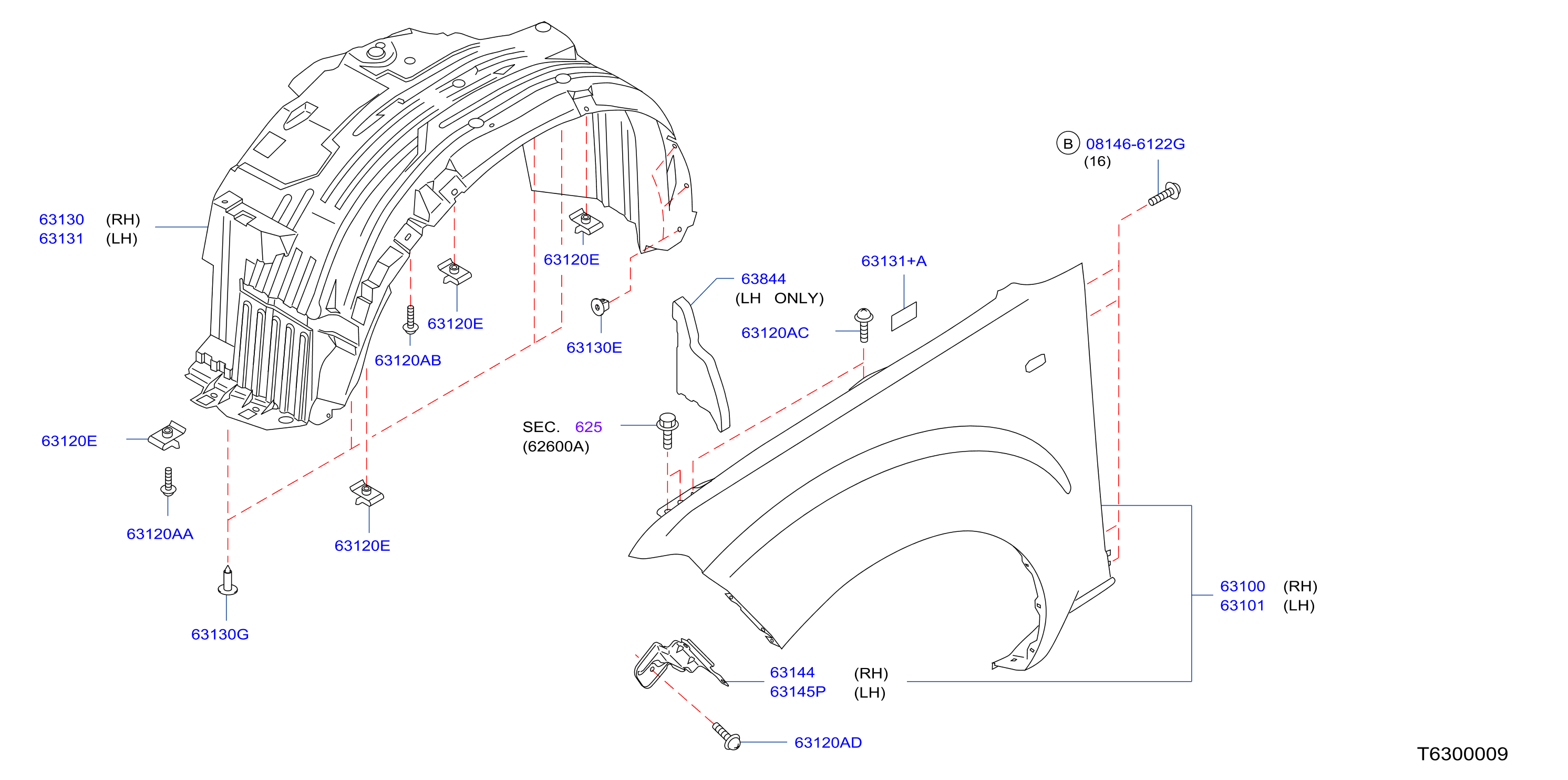

Parts in this diagram 21
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0128100831 | 63130E | GROMMET - SCREW | |||
| 0145100841 | 63120AA | SCREW | |||
| 0155309321 | 63130G | CLIP | |||
| 081466122G | 081466122G | BOLT - HEX | |||
| 17290JR30A | 63131+A | PROTECTOR - FRONT FENDER, LH | |||
| 63840EB700 | 63130 | PROTECTOR - FRONT FENDER, RH | |||
| 63840EB70A | 63130 | PROTECTOR - FRONT FENDER, RH | |||
| 63840JS500 | 63130 | PROTECTOR - FRONT FENDER, RH | |||
| 63840JS50A | 63130 | PROTECTOR - FRONT FENDER, RH | |||
| 63841EB700 | 63131 | PROTECTOR - FRONT FENDER, LH | |||
| 63841EB70A | 63131 | PROTECTOR - FRONT FENDER, LH | |||
| 63841JS500 | 63131 | PROTECTOR - FRONT FENDER, LH | |||
| 63841JS50A | 63131 | PROTECTOR - FRONT FENDER, LH | |||
| 63848D4001 | 63120E | CLIP | |||
| 638A1EB700 | 63844 | INSULATOR - FRONT FENDER | |||
| F3100JS5KC | 63100 | FENDER - FRONT, RH | |||
| F3100JS5MC | 63100 | FENDER - FRONT, RH | |||
| F3101JS5KC | 63101 | FENDER - FRONT, LH | |||
| F3101JS5MC | 63101 | FENDER - FRONT, LH | |||
| F3144EB7MD | 63144 | BRACKET - FRONT FENDER LOWER, RH | |||
| F3145EB7MD | 63145P | BRACKET - FRONT FENDER LOWER, LH |
