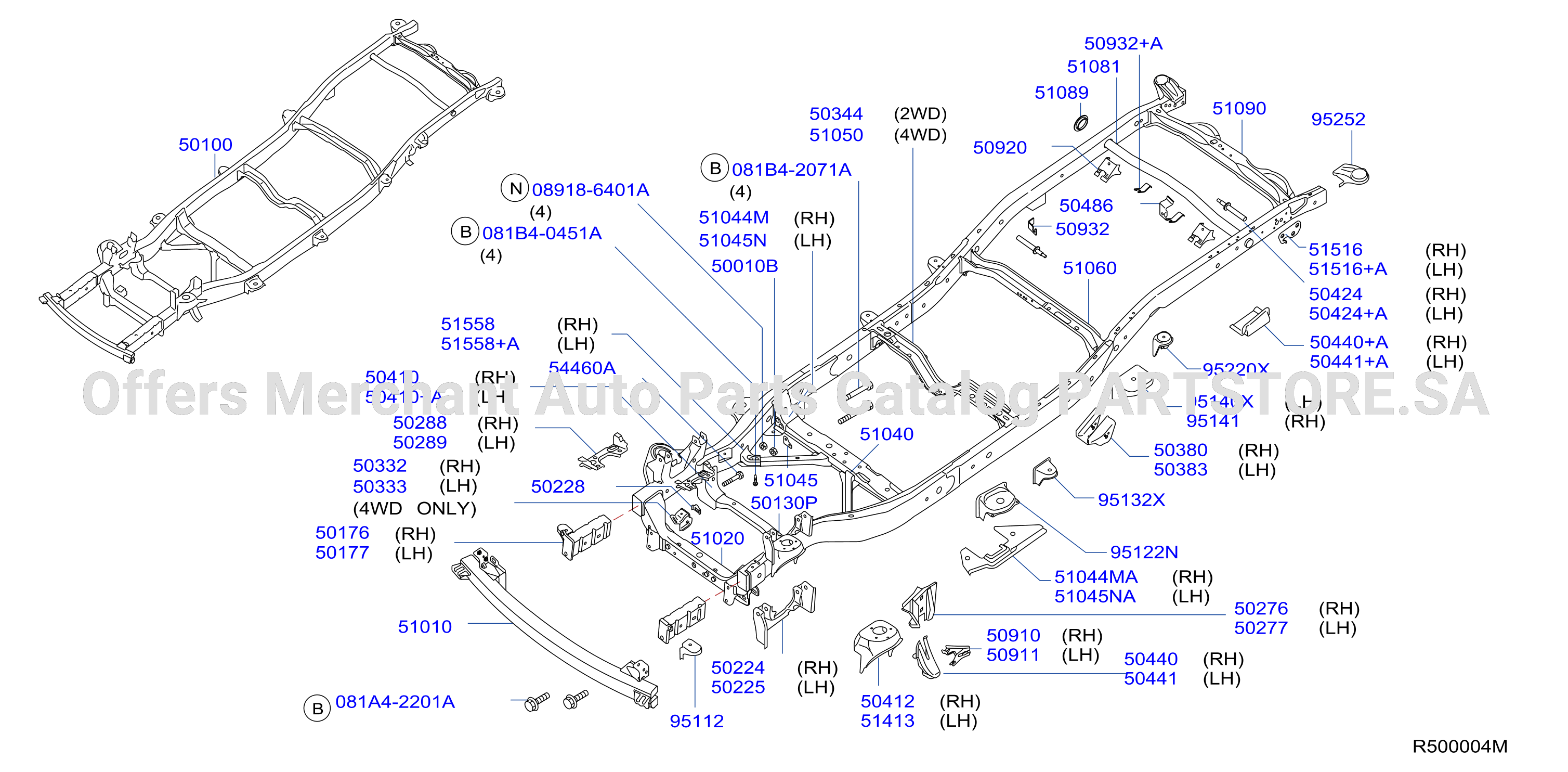

Frame Frame Assembly
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 500A-002-01 | Frame Frame Assembly | 2012 - 2013 |
BODY: CC
|
Parts in this diagram 68
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 081A42201A | 081A42201A | BOLT - FLANGE, HEX | |||
| 081B40451A | 081B40451A | BOLT - HEXAGON | |||
| 081B42071A | 081B42071A | BOLT - HEX | |||
| 089186401A | 089186401A | NUT - SLOCK | |||
| 501307S000 | 50130P | MEMBER ASSY - CROSS, 3RD | |||
| 50130ZT00A | 50130P | MEMBER ASSY - CROSS, 3RD | |||
| 50170EA030 | 50176 | EXTENSION ASSY - FRONT SIDE MEMBER | |||
| 50171EA030 | 50177 | EXTENSION ASSY - FRONT SIDE MEMBER | |||
| 50224EA030 | 50224 | BRACKET - UPPER LINK MOUTING, FRONT RH | |||
| 50225EA030 | 50225 | BRACKET - UPPER LINK MOUNTING, FRONT LH |
of
7
