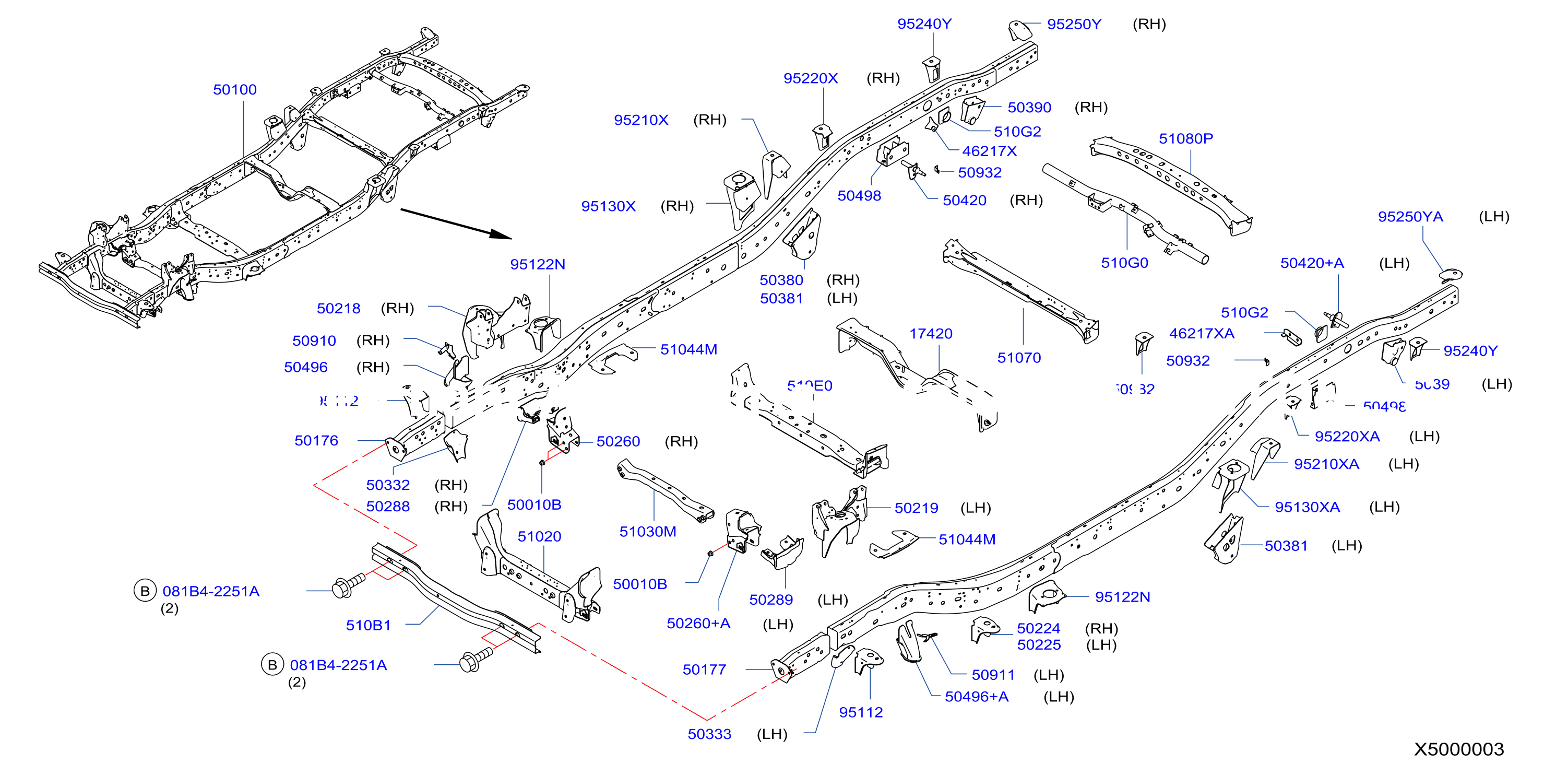

Frame Member Bracket
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 500A-007-01 | Frame Member Bracket | 2014 - 2017 |
BODY: DC
|
No illustration for this section
The full parts list is available below
Parts in this diagram 52
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 081B42251A | 081B42251A | BOLT - FLANGE, HEX | |||
| 501704JA0A | 50176 | EXTENSION ASSY - FRONT SIDE MEMBER | |||
| 501714JA0A | 50177 | EXTENSION ASSY - FRONT SIDE MEMBER | |||
| 502244JA0A | 50224 | BRACKET - UPPER LINK MOUTING, FRONT RH | |||
| 502254JA0A | 50225 | BRACKET - UPPER LINK MOUNTING, FRONT LH | |||
| 502604JA0A | 50260 | BRACKET ASSY - FRONT LOWER LINK MOUNTING | |||
| 503104JA0A | 50288 | BRACKET ASSY - ENGINE MOUNTING, RH | |||
| 503114JA0A | 50289 | BRACKET ASSY - ENGINE MOUNTING, LH | |||
| 504964JA0A | 50496 | BRACKET ASSY - FRONT BOUND BUMPER | |||
| 504974JA0A | 50496+A | BRACKET ASSY - FRONT BOUND BUMPER |
of
6
