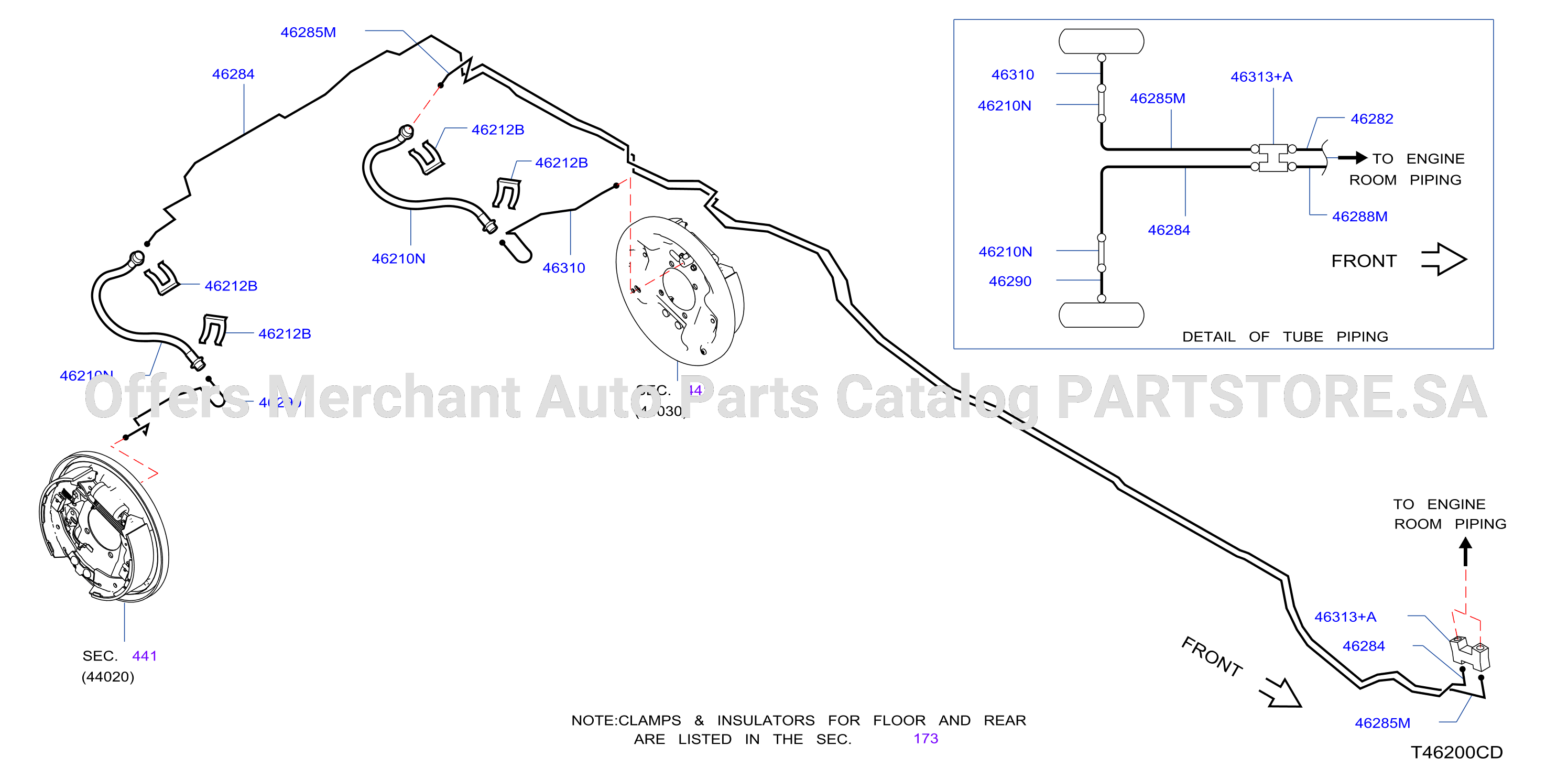

Brake Piping Control Body Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462D-002-01 | Brake Piping Control Body Piping | 2017 - 2020 |
AREA: PHI
BODY: D/C
DRIVE: 2WD
GRADE: HIGH/A
|
Parts in this diagram 10
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 462062J00A | 46212B | SPRING - LOCK, BRAKE HOSE | |||
| 462104JA6A | 46210N | HOSE ASSY - BRAKE | |||
| 462106KG6A | 46210N | HOSE ASSY - BRAKE | |||
| 462824JA0A | 46282 | TUBE ASSY - BRAKE, REAR | |||
| 462834JA0A | 46288M | TUBE ASSY - BRAKE, REAR LH | |||
| 462844JM5A | 46284 | TUBE ASSY - BRAKE, REAR | |||
| 462854JM3A | 46285M | TUBE ASSY - BRAKE, REAR | |||
| 462904JA1A | 46290 | TUBE ASSY - REAR BRAKE, RH | |||
| 463104JA1A | 46310 | TUBE ASSY - REAR BRAKE, LH | |||
| 4631340U00 | 46313+A | CONNECTOR - BRAKE TUBE |
