Fuel Piping Fuel Brake Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 173E-001-01 | Fuel Piping Fuel Brake Piping | 2017 - 2020 |
AREA: PHI
DRIVE: 2WD
ENGINE: YD25DDTI
GRADE: HIGH/A
TRANSMISSION: 6MT
|
No illustration for this section
The full parts list is available below

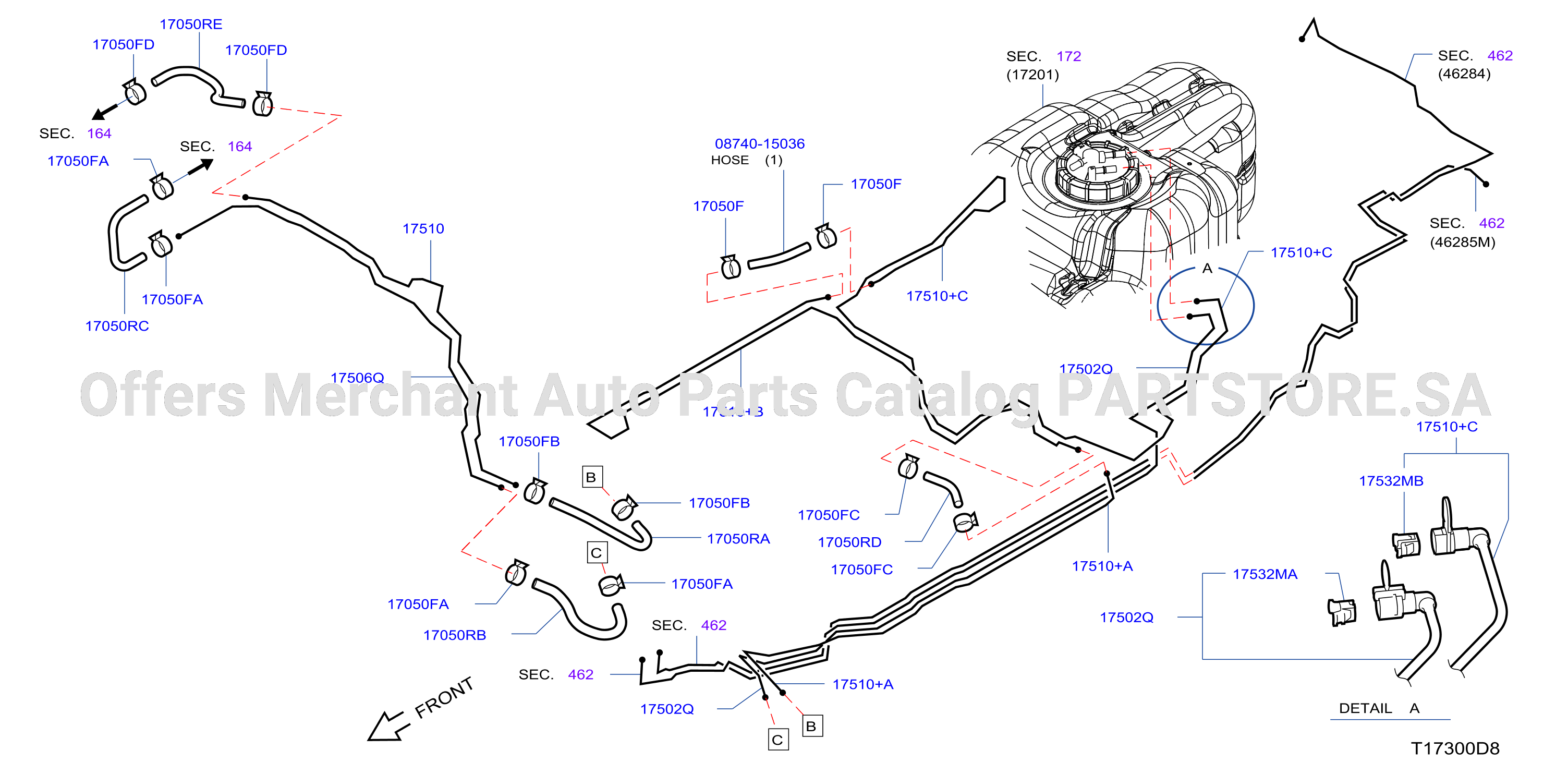

Parts in this diagram 25
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0155800401 | 17050FD | CLAMP | |||
| 0155800411 | 17050F | CLAMP | |||
| 0155800431 | 17050FA | CLAMP | |||
| 0874015036 | 0874015036 | HOSE - FUEL | |||
| 175024KV0A | 17502Q | TUBE ASSY - FUEL FEED | |||
| 175026KG1A | 17502Q | TUBE ASSY - FUEL FEED | |||
| 175064JA2D | 17506Q | TUBE - FUEL FEED | |||
| 175104JA3D | 17510 | TUBE - FUEL RETURN | |||
| 175104KV0A | 17510+B | TUBE - FUEL RETURN | |||
| 175104KV1A | 17510+C | TUBE - FUEL RETURN |
of
3
