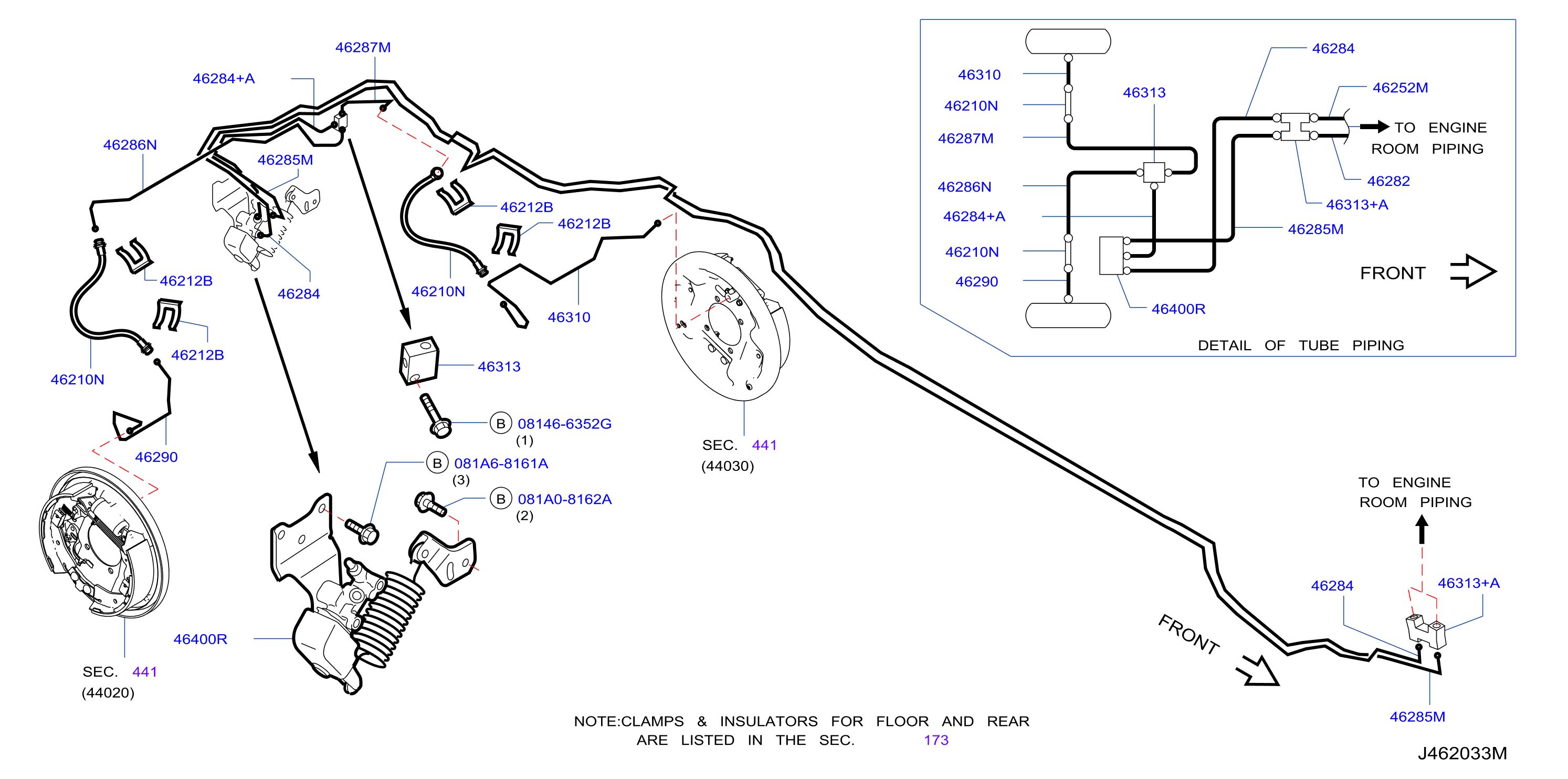

Brake Piping Control Body Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462C-004-01 | Brake Piping Control Body Piping | 2014 - ... |
AREA: PHI
BODY: D/C
GRADE: MID/W
|
No illustration for this section
The full parts list is available below
Parts in this diagram 18
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 081466352G | 081466352G | BOLT - HEX | |||
| 081A08162A | 081A08162A | BOLT - FLANGE | |||
| 081A68161A | 081A68161A | BOLT - FLANGE | |||
| 462062J00A | 46212B | SPRING - LOCK, BRAKE HOSE | |||
| 462104JA6A | 46210N | HOSE ASSY - BRAKE | |||
| 462524KD0E | 46252M | TUBE ASSY - BRAKE, MASTER CYLINDER TO REAR | |||
| 462824JA0B | 46282 | TUBE ASSY - BRAKE, REAR | |||
| 462844JM3A | 46284 | TUBE ASSY - BRAKE, REAR | |||
| 462844JM4A | 46284+A | TUBE ASSY - BRAKE, REAR | |||
| 462854JM2A | 46285M | TUBE ASSY - BRAKE, REAR |
