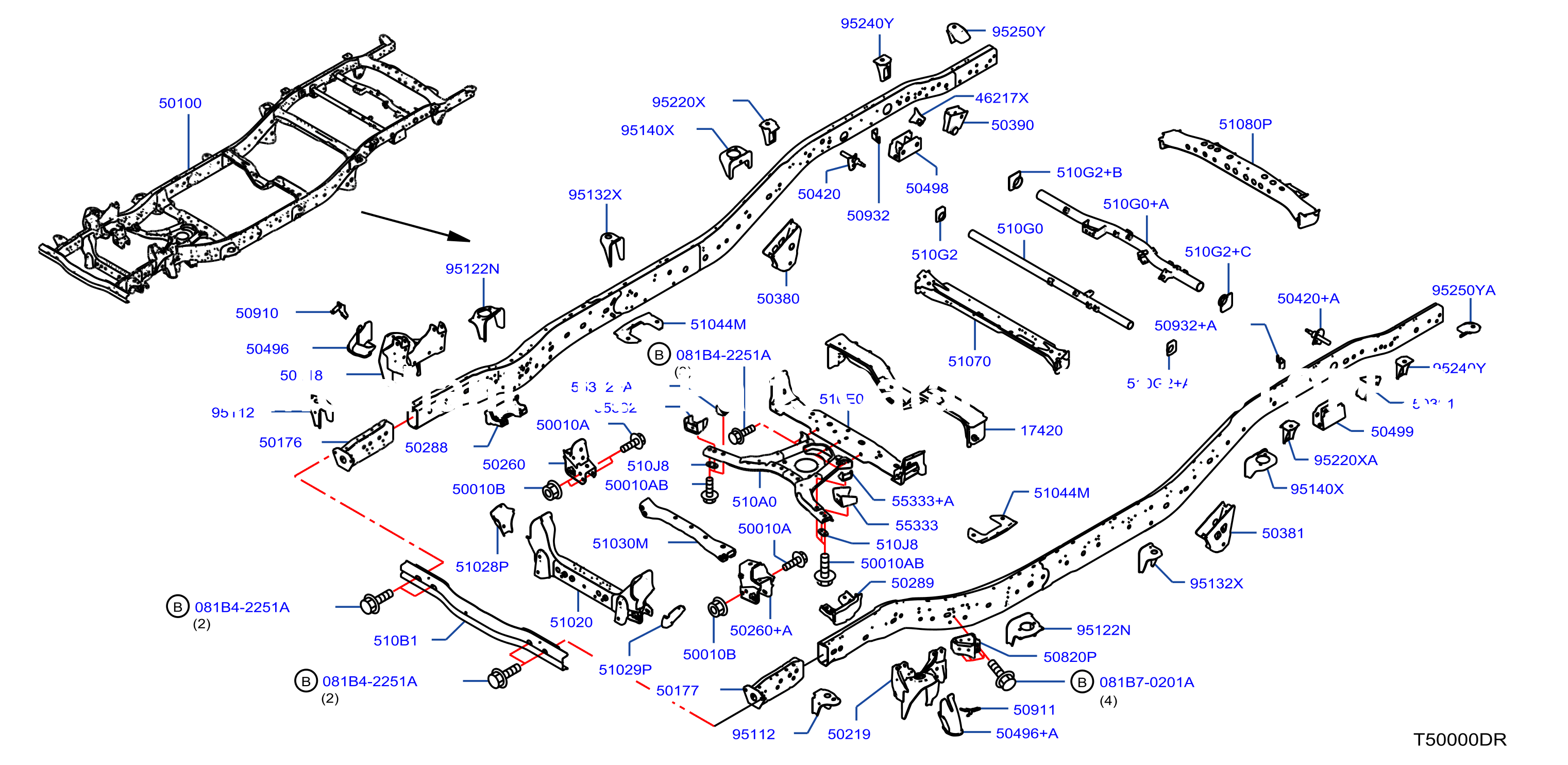

Frame Fitting Bracket
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 500B-004-01 | Frame Fitting Bracket | 2024 - ... |
BODY: D/C
ENGINE: YD25DDTI
|
Parts in this diagram 58
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 081B42251A | 081B42251A | BOLT - FLANGE, HEX | |||
| 081B70201A | 081B70201A | BOLT - FLANGE | |||
| 40056AX00A | 50010AB | BOLT | |||
| 501704JJ2A | 50176 | EXTENSION ASSY - FRONT SIDE MEMBER | |||
| 501714JJ2A | 50177 | EXTENSION ASSY - FRONT SIDE MEMBER | |||
| 502186KG0A | 50218 | BRACKET ASSY - FRONT SUSPENSION, RH | |||
| 502196KG0A | 50219 | BRACKET ASSY - FRONT SUSPENSION, LH | |||
| 502604JJ0A | 50260 | BRACKET ASSY - FRONT LOWER LINK MOUNTING | |||
| 50310JR70A | 50288 | BRACKET ASSY - ENGINE MOUNTING, RH | |||
| 50311JR70A | 50289 | BRACKET ASSY - ENGINE MOUNTING, LH |
of
6
