Brake Piping Control Rear Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462C-006-01 | Brake Piping Control Rear Piping | 2024 - 2024 |
AREA: SSA
BODY: D/C
ENGINE: YD25DDTI
GRADE: WF/LO
|
No illustration for this section
The full parts list is available below

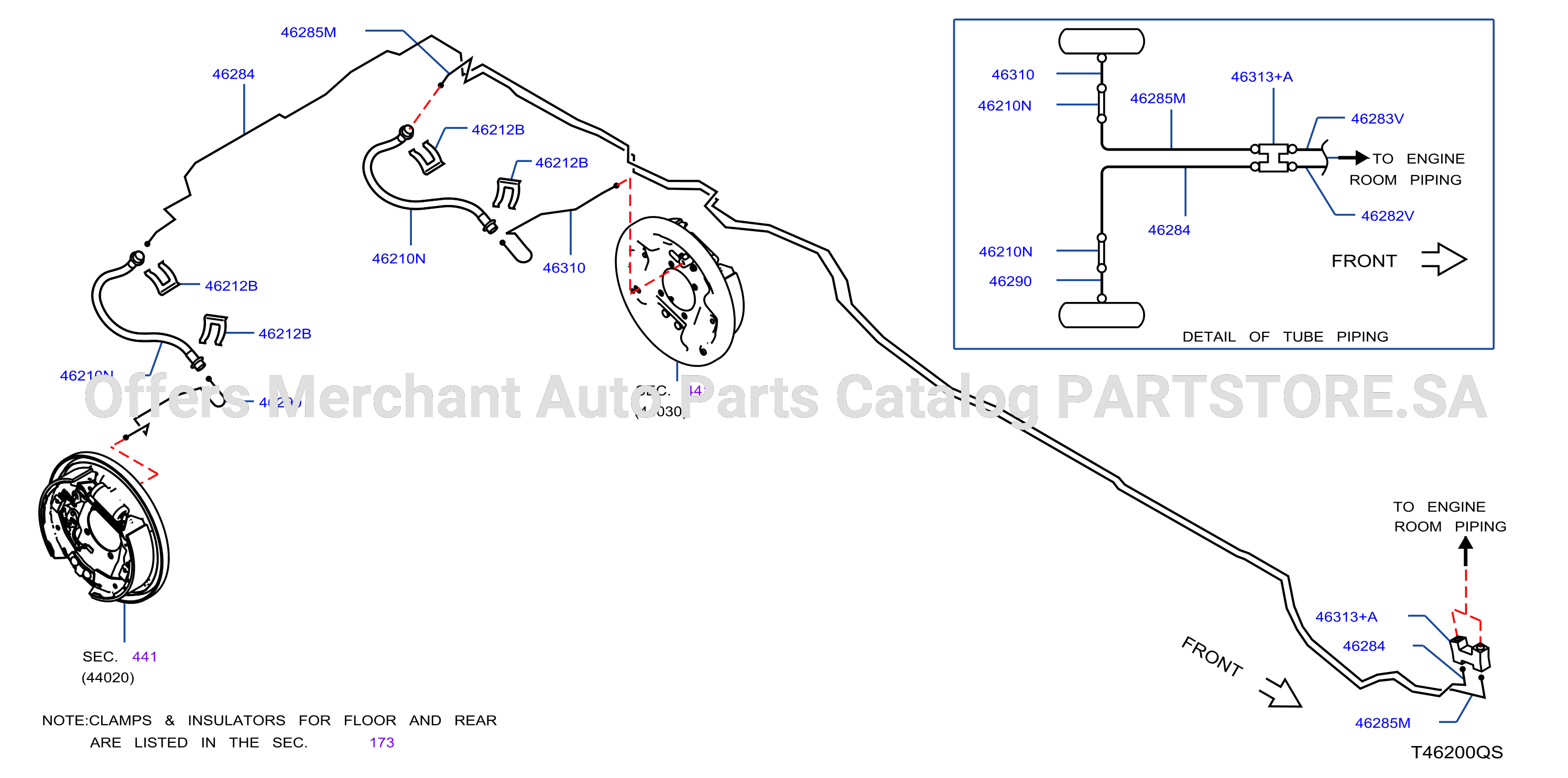

Parts in this diagram 11
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 462062J00A | 46212B | SPRING - LOCK, BRAKE HOSE | |||
| 462106KG2A | 46210N | HOSE ASSY - BRAKE | |||
| 462826KR1A | 46282V | TUBE ASSY - BRAKE, CONNECTOR TO REAR | |||
| 462836KR1A | 46283V | TUBE ASSY - BRAKE, CONNECTOR TO REAR | |||
| 462846KR1A | 46284 | TUBE ASSY - BRAKE, REAR | |||
| 462846KR3A | 46284 | TUBE ASSY - BRAKE, REAR | |||
| 462856KR1A | 46285M | TUBE ASSY - BRAKE, REAR | |||
| 462856KR3A | 46285M | TUBE ASSY - BRAKE, REAR | |||
| 462906KG1A | 46290 | TUBE ASSY - REAR BRAKE, RH | |||
| 463106KG1A | 46310 | TUBE ASSY - REAR BRAKE, LH |
