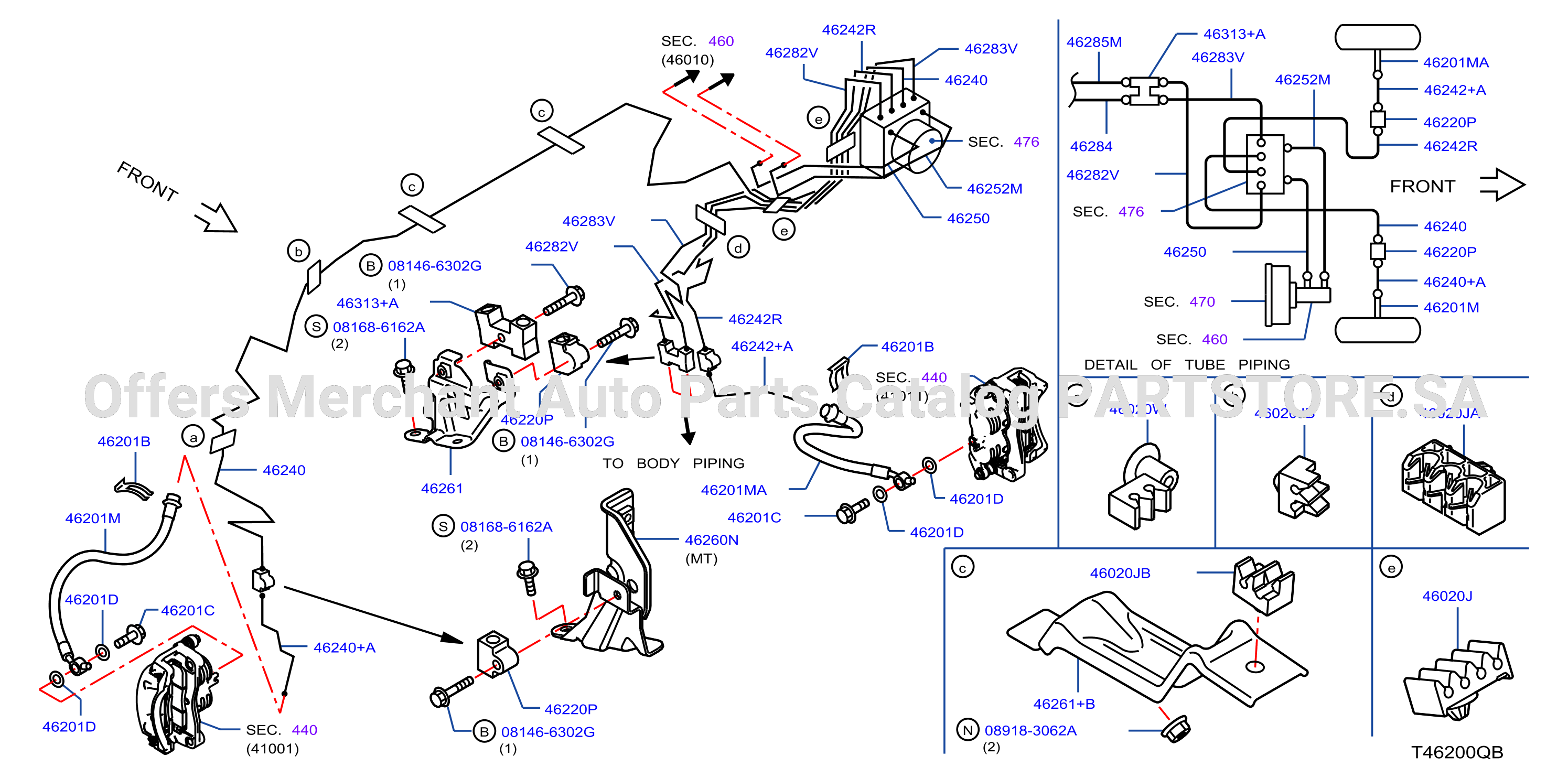

Brake Piping Control Front Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462C-003-01 | Brake Piping Control Front Piping | 2024 - 2024 |
AREA: SSA
BODY: D/C
ENGINE: YD25DDTI
GRADE: WF/LO
|
No illustration for this section
The full parts list is available below
Parts in this diagram 31
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0155200951 | 46020J | CLIP | |||
| 0246364000 | 46220P | CONNECTOR - BRAKE TUBE | |||
| 081466302G | 081466302G | BOLT - HEX | |||
| 081686162A | 081686162A | SCREW | |||
| 089183062A | 089183062A | NUT - FLANGE, HEX | |||
| 462062J00A | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 462106KG0A | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 462116KG0A | 46201MA | HOSE ASSY - BRAKE, FRONT | |||
| 46237A4600 | 46201D | GASKET - BRAKE HOSE | |||
| 462406KR0C | 46240 | TUBE ASSY - BRAKE, FRONT RH |
