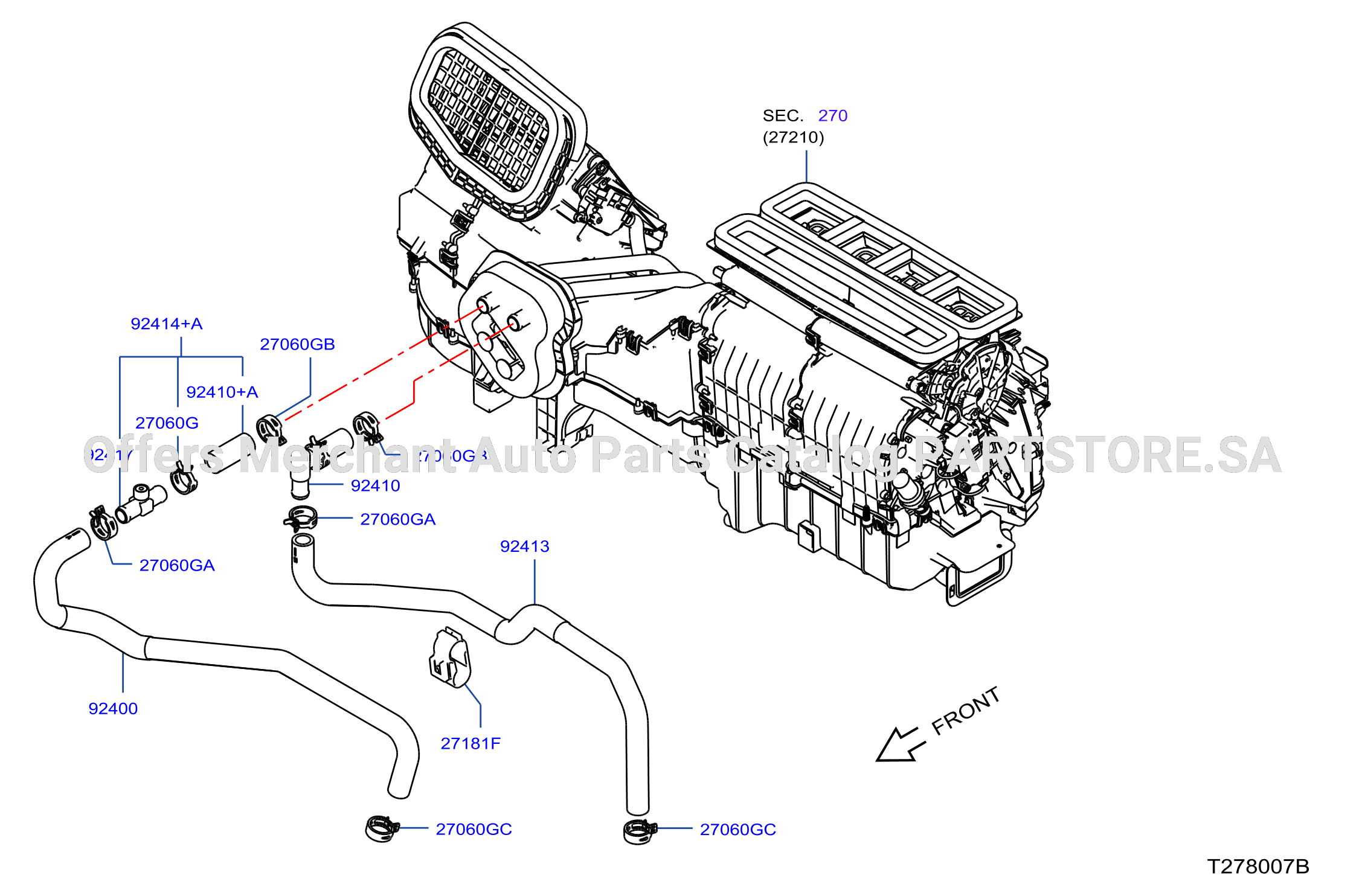

Heater Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 278A-001-02 | Heater Piping | 2021 - 2024 |
BODY: S/C
ENGINE: QR25DE
|
No illustration for this section
The full parts list is available below
Parts in this diagram 10
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0155800521 | 27060G | CLAMP | |||
| 924005XA0B | 92400 | HOSE - HEATER, INLET | |||
| 92408JR80A | 92414+A | HOSE ASSY - HEATER | |||
| 924105XA0A | 92410 | HOSE - HEATER, OUTLET | |||
| 92411JR80A | 92410+A | HOSE - HEATER, OUTLET | |||
| 924135XA0B | 92413 | HOSE - HEATER, OUTLET | |||
| 92500JK20A | 92417 | CONNECTOR - HEATER | |||
| 925274JA1A | 27060GA | CLAMP | |||
| 92527JD01A | 27060GB | CLAMP | |||
| 925552Y900 | 27181F | CLIP |
