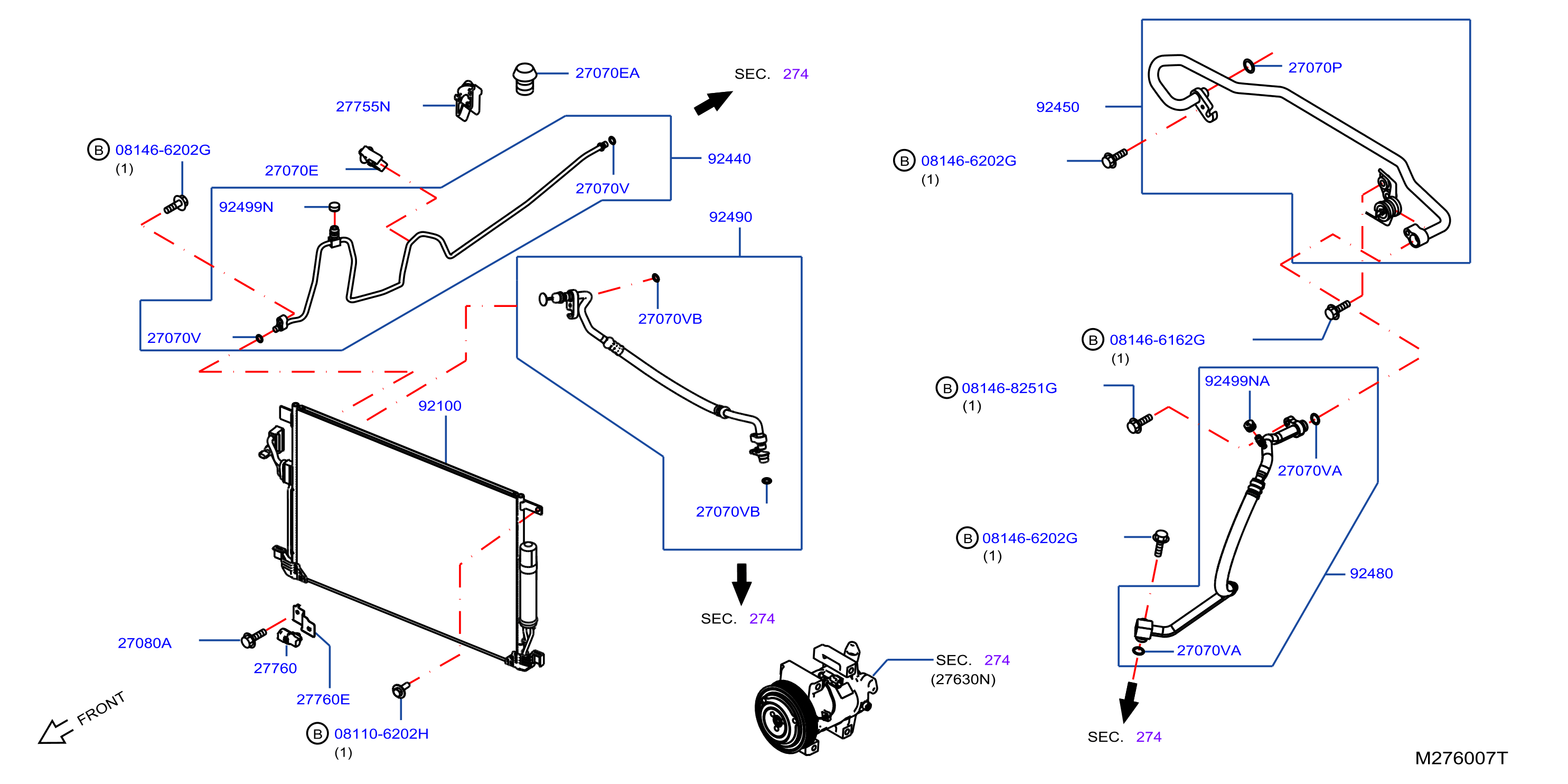

Condenser Liquid Tank Piping Ys23
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 276C-002-01 | Condenser Liquid Tank Piping Ys23 | 2019 - ... |
BODY: DC
ENGINE: YS23
|
No illustration for this section
The full parts list is available below
Parts in this diagram 28
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125N6011 | 27080A | BOLT | |||
| 081106202H | 081106202H | BOLT - HEX | |||
| 081466162G | 081466162G | BOLT - HEX | |||
| 081466202G | 081466202G | BOLT - HEX | |||
| 081468251G | 081468251G | BOLT - HEX | |||
| 110354KV0C | 27080A | BOLT | |||
| 24228LC50A | 27070E | CLIP | |||
| 277154JA0A | 27760E | BRACKET - AMBIENT SENSOR | |||
| 277155XA0A | 27760E | BRACKET - AMBIENT SENSOR | |||
| 277221VA0A | 27760 | SENSOR ASSY - AMBIENT |
