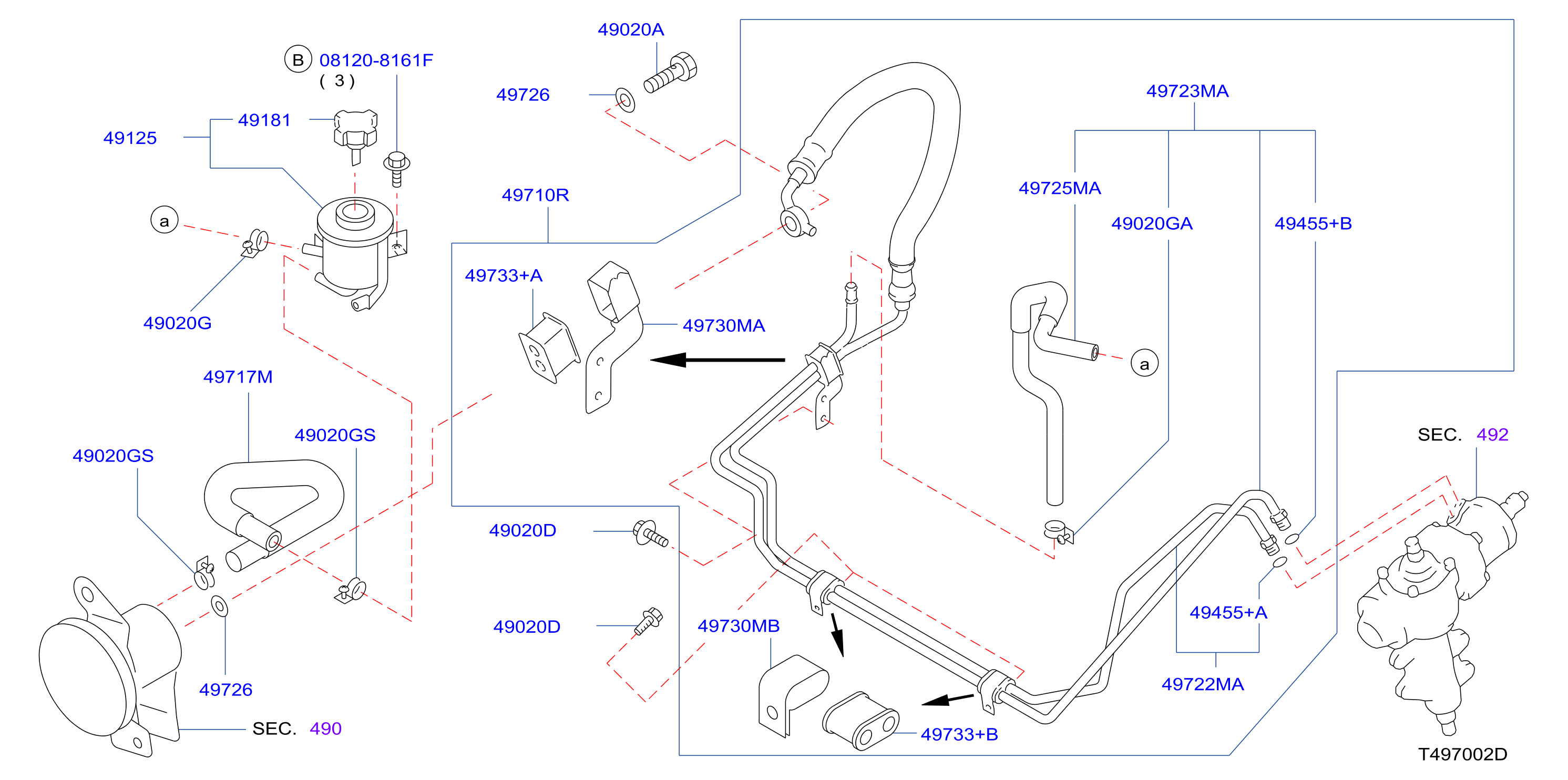

Power Steering Piping Td27
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 497A-001-01 | Power Steering Piping Td27 | 2018 - ... |
ENGINE: TD27
|
No illustration for this section
The full parts list is available below
Parts in this diagram 20
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0145600211 | 49020D | SCREW | |||
| 0161900011 | 49020A | BOLT | |||
| 081208161F | 081208161F | BOLT - HEX | |||
| 491803S860 | 49125 | TANK ASSY - RESERVOIR, POWER STEERING | |||
| 49181W1705 | 49181 | CAP ASSY - POWER STEERING RESERVOIR TANK | |||
| 4932803E00 | 49455+B | SEAL - O RING | |||
| 49710VK240 | 49710R | HOSE & TUBE SET - POWER STEERING | |||
| 49717VJ300 | 49717M | HOSE ASSY - SUCTION, POWER STEERING | |||
| 49720VK240 | 49722MA | HOSE & TUBE ASSY - PRESSURE, POWER STEERING | |||
| 49721VK240 | 49723MA | HOSE & TUBE ASSY - POWER STEERING |
of
2
