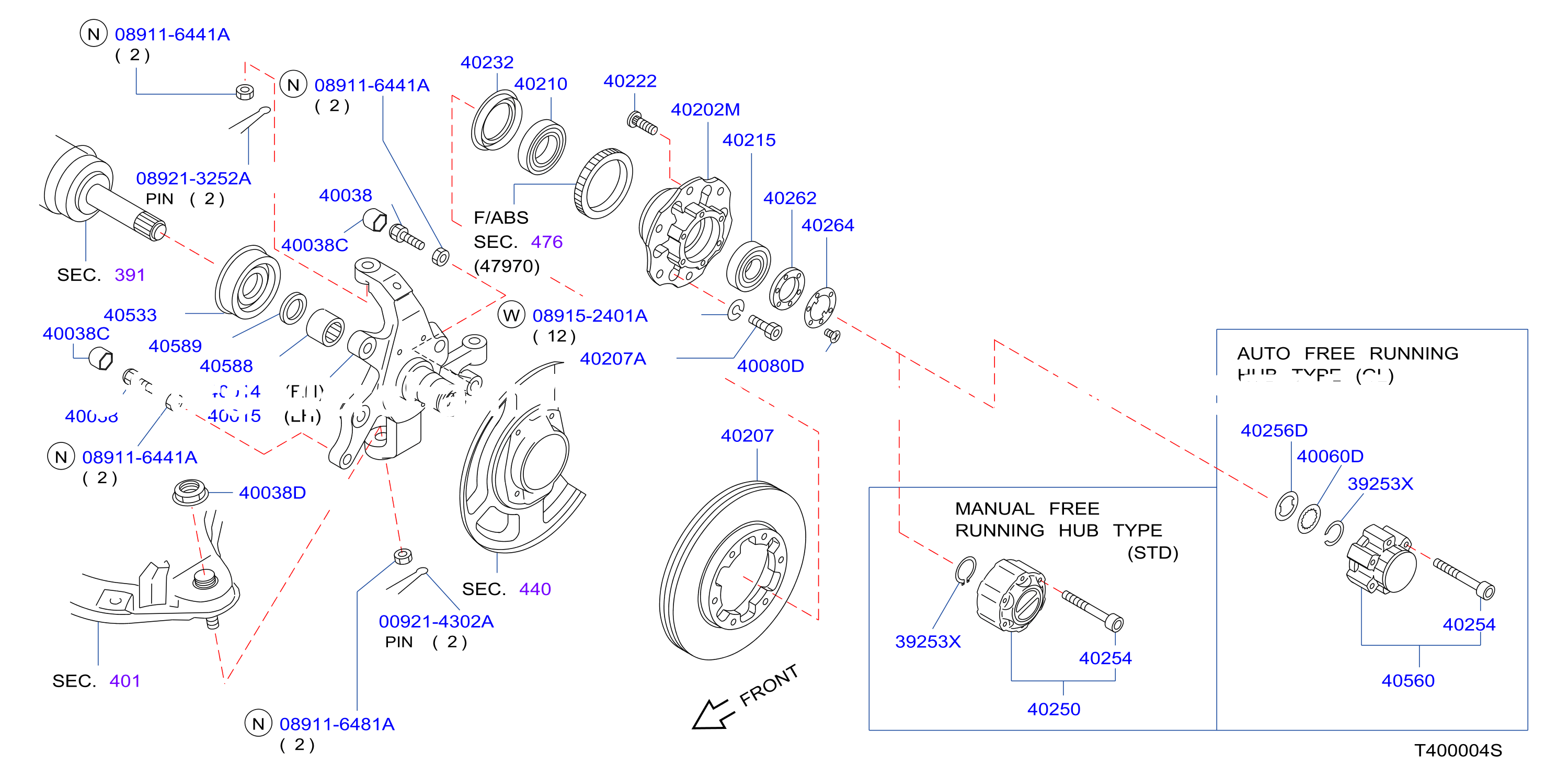

Front Axle
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 400B-001-01 | Front Axle | 2018 - ... |
DRIVE: 4WD
ENGINE: KA24
|
No illustration for this section
The full parts list is available below
Parts in this diagram 39
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 009214302A | 009214302A | PIN - COTTER, SPLI | |||
| 0112500411 | 40207A | BOLT - ROTOR | |||
| 0141400051 | 40080D | SCREW | |||
| 089116441A | 089116441A | NUT - HEX | |||
| 089116481A | 089116481A | NUT - HEX | |||
| 089152401A | 089152401A | WASHER - SPRING | |||
| 089213252A | 089213252A | PIN - COTTER, SPLI | |||
| 3925388G10 | 39253X | RING - SNAP | |||
| 3925388G11 | 39253X | RING - SNAP | |||
| 3925388G12 | 39253X | RING - SNAP |
