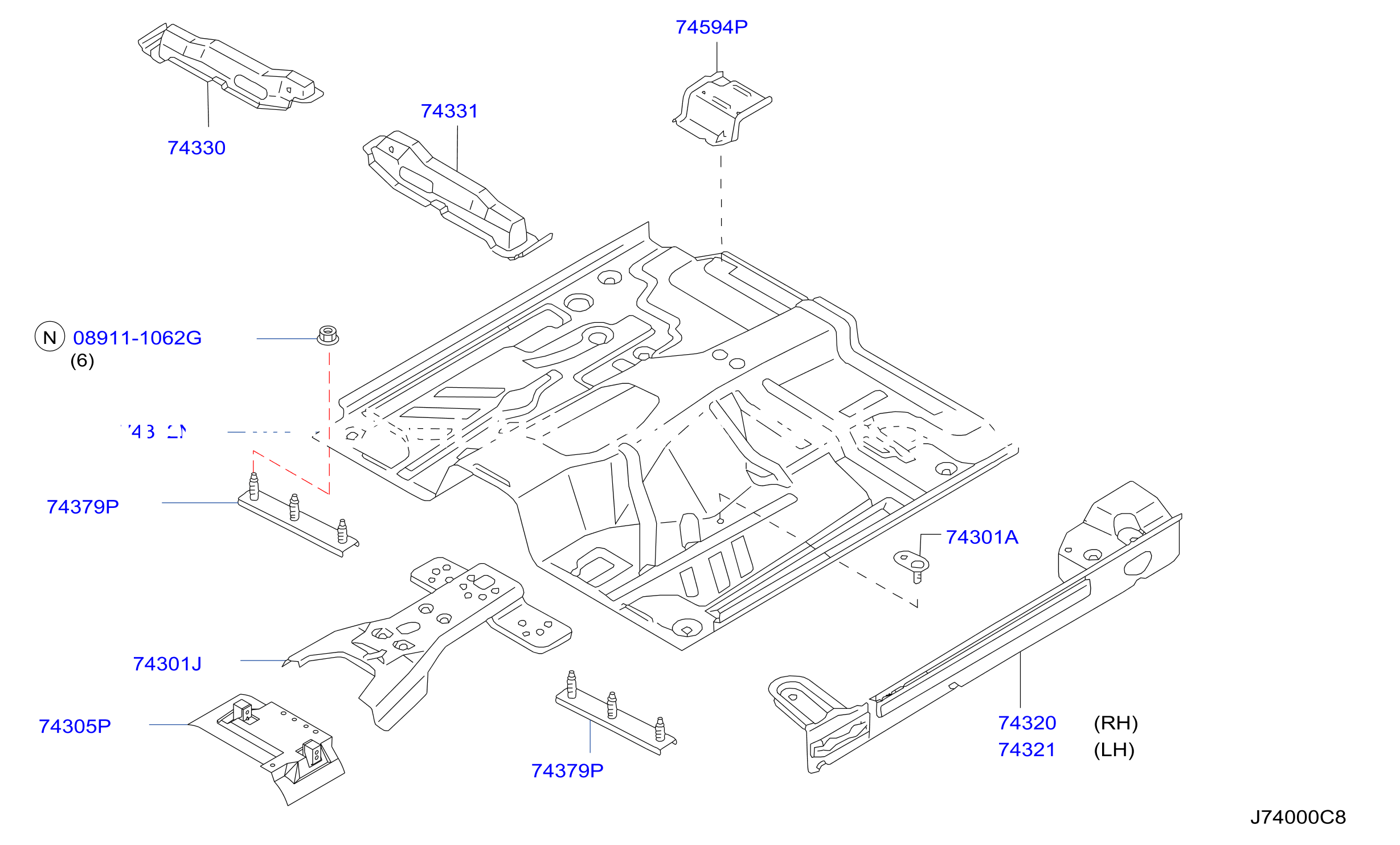

Floor Panel
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 740A-001-01 | Floor Panel | 2009 - 2011 |
BODY: SC
|
No illustration for this section
The full parts list is available below
Parts in this diagram 27
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 089111062G | 089111062G | NUT - HEX | |||
| 628652ST0A | 74379P | BOLT - PLATE | |||
| 743123S872 | 74312N | FLOOR - FRONT | |||
| 743302SA30 | 74330 | MEMBER ASSY - CROSS, 2ND RH | |||
| 743312SA30 | 74331 | MEMBER ASSY - CROSS, 2ND LH | |||
| 743702S700 | 74301J | REINFORCE - HAND BRAKE & SEAT BELT | |||
| 743862SA30 | 74305P | BRACKET ASSY - G SENSOR | |||
| 74386VJ200 | 74305P | BRACKET ASSY - G SENSOR | |||
| 743982S400 | 74301A | BOLT - PLATE | |||
| 749582SA30 | 74594P | BRACKET ASSY - JACK MOUNTING |
