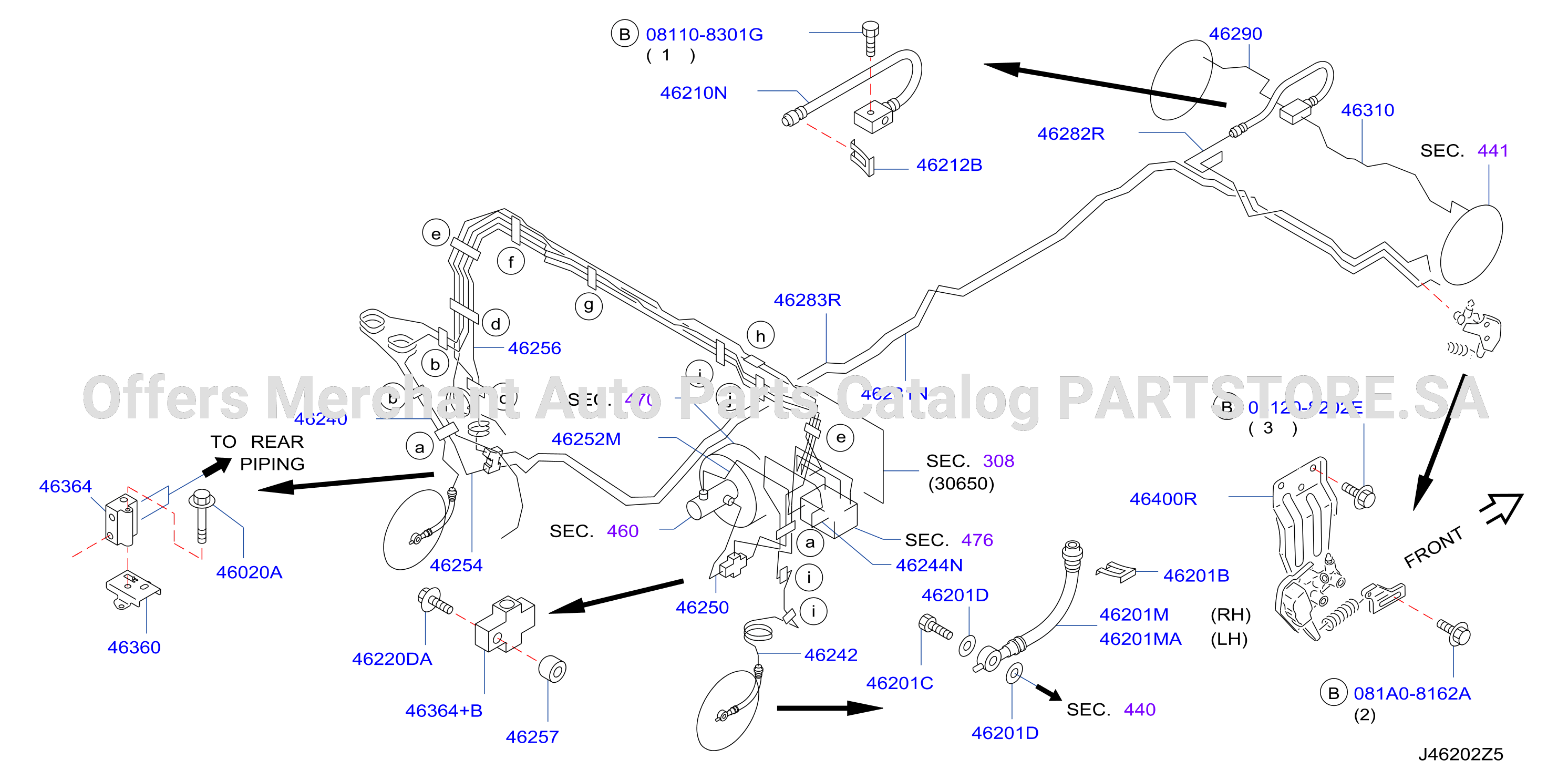

Brake Piping Control Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462C-006-01 | Brake Piping Control Piping | 2013 - ... |
BODY: SC
ENGINE: KA24
|
No illustration for this section
The full parts list is available below
Parts in this diagram 38
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0143600731 | 46220DA | SCREW | |||
| 0246234000 | 46364+B | CONNECTOR - BRAKE TUBE | |||
| 081108301G | 081108301G | BOLT - HEX | |||
| 081208202E | 081208202E | BOLT - HEX | |||
| 081A08162A | 081A08162A | BOLT - FLANGE | |||
| 462062J00A | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 462102S51C | 46210N | HOSE ASSY - BRAKE | |||
| 462103S41C | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 46210VK80A | 46210N | HOSE ASSY - BRAKE | |||
| 462113S41C | 46201MA | HOSE ASSY - BRAKE, FRONT |
