| Code | Name | Period | Specifications |
|---|---|---|---|

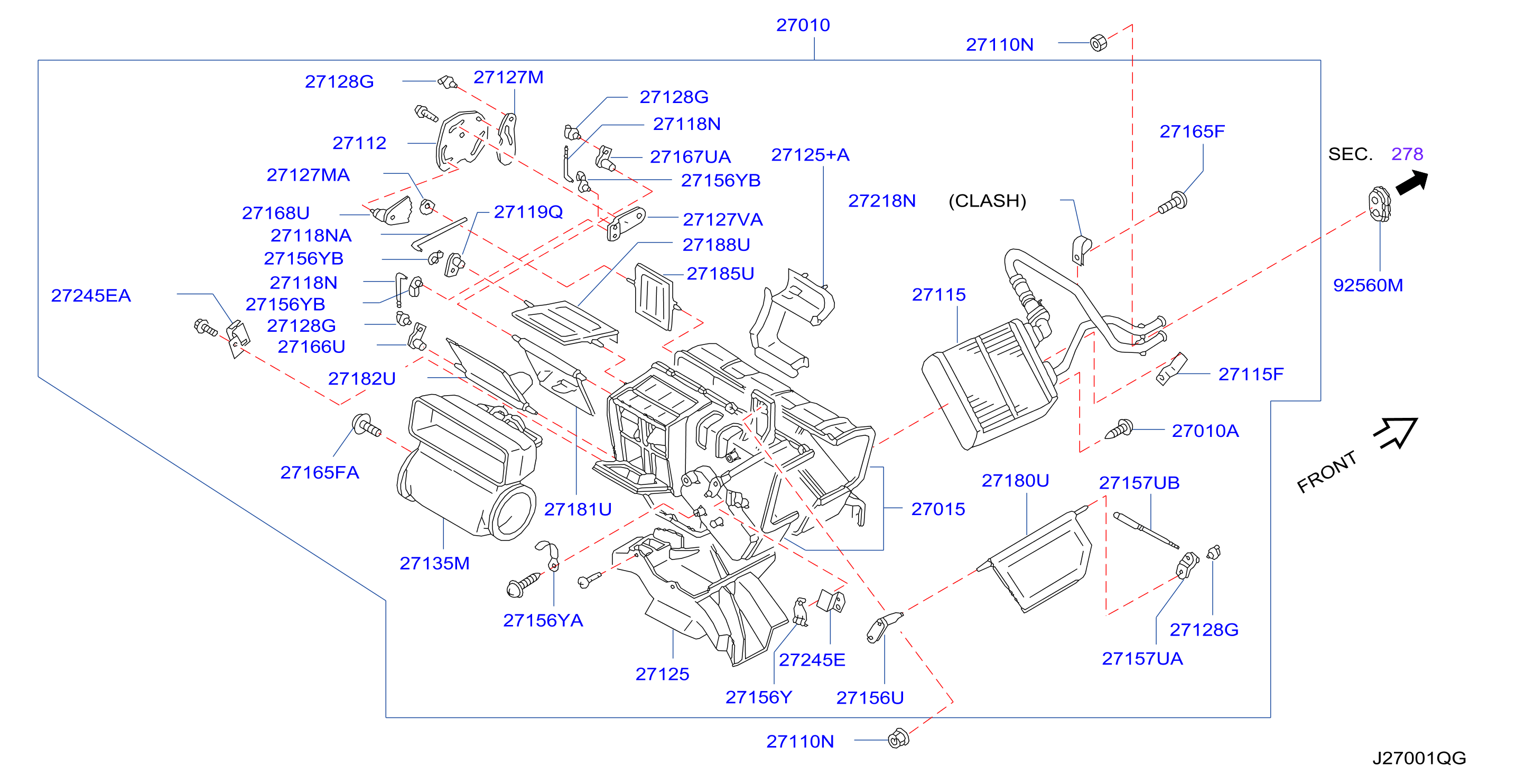

| 270A-001-01 | Heater Blower Unit Heater Unit | 2010 - ... |
BODY: SC
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 0122500371 | 27110N | NUT | ||
| 27110VK501 | 27010 | HEATING UNIT ASSY - FRONT | ||
| 271112Y00A | 27165F | SCREW | ||
| 271112Y00B | 27165FA | SCREW | ||
| 271203S100 | 27015 | CASE ASSY - FRONT HEATER | ||
| 27125VJ400 | 27125 | DUCT - FOOT | ||
| 271263S810 | 27245E | CLIP | ||
| 271263S815 | 27245EA | CLIP | ||
| 2713116E60 | 27125+A | DUCT - FOOT | ||
| 27135VK306 | 27135M | DUCT ASSY - VENTILATOR | ||
| 27137D4000 | 27128G | HOLDER - ROD | ||
| 27140VK500 | 27115 | CORE ASSY - FRONT HEATER | ||
| 2714810V00 | 27115F | SUPPORT - HEATER CORE | ||
| 2715613E00 | 27127VA | LINK - AIR DOOR | ||
| 2715613E60 | 27156U | LEVER - AIR MIX DOOR | ||
| 27156S0100 | 27156Y | CLIP | ||
| 2715783G00 | 27157UB | LEVER - HEATER COCK | ||
| 2715786G00 | 27157UA | LEVER - HEATER COCK | ||
| 2716113E00 | 27167UA | LEVER - DEFROSTER | ||
| 2716213E00 | 27166U | LEVER - VENTILATION, NO2 | ||
| 2716313E00 | 27119Q | LEVER - HEATER UNIT | ||
| 2716413E00 | 27127MA | LINK - AIR DOOR, NO 1 | ||
| 2716760A00 | 27127M | LINK - AIR DOOR, NO 1 | ||
| 2716842E00 | 27168U | LEVER - FOOT | ||
| 271690Y300 | 27112 | LINK ASSY - SIDE | ||
| 2717101E65 | 27118N | ROD | ||
| 2717101E70 | 27118NA | ROD | ||
| 2717301P00 | 27156YB | CLIP | ||
| 2718013E00 | 27180U | DOOR - FRONT HEATER | ||
| 271813S100 | 27181U | DOOR ASSY - VENTILATION | ||
| 2718275P00 | 27182U | DOOR ASSY - VENTILATION | ||
| 2718360A00 | 27185U | DOOR ASSY - FOOT | ||
| 2718475P00 | 27188U | DOOR ASSY - DEFROSTER | ||
| 271992J00A | 27010A | SCREW | ||
| 272184H501 | 27218N | BRACKET - SUB HARNESS | ||
| 2755070T00 | 27156YA | CLIP | ||
| 9258001F00 | 92560M | GROMMET - RUBBER |
