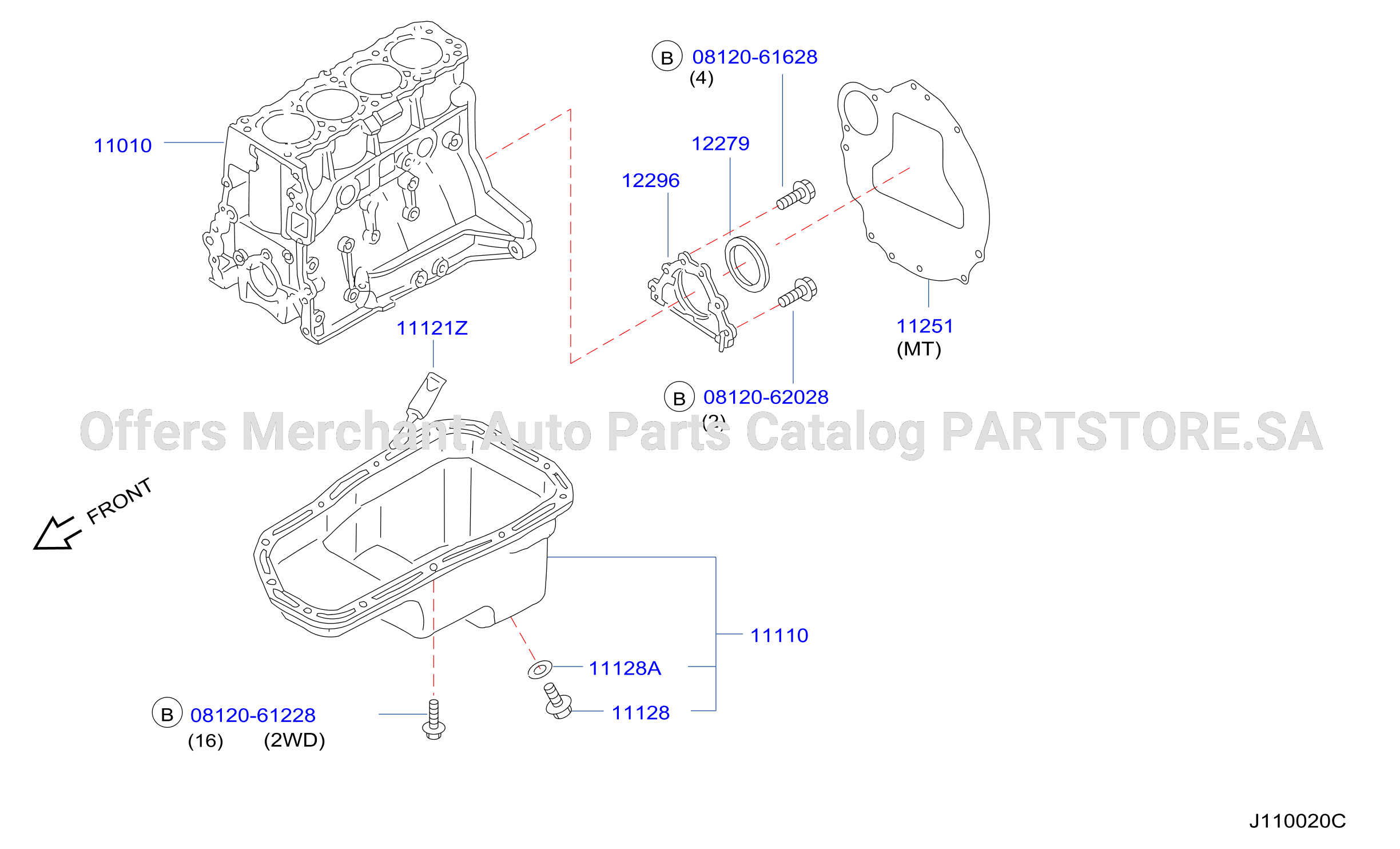

Cylinder Block Oil Pan Assembly
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 110A-001-01 | Cylinder Block Oil Pan Assembly | 2010 - ... |
ENGINE: KA24DE
|
No illustration for this section
The full parts list is available below
Parts in this diagram 13
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0812061228 | 0812061228 | BOLT - HEX | |||
| 0812061628 | 0812061628 | BOLT - HEX | |||
| 0812062028 | 0812062028 | BOLT - HEX | |||
| 11000F452A | 11010 | BLOCK ASSY - CYLINDER | |||
| 11000F452B | 11010 | BLOCK ASSY - CYLINDER | |||
| 1102601M02 | 11128A | WASHER - DRAIN PLUG | |||
| 1111007G01 | 11110 | PAN ASSY - OIL | |||
| 1112801M00 | 11128 | PLUG - DRAIN | |||
| 122795L300 | 12279 | SEAL - OIL, CRANKSHAFT REAR | |||
| 122795L310 | 12279 | SEAL - OIL, CRANKSHAFT REAR |
