| Code | Name | Period | Specifications |
|---|---|---|---|

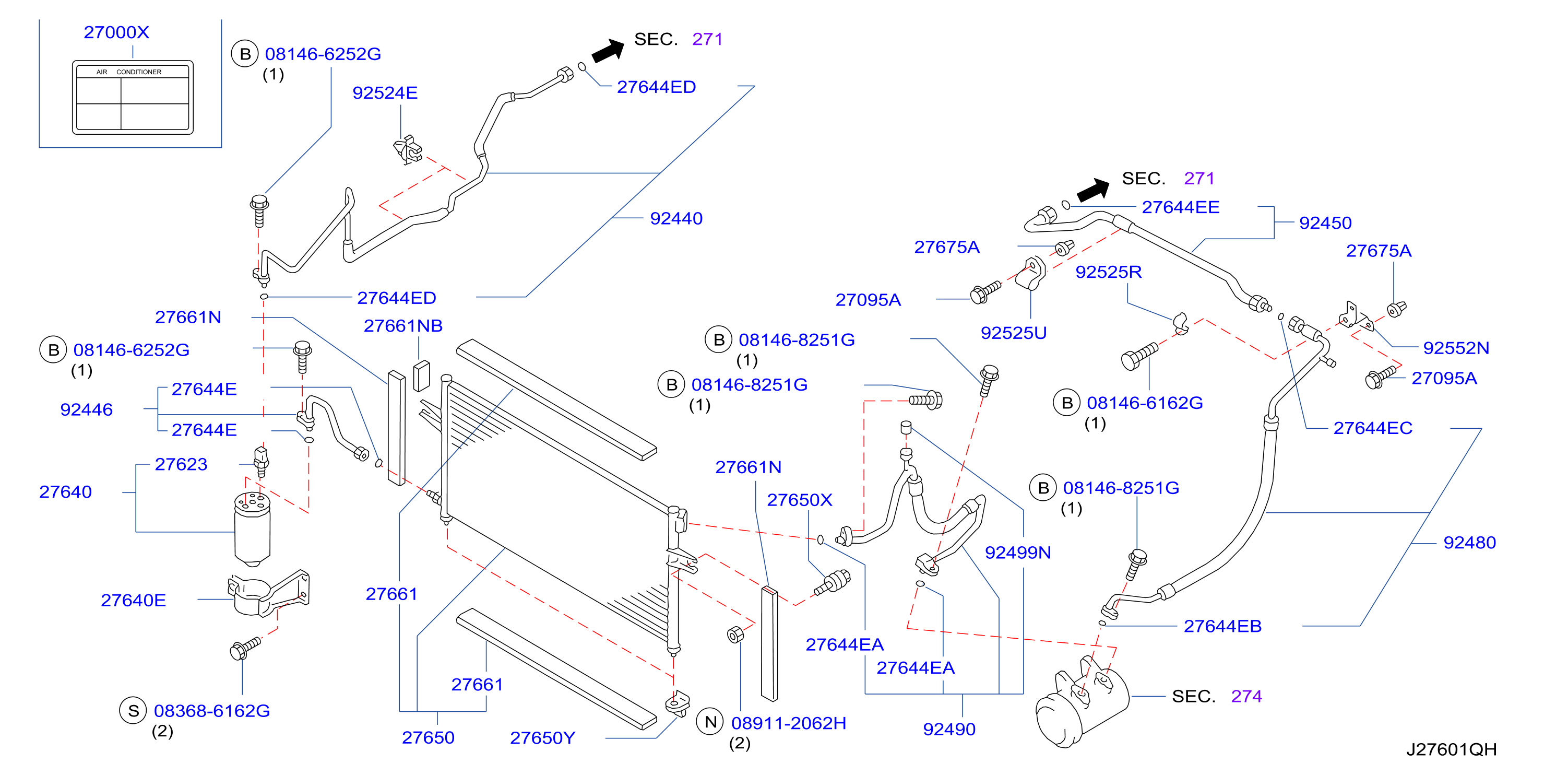

| 276B-001-01 | Condenser Liquid Tank Piping | 2013 - ... |
BODY: SC
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 0128100171 | 27675A | GROMMET - SCREW | ||
| 0146600071 | 27095A | SCREW | ||
| 081466162G | 081466162G | BOLT - HEX | ||
| 081466252G | 081466252G | BOLT - HEX | ||
| 081468251G | 081468251G | BOLT - HEX | ||
| 083686162G | 083686162G | SCR - HEX HD, PP W | ||
| 089112062H | 089112062H | NUT - HEX | ||
| 17557M7300 | 92524E | CLIP | ||
| 2709079909 | 27000X | LABEL - CAUTION, AIR CONDITIONER | ||
| 2709079967 | 27000X | LABEL - CAUTION, AIR CONDITIONER | ||
| 92110VJ200 | 27650 | CONDENSER ASSY | ||
| 92110VK600 | 27650 | CONDENSER ASSY | ||
| 921182S40A | 27650X | MOUNTING - RUBBER, CONDENSER UPPER | ||
| 921192S400 | 27650Y | MOUNTING - RUBBER, CONDENSER, LOWER | ||
| 92119VK600 | 27650Y | MOUNTING - RUBBER, CONDENSER, LOWER | ||
| 921310V571 | 27640 | TANK ASSY - LIQUID | ||
| 92131VC70C | 27640 | TANK ASSY - LIQUID | ||
| 92135VJ900 | 27640E | BRACKET - LIQUID TANK | ||
| 92135VL30A | 27640E | BRACKET - LIQUID TANK | ||
| 921374P200 | 27623 | SWITCH ASSY - PRESSURE | ||
| 92137VC70C | 27623 | SWITCH ASSY - PRESSURE | ||
| 921820W010 | 27661 | SEAL - CONDENSER | ||
| 921842S410 | 27661NB | SEAL - CONDENSER, SIDE | ||
| 921843S400 | 27661N | SEAL - CONDENSER, SIDE | ||
| 92184VL20A | 27661NB | SEAL - CONDENSER, SIDE | ||
| 92185VL20A | 27661N | SEAL - CONDENSER, SIDE | ||
| 92440VJ500 | 92440 | PIPE ASSY - FRONT COOLER, HIGH | ||
| 92440VL01A | 92440 | PIPE ASSY - FRONT COOLER, HIGH | ||
| 92446VJ200 | 92446 | PIPE ASSY COMPL - COOLER | ||
| 924503S400 | 92450 | PIPE - FRONT COOLER, LOW | ||
| 92450VM30A | 92450 | PIPE - FRONT COOLER, LOW | ||
| 92471N8210 | 27644E | SEAL - O RING | ||
| 92472N8210 | 27644EA | SEAL - O RING | ||
| 92473N8210 | 27644EC | SEAL - O RING | ||
| 92474N8210 | 27644EB | SEAL - O RING | ||
| 924802S615 | 92480 | HOSE - FLEXIBLE, LOW | ||
| 92480VK510 | 92480 | HOSE - FLEXIBLE, LOW | ||
| 92480VL23A | 92480 | HOSE - FLEXIBLE, LOW | ||
| 924902S605 | 92490 | HOSE - FLEXIBLE, HIGH | ||
| 92490VL20A | 92490 | HOSE - FLEXIBLE, HIGH | ||
| 92490VM30A | 92490 | HOSE - FLEXIBLE, HIGH | ||
| 9249989920 | 92499N | CAP - CHARGE VALVE | ||
| 92552VL30A | 92552N | BRACKET - TUBE CLIP | ||
| 92553VL30A | 92525R | CLIP | ||
| 92554VL30A | 92525U | CLIP |
