| Code | Name | Period | Specifications |
|---|---|---|---|

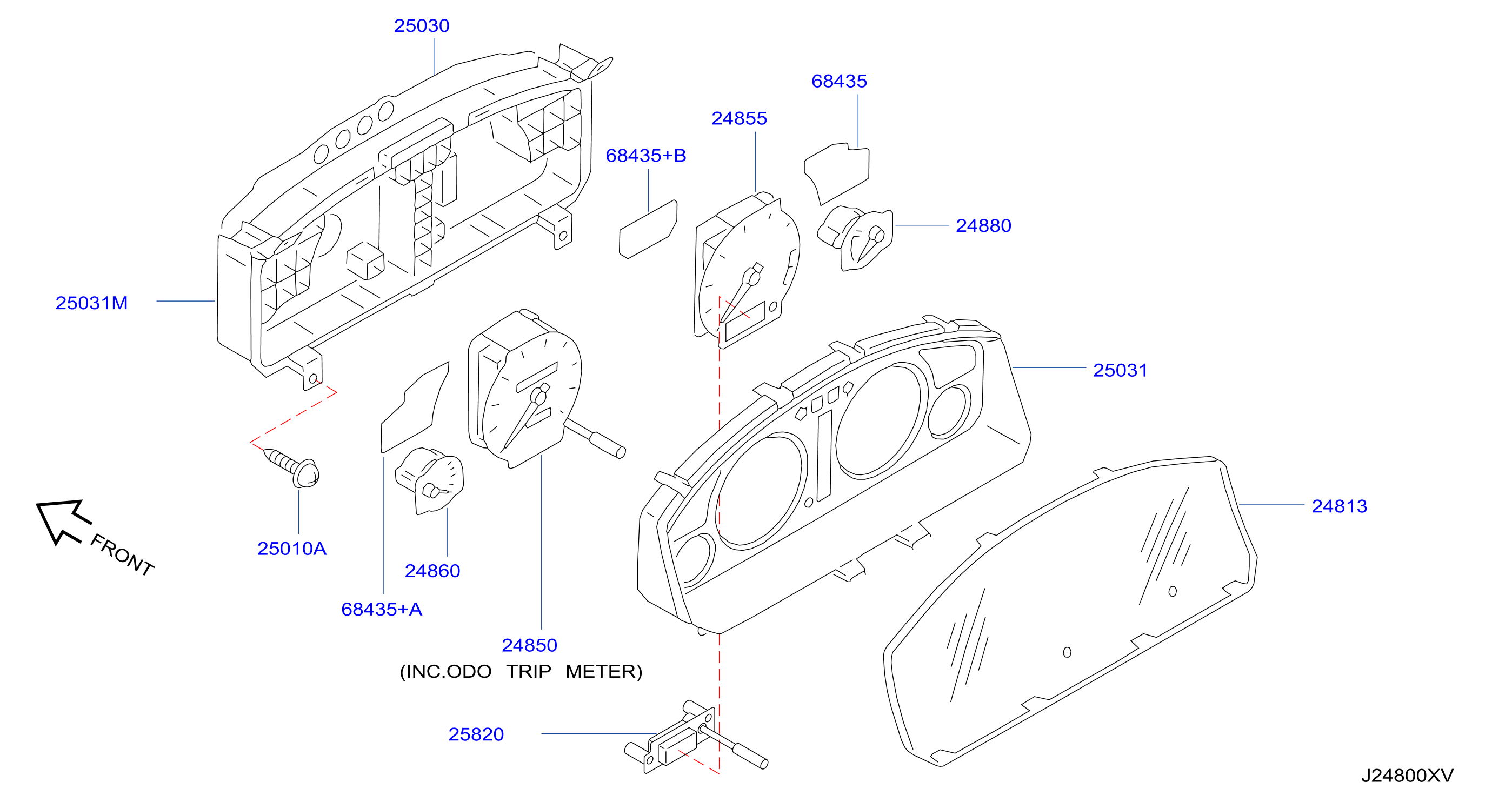

| 248A-003-01 | Instrument Meter Gauge Front 2 | 2009 - 2013 |
BODY: SC
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 0145100581 | 25010A | BOLT | ||
| 24811VJ210 | 25031M | HOUSING - COMBINATION METER, LOWER | ||
| 24811VJ400 | 25031M | HOUSING - COMBINATION METER, LOWER | ||
| 24812VJ210 | 25031 | HOUSING - COMBINATION METER, UPPER | ||
| 24812VJ400 | 25031 | HOUSING - COMBINATION METER, UPPER | ||
| 248130W900 | 24813 | COVER - FRONT, COMBINATION METER | ||
| 24813VJ400 | 24813 | COVER - FRONT, COMBINATION METER | ||
| 24813VM01A | 24813 | COVER - FRONT, COMBINATION METER | ||
| 24814VJ402 | 25030 | PLATE ASSY - PRINTED CIRCUIT | ||
| 24814VJ405 | 25030 | PLATE ASSY - PRINTED CIRCUIT | ||
| 24814VJ406 | 25030 | PLATE ASSY - PRINTED CIRCUIT | ||
| 24814VJ463 | 25030 | PLATE ASSY - PRINTED CIRCUIT | ||
| 24820VJ400 | 24850 | SPEEDOMETER ASSY | ||
| 24820VJ401 | 24850 | SPEEDOMETER ASSY | ||
| 24820VJ410 | 24850 | SPEEDOMETER ASSY | ||
| 24820VJ463 | 24850 | SPEEDOMETER ASSY | ||
| 24820VJ473 | 24850 | SPEEDOMETER ASSY | ||
| 24820VN03B | 24850 | SPEEDOMETER ASSY | ||
| 24825VJ410 | 24855 | TACHOMETER ASSY | ||
| 24825VJ463 | 24855 | TACHOMETER ASSY | ||
| 24830VJ210 | 24860 | METER ASSY - FUEL | ||
| 24830VJ211 | 24860 | METER ASSY - FUEL | ||
| 24830VJ400 | 24860 | METER ASSY - FUEL | ||
| 24835VJ210 | 24880 | METER ASSY - WATER TEMPERATURE | ||
| 24835VJ211 | 24880 | METER ASSY - WATER TEMPERATURE | ||
| 24835VJ400 | 24880 | METER ASSY - WATER TEMPERATURE | ||
| 24880VJ200 | 68435 | LENS - WARNING LAMP | ||
| 24880VJ210 | 68435 | LENS - WARNING LAMP | ||
| 24885VJ214 | 68435+A | LENS - WARNING LAMP | ||
| 24885VJ400 | 68435+A | LENS - WARNING LAMP | ||
| 24885VJ500 | 68435+A | LENS - WARNING LAMP | ||
| 248905S200 | 68435+B | LENS - WARNING LAMP | ||
| 24890VJ614 | 68435+B | LENS - WARNING LAMP | ||
| 258208M100 | 25820 | CLOCK ASSY - DIGITAL | ||
| 258209M100 | 25820 | CLOCK ASSY - DIGITAL | ||
| 258209M110 | 25820 | CLOCK ASSY - DIGITAL |
