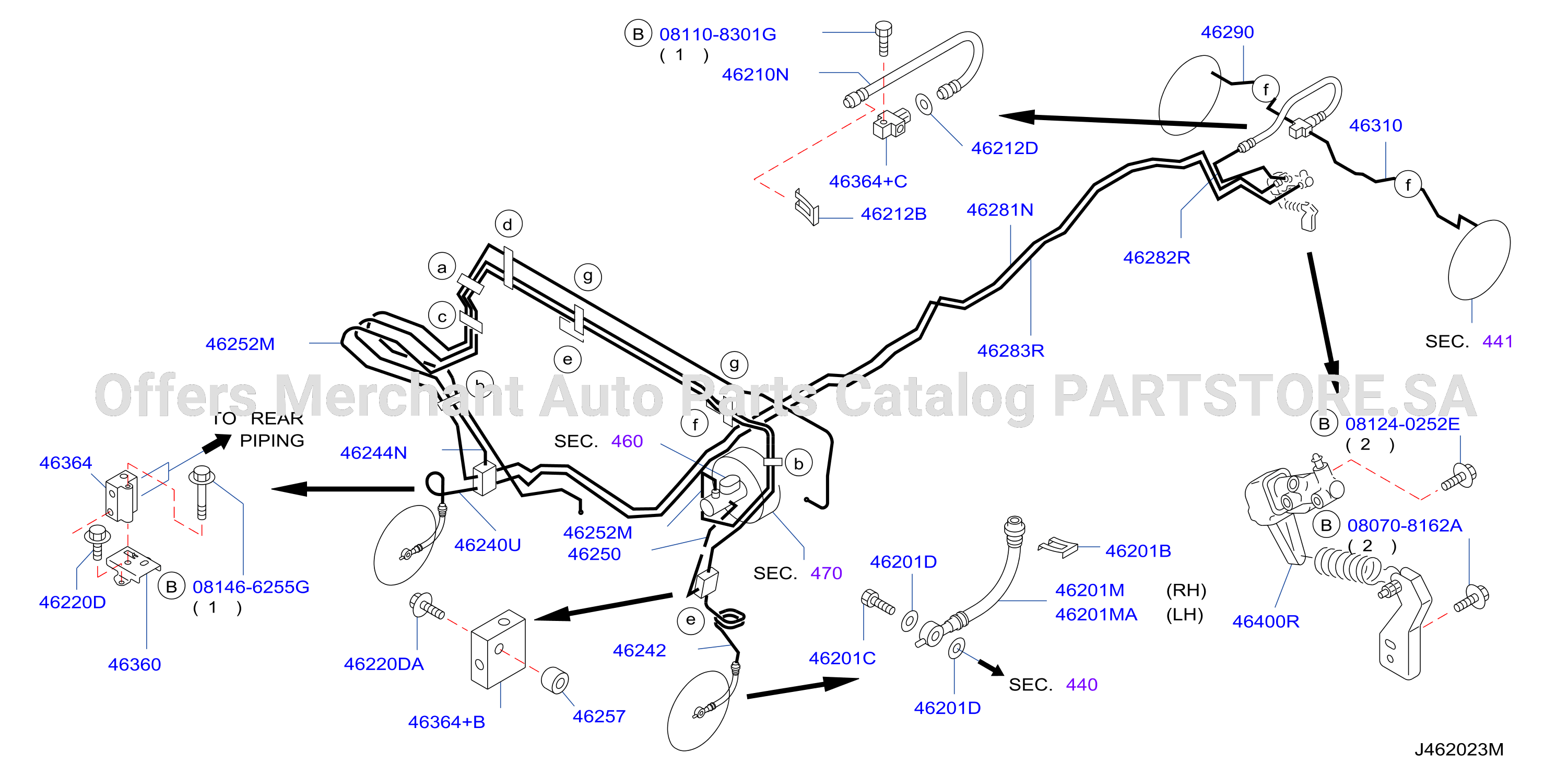

Brake Piping Control Piping 2Wd Option
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462A-002-01 | Brake Piping Control Piping 2Wd Option | 2009 - ... |
AXLE RATIO: 2WD/LNG
BODY: DCAB
ENGINE: KA24
|
Parts in this diagram 40
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0143600731 | 46220DA | SCREW | |||
| 0145600211 | 46220D | SCREW | |||
| 0246234000 | 46364+B | CONNECTOR - BRAKE TUBE | |||
| 080708162A | 080708162A | BOLT - HEX | |||
| 081108301G | 081108301G | BOLT - HEX | |||
| 081240252E | 081240252E | BOLT - HEX | |||
| 081466255G | 081466255G | BOLT - HEX | |||
| 462062J00A | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 462102S51A | 46210N | HOSE ASSY - BRAKE | |||
| 462102S51C | 46210N | HOSE ASSY - BRAKE |
