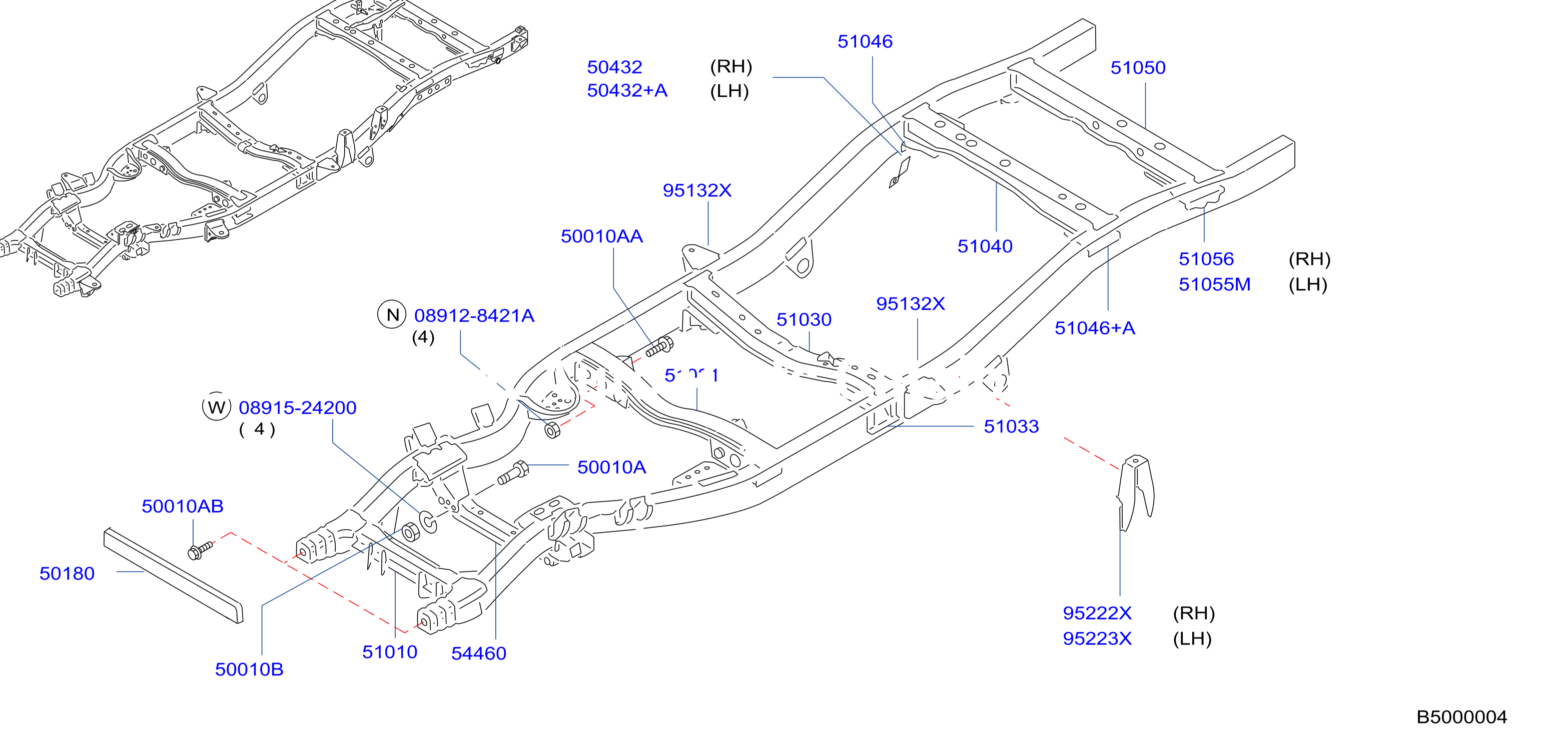

Frame Frame Assy Cross Member
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 500C-002-01 | Frame Frame Assy Cross Member | 2003 - 2005 |
BODY: SC
|
No illustration for this section
The full parts list is available below
Parts in this diagram 29
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 011250018U | 50010A | BOLT | |||
| 0112503161 | 50010AB | BOLT | |||
| 0122500491 | 50010B | NUT | |||
| 089128421A | 089128421A | NUT - HEX | |||
| 0891524200 | 0891524200 | WASHER - SPRING | |||
| 501807Z022 | 50180 | MEMBER ASSY - CROSS, FRONT SIDE EXTENSION | |||
| 504327Z030 | 50432 | BRACKET - REAR STABILIZER MOUNTING | |||
| 504337Z030 | 50432+A | BRACKET - REAR STABILIZER MOUNTING | |||
| 510106S330 | 51010 | MEMBER ASSY - 1ST CROSS | |||
| 510107Z030 | 51010 | MEMBER ASSY - 1ST CROSS |
of
3
